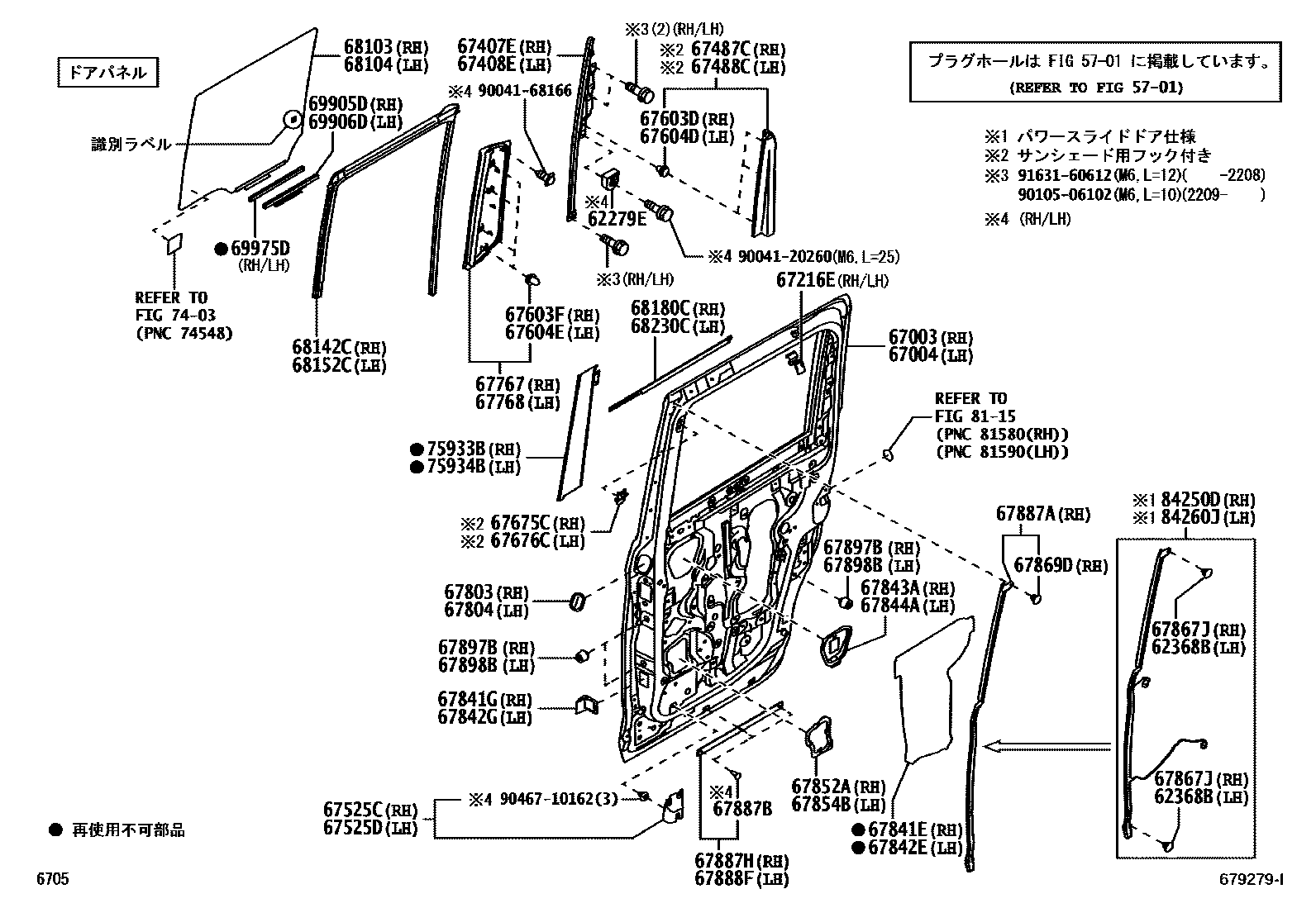

REAR DOOR PANEL & GLASS
5701
62279ESPACER, SIDE WINDOW FRAME
62368BCLIP, DOOR WINDOW GLASS, REAR LH
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67216ESTOPPER, REAR DOOR GLASS, UPPER NO.2
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67487CSEAL, REAR DOOR REAR GUIDE, RH
67488CSEAL, REAR DOOR REAR GUIDE, LH
67525CCOVER, SLIDE DOOR PANEL, LOWER RH
67525DCOVER, SLIDE DOOR PANEL, LOWER LH
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
BLACK,TRIM4#
BLACK,TRIM1#
BLACK,TRIM2#
BLACK,TRIM4#
BLACK,TRIM1#
67603DRETAINER, REAR DOOR TRIM, RH
67603FRETAINER, REAR DOOR TRIM, NO.2 RH
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
BLACK,TRIM4#
BLACK,TRIM1#
BLACK,TRIM2#
67604DRETAINER, REAR DOOR TRIM, LH
67604ERETAINER, REAR DOOR TRIM, NO.2 LH
67675CGARNISH, REAR DOOR FRAME, NO.2 RH
67676CGARNISH, REAR DOOR FRAME, NO.2 LH
67767MOULDING, REAR DOOR TRIM UPPER, RH
67768MOULDING, REAR DOOR TRIM UPPER, LH
67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH
67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67841GCOVER, SLIDE DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67842GCOVER, SLIDE DOOR SERVICE HOLE, LH
67843ACOVER, REAR DOOR SERVICE HOLE, NO.2
67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH
67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2
67854BCOVER, SLIDE DOOR SERVICE HOLE, NO.3
67867JCLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR)
67869DCLIP, DOOR WEATHERSTRIP
67887AWEATHERSTRIP, REAR DOOR, NO.2 RH
67887BCLIP(FOR REAR DOOR WEATHERSTRIP)
67887HWEATHERSTRIP, REAR DOOR, NO.2 RH
67888FWEATHERSTRIP, REAR DOOR, NO.2 LH
67897BCUSHION, REAR DOOR, RH
67898BCUSHION, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH
68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH
69905DCHANNEL SUB-ASSY, SLIDE DOOR GLASS, RH
69906DCHANNEL SUB-ASSY, SLIDE DOOR GLASS, LH
69975DFILLER, REAR DOOR GLASS CHANNAL
7403
75933BTAPE, BLACK OUT, OUTER FRONT RH
TUYAKESI BLACK DUMMYCOLOR,B67 ,B82 ,G57 ,R59 ,R67 ,R72 ,S28 ,W24 ,X96 ,X99 ,XE2 ,XG3 ,XG4 ,XG5 ,XG6 ,Y14
TUYAKESI BLACK DUMMYCOLOR,B67 ,B82 ,G57 ,R59 ,R67 ,R72 ,S28 ,T33 ,W24 ,X96 ,X99 ,XE2 ,XG2 ,XG3 ,XG4 ,XG5
TUYAKESI BLACK DUMMYCOLOR,B67 ,B82 ,G57 ,R59 ,R67 ,R72 ,S28 ,T33 ,W24
TUYAKESI BLACK DUMMYCOLOR,B67 ,B82 ,G57 ,R59 ,R67 ,R72 ,S28 ,W24 ,Y14
TUYAKESI BLACK DUMMYCOLOR,B82 ,B86 ,P19 ,R59 ,R67 ,S28 ,T33 ,W24 ,X96 ,X99 ,XG2 ,XG3 ,XH6
75934BTAPE, BLACK OUT, OUTER FRONT LH
TUYAKESI BLACK DUMMYCOLOR,B67 ,B82 ,G57 ,R59 ,R67 ,R72 ,S28 ,W24 ,X96 ,X99 ,XE2 ,XG3 ,XG4 ,XG5 ,XG6 ,Y14
TUYAKESI BLACK DUMMYCOLOR,B67 ,B82 ,G57 ,R59 ,R67 ,R72 ,S28 ,T33 ,W24 ,X96 ,X99 ,XE2 ,XG2 ,XG3 ,XG4 ,XG5
TUYAKESI BLACK DUMMYCOLOR,B67 ,B82 ,G57 ,R59 ,R67 ,R72 ,S28 ,T33 ,W24
TUYAKESI BLACK DUMMYCOLOR,B67 ,B82 ,G57 ,R59 ,R67 ,R72 ,S28 ,W24 ,Y14
TUYAKESI BLACK DUMMYCOLOR,B82 ,B86 ,P19 ,R59 ,R67 ,S28 ,T33 ,W24 ,X96 ,X99 ,XG2 ,XG3 ,XH6
8115
84250DSENSOR ASSY, POWER SLIDE DOOR, RH
84260JSENSOR ASSY, POWER SLIDE DOOR, LH
9004120260
9004168166
9010506102
9046710162
9163160612
60 parts on this diagram · 2 diagrams in section
