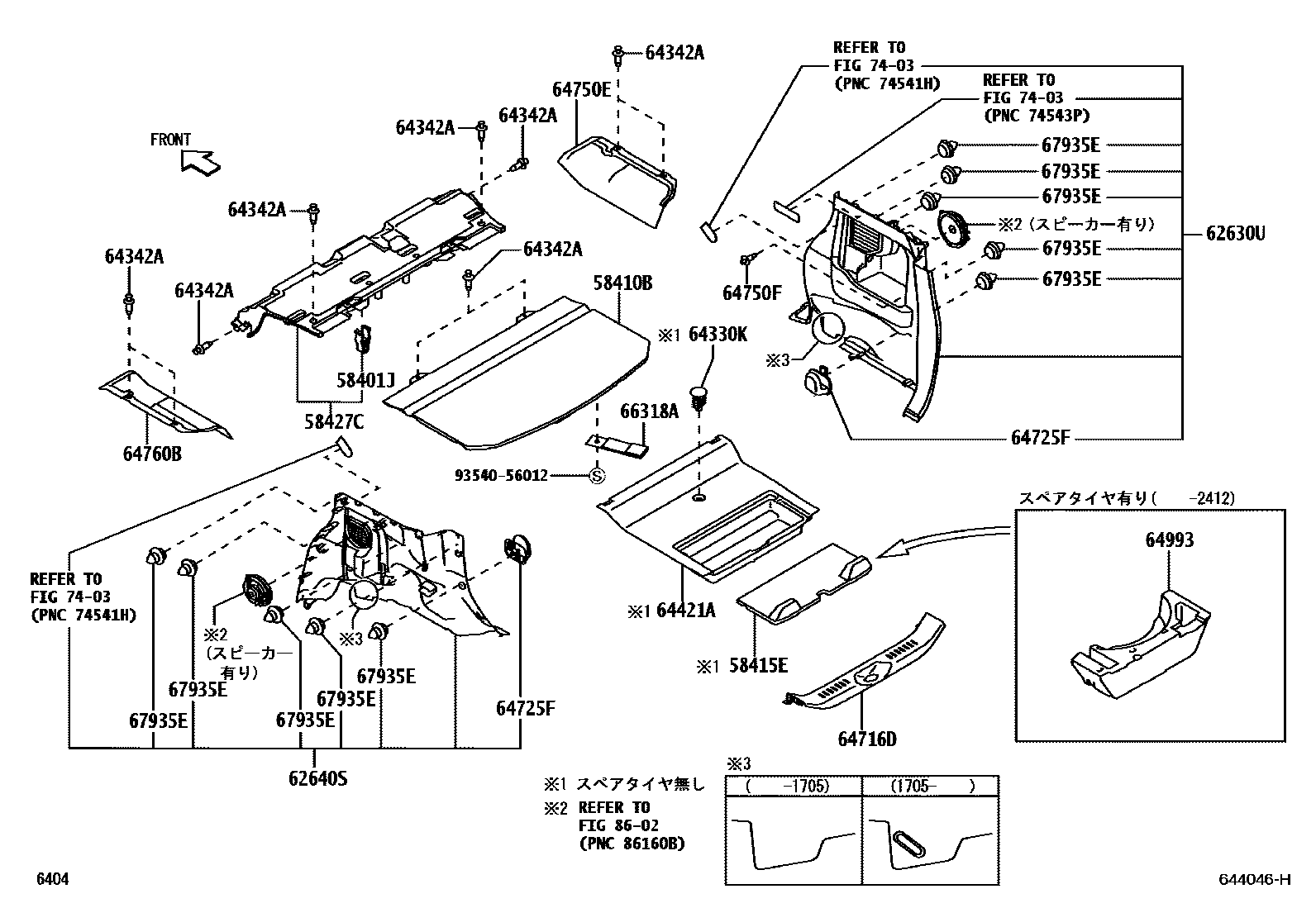

DECK BOARD & DECK TRIM COVER
58401JCLIP(FOR DECK BOAD)
58415EBOARD, REAR FLOOR, NO.1
BLACK,TRIM1#
BLACK,TRIM4#
BLACK,TRIM2#
58427CSPACER, REAR FLOOR BOARD
BLACK,TRIM1#
BLACK,TRIM4#
BLACK,TRIM2#
62630UPANEL ASSY, QUARTER TRIM, REAR RH
62640SPANEL ASSY, QUARTER TRIM, REAR LH
64330KCLIP(FOR PACKAGE TRAY TRIM PANEL)
BLACK,TRIM2#
BLACK,TRIM4#
BLACK,TRIM1#
64342ACLIP
64421ATRAY, LUGGAGE COMPARTMENT
BLACK,TRIM1#
BLACK,TRIM4#
BLACK,TRIM2#
64716DCOVER, DECK TRIM, REAR
BLACK,TRIM1#
BLACK,TRIM4#
BLACK,TRIM2#
64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM1#
BLACK,TRIM4#
BLACK,TRIM2#
64750ECARPET SUB-ASSY, DECK TRIM SIDE, RH
DK GRAY,TRIM1#
DK GRAY,TRIM4#
DK GRAY,TRIM2#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64760BCARPET SUB-ASSY, DECK TRIM SIDE, LH
DK GRAY,TRIM1#
DK GRAY,TRIM4#
DK GRAY,TRIM2#
64993BOX, DECK FLOOR, REAR
main64993-B1010
66318ABAND, ROPE HOOK
67935ERETAINER, DOOR TRIM
7403
8602
9354056012
main93540-56012
20 parts on this diagram · 2 diagrams in section
