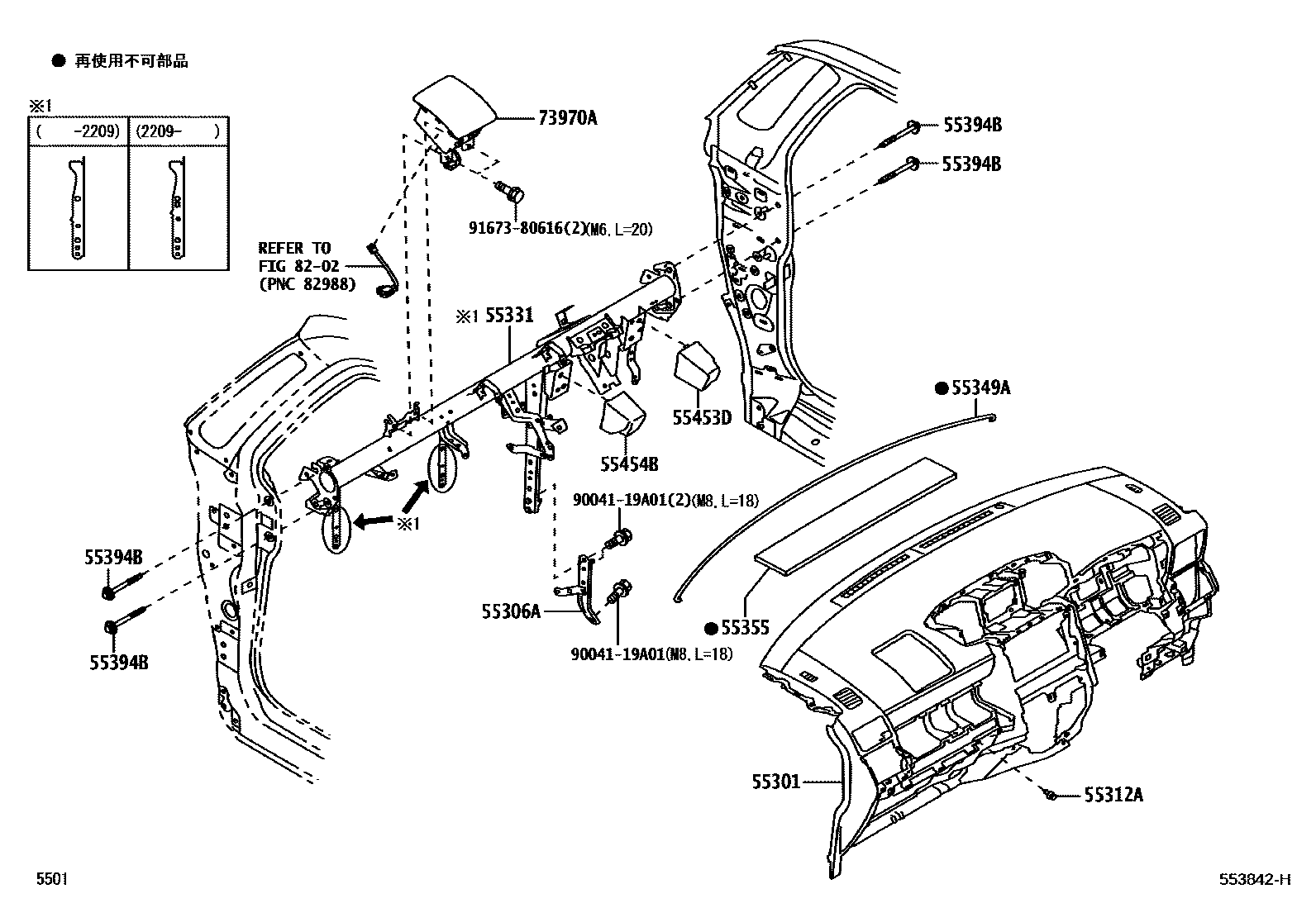

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-B1130-C0iM900,910201611-202009

BLACK,TRIM1#

main55311-B1130-C0iM900,910..G,X202009

BLACK,TRIM4#

main55311-B1130-C0iM900,910..G,X202009

BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-B1010iM900,910¥2,270201611-202009

55312ACLIP, INSTRUMENT PANEL

main90044-67609-C0iM900,910201611-202009

BLACK,TRIM1#

sub90044-67609¥110

main90044-67609-C0iM900,910..G,X202009

BLACK,TRIM4#

sub90044-67609¥110

main90044-67609-C0iM900,910..G,X202009

BLACK,TRIM2#

sub90044-67609¥110

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-B1140iM900,910¥16,300201611-201811

sub55305-B1160¥16,300

main55305-B1160iM900,910¥16,300201811-202009

main55305-B1180iM900,910¥16,300202009-202209

main55305-B1181iM900,910¥14,800202209

55349ACUSHION, INSTRUMENT PANEL

main55349-B1050iM900,910¥330201611-202009

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-B1120iM900,910¥1,200201611-202110

sub55355-B1190¥1,090

main55355-B1190iM900,910¥1,090202111

55394BBOLT, INSTRUMENT PANEL

main90041-19A03iM900,910¥190201611-202009

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-B1090iM900,910¥1,440201611-202009

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-B1090iM900,910¥1,440201611-202009

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-B1110-C0iM900,910201611-202009

BLACK,TRIM1#

main73970-B1110-C0iM900,910..G,X202009

BLACK,TRIM4#

main73970-B1110-C0iM900,910..G,X202009

BLACK,TRIM2#

8202

9004119A01

main90041-19A01¥150

9167380616

main91673-80616¥60

13 parts on this diagram · 6 diagrams in section
