FLOOR SIDE MEMBER
51401CBRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51403DBRACKET SUB-ASSY, ENGINE REAR MOUNTING
51963GHOOK, TRANSPORT, FRONT RH
51964GHOOK, TRANSPORT, FRONT LH
52141FARM, FRONT BUMPER, RH
52142GARM, FRONT BUMPER, LH
5304
53213DSUPPORT, RADIATOR, UPPER RH
53214CSUPPORT, RADIATOR, UPPER LH
5701
57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57032ABRACKET SUB-ASSY, NO.7 BODY MOUNTING, LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57111MEMBER, FRONT SIDE, RH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH
57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH
57181BPLATE, FRONT SIDE MEMBER, NO.3 RH
57182BPLATE, FRONT SIDE MEMBER, NO.3 LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
53755B1030RETAINER, FRONT FRAME SUPPORT
main53755-B1030
53756B1030WEATHERSTRIP, FRONT FENDER APRON TO FRAME, NO.1
main53756-B1030
57125B1010BRACKET, FRONT SIDE MEMBER, RH
main57125-B1010
57126B1010BRACKET, FRONT SIDE MEMBER, LH
main57126-B1010
9004874013
main90048-74013
9155180612
main91551-80612
9155380816
main91553-80816

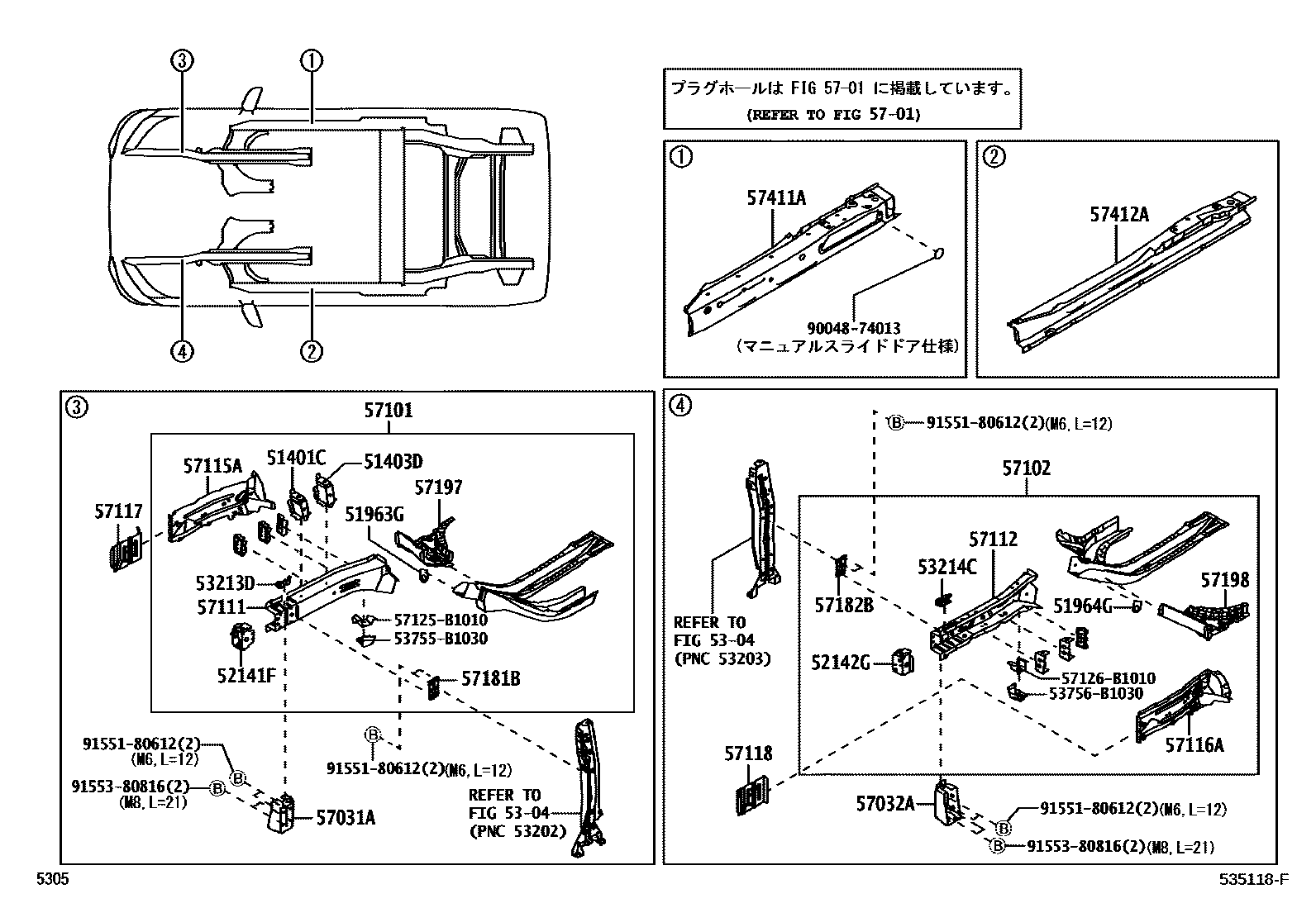

33 parts on this diagram · 3 diagrams in section
