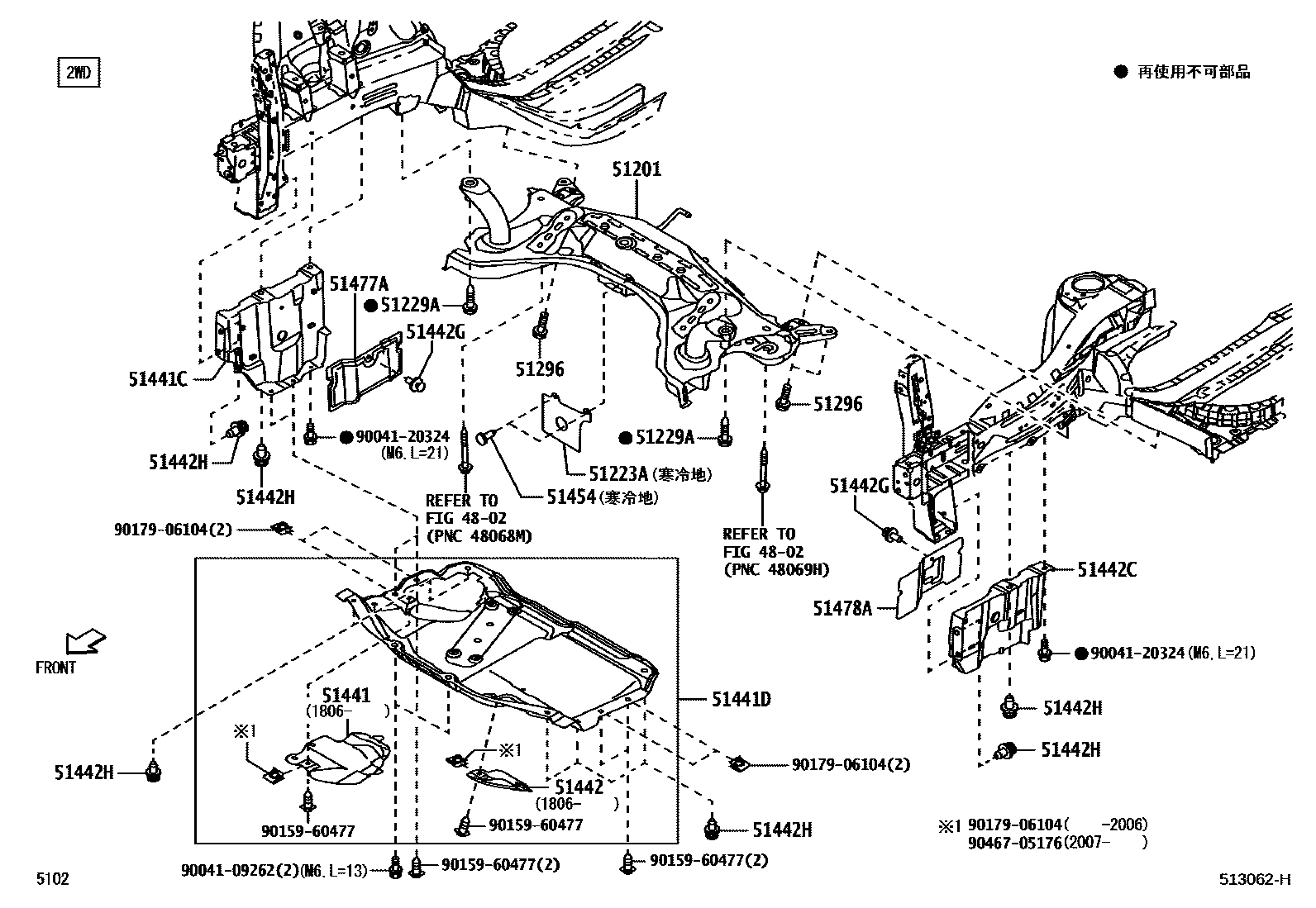

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

4802

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-B1023iM910201611-202502

main51201-B1160iM900201611-202501

51223ACOVER, ENGINE MOUNTING HOLE

main51223-B1010iM900201611-202009

51229ABOLT, FRONT SUSPENSION MEMBER MOUNTING

main90041-01638iM900,910201611-202009

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main90041-19948iM910201611-202009

51441COVER, ENGINE UNDER, NO.1

main51453-B1020iM900,910201806-202009

51441CCOVER, ENGINE UNDER, RH

main51441-B1090iM900,910201611-202009

51441DCOVER, ENGINE UNDER

main51405-B1010iM900,910201611-201805

sub51405-B1020

main51405-B1020iM900,910201806-202009

main51405-B1040iM900,910202009

51442COVER, ENGINE UNDER, NO.2

main51454-B1020iM900,910201806-202009

51442CCOVER, ENGINE UNDER, LH

main51442-B1070iM900,910201611-202009

51442GCLIP, ENGINE UNDER COVER, NO.1

main90044-67617iM900,910201611-202009

51442HCLIP, ENGINE UNDER COVER, NO.2

main90044-68320iM900,910201611-201907

sub90044-68378

main90044-68378iM900,910201908-202009

51454CLIP

main90044-67517iM900201611-202009

51477ASILENCER, ENGINE UNDER COVER, RH

main51477-B1010iM900,910201611-202009

51478ASILENCER, ENGINE UNDER COVER, LH

main51478-B1010iM900,910201611-202009

9004109262

main90041-09262

9004120324

main90041-20324

9015960477

main90159-60477

9017906104

main90179-06104

9046705176

main90467-05176

20 parts on this diagram · 2 diagrams in section
