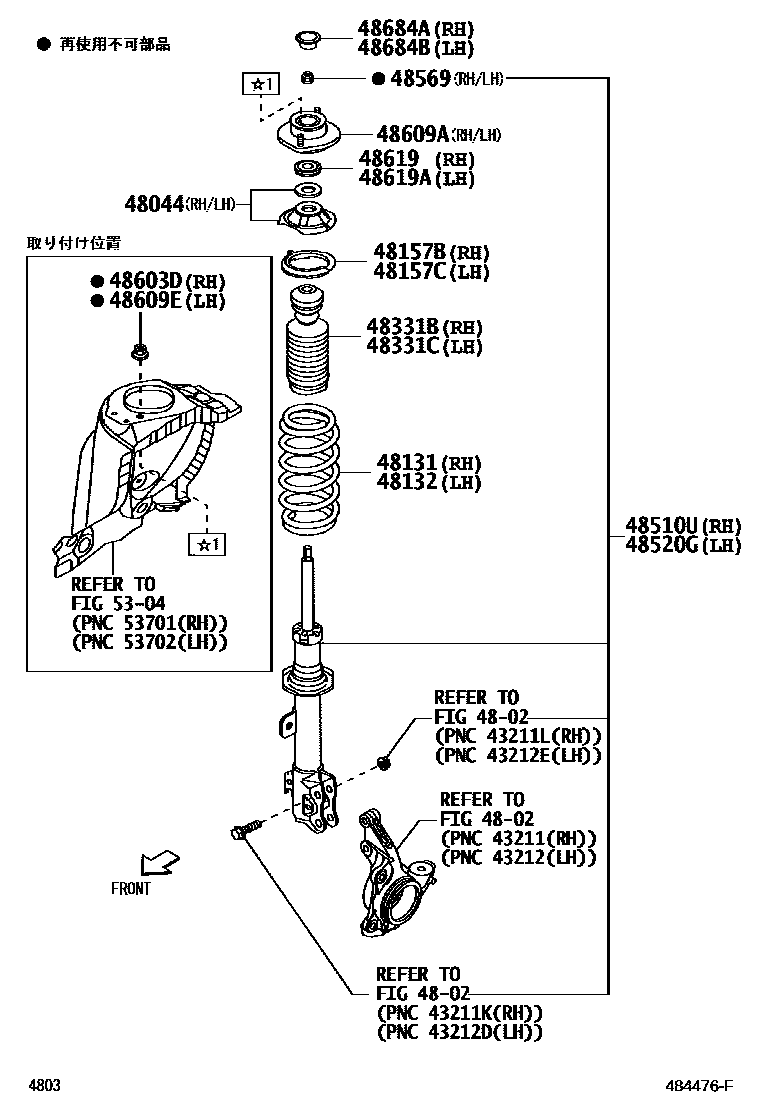

FRONT SPRING & SHOCK ABSORBER
4802
48044SEAT SUB-ASSY, FRONT SPRING, NO.1
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510UABSORBER SET, SHOCK, FRONT RH
48520GABSORBER SET, SHOCK, FRONT LH
48569NUT, SHOCK ABSORBER PISTON
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48619BEARING, STRUT MOUNTING, RH
48619ABEARING, STRUT MOUNTING, LH
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
5304
19 parts on this diagram · 2 diagrams in section
