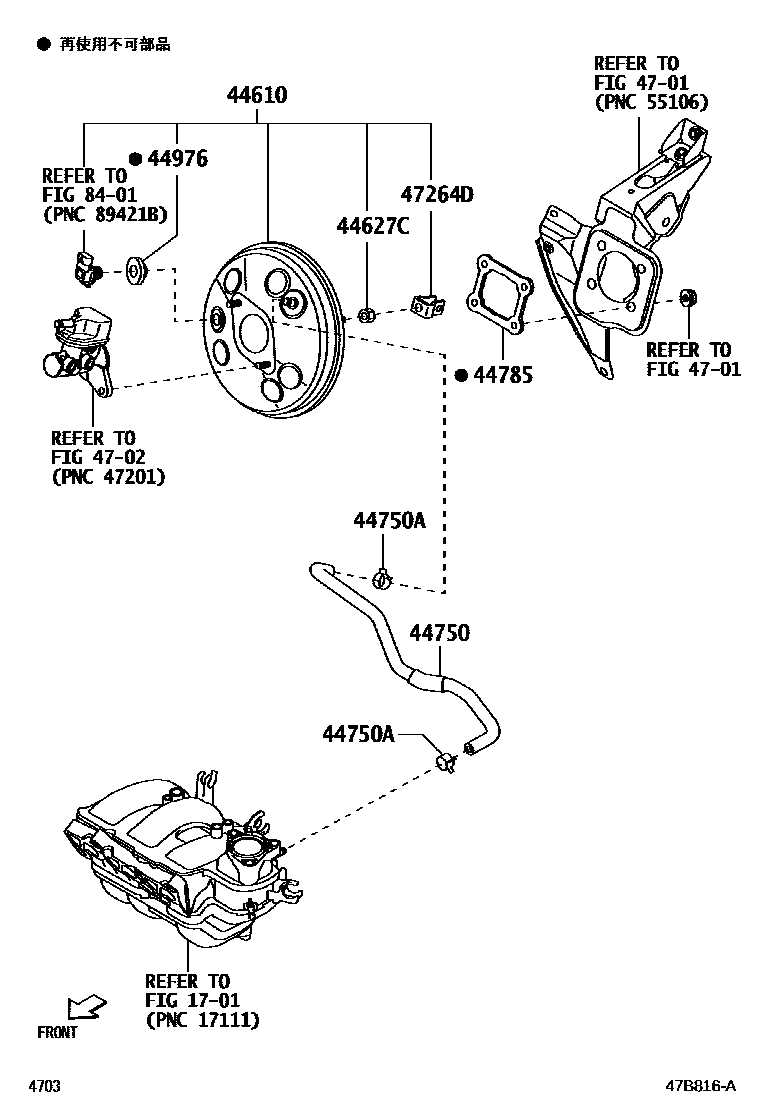

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701

44610BOOSTER ASSY, BRAKE

main44610-B1230iM900,910201611-201901

sub44610-B1231

main44610-B1231iM900,910201902-202009

44627CNUT, BOOSTER SLEEVE CYLINDER

main94130-01002iM900,910201611-202009

44750HOSE ASSY, VACUUM

main44750-B1130iM900,910..NTBO201611-202009

main44750-B1140iM900..TBO201611-202009

44750ACLIP(FOR VACUUM HOSE ASSY)

main90044-67161iM900,910201611-202009

44785GASKET, BRAKE BOOSTER

main47278-87703iM900,910201611-202009

44976SEAL, BOOSTER

main44685-B2010iM900,910201611-202009

4701

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-B1010iM900,910201611-202009

8401

11 parts on this diagram · 2 diagrams in section
