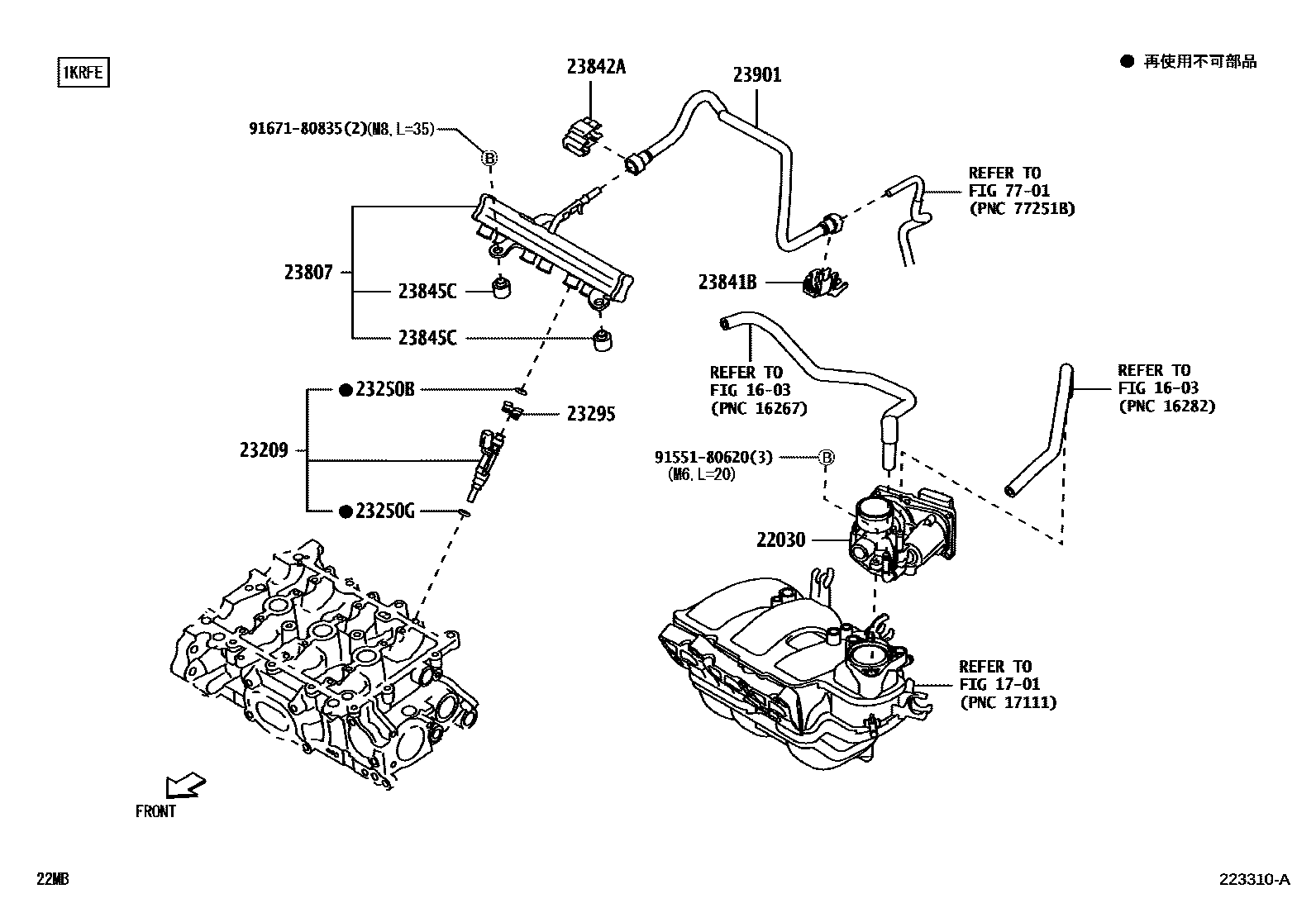

FUEL INJECTION SYSTEM

0001 1NTBO 0002 1TBO

1603

1701

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-B1030i1KRFE..M900,910201611-202009

main22030-B1040i1KRVET..M900201611-202009

main22030-B1040i1KRVET..M900202009-202305

main22030-B1041i1KRVET..M900202305

23209INJECTOR SET, FUEL

main23209-B1040i1KRFE..M900,910201611-202009

main23209-B1050i1KRVET..M900201611-202009

23250BRING, O(FOR FUEL INJECTOR)

main90043-01349i1KR#..M900,910201611-202009

23250GRING, O, NO.2(FOR FUEL INJECTOR)

main90043-01372i1KR#..M900,910201611-202009

23295HOLDER, INJECTOR, NO.1

main23295-B1010i1KR#..M900,910201611-202009

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-B1030i1KRFE..M900,910201611-202009

main23807-B1060i1KRVET..M900201611-202009

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-B1010i1KR#..M900,910201611-202009

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-B5010i1KR#..M900,910201611-202009

23845CINSULATOR, FUEL PIPE

main23845-40010i1KR#..M900,910201611-202009

23901TUBE SUB-ASSY, FUEL

main23901-B1040i1KRFE..M900,910201611-202009

main23901-B1060i1KRVET..M900201611-202009

7701

9155180620

main91551-80620

9167180835

main91671-80835

15 parts on this diagram · 2 diagrams in section
