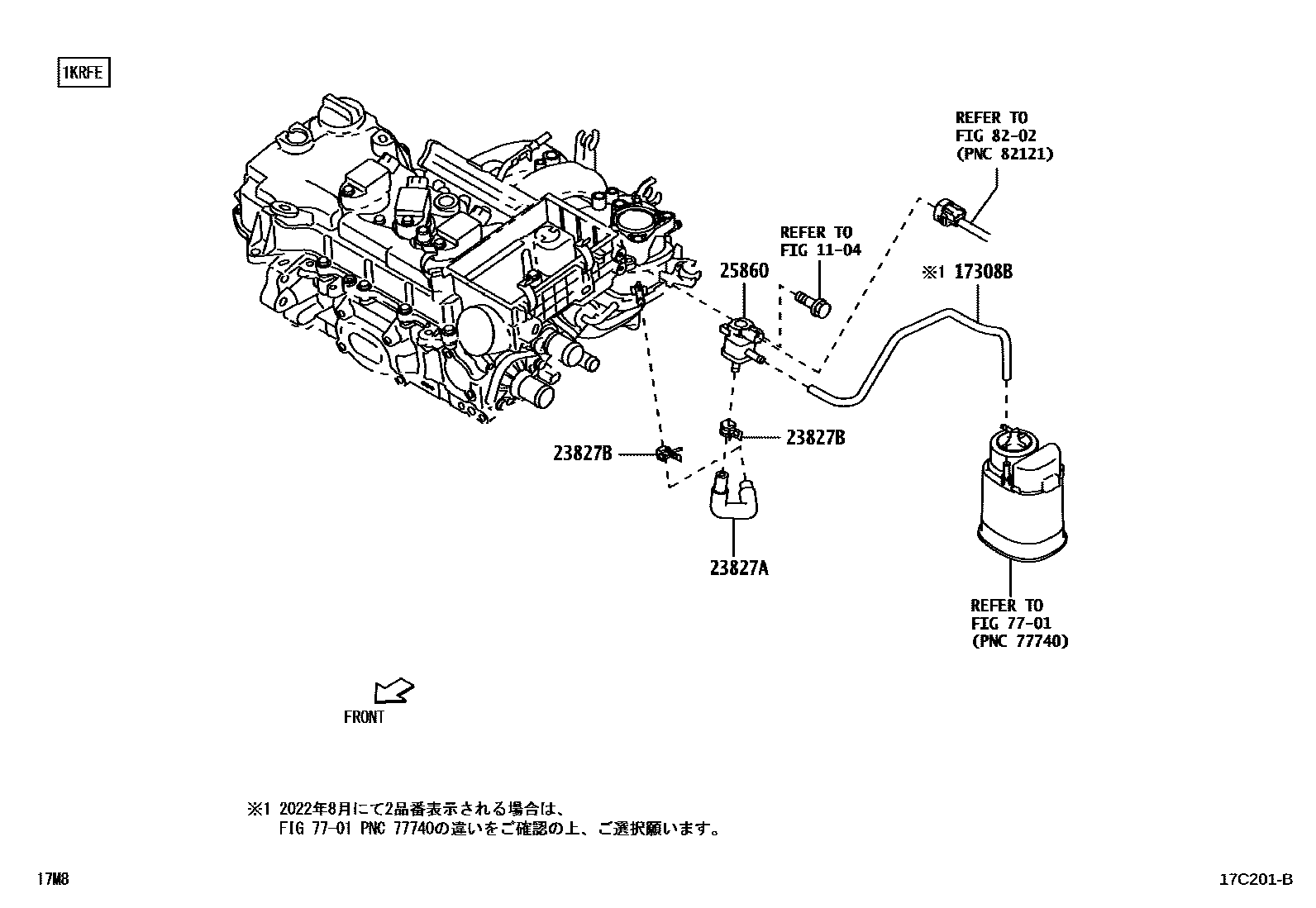

VACUUM PIPING

0001 1 0002 1

1104

17308BHOSE SUB-ASSY, VACUUM

main77754-B1150i1KRFE..M900,910201611-202208

main77754-B1170i1KRVET..M900201611-202208

main77754-B1210i1KRFE..M900,910202208

main77754-B1220i1KRVET..M900202208

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-B1040i1KRFE..M900,910201611-202009

main23827-B1060i1KRVET..M900201611-202009

main23827-B1090i1KRVET..M900202009

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90044-67301i1KRVET..M900202101

main90467-13059i1KRVET..M900202009-202012

sub90467-13054

main96133-41301i1KRFE..M900,910201611-202009

main96135-41100i1KRVET..M900201611-202009

sub96135-51100

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-B1050i1KR#..M900,910202007-202009

main90910-12280i1KR#..M900,910201611-202006

main90910-12282i1KR#..M900,910202009

7701

8202

7 parts on this diagram · 2 diagrams in section
