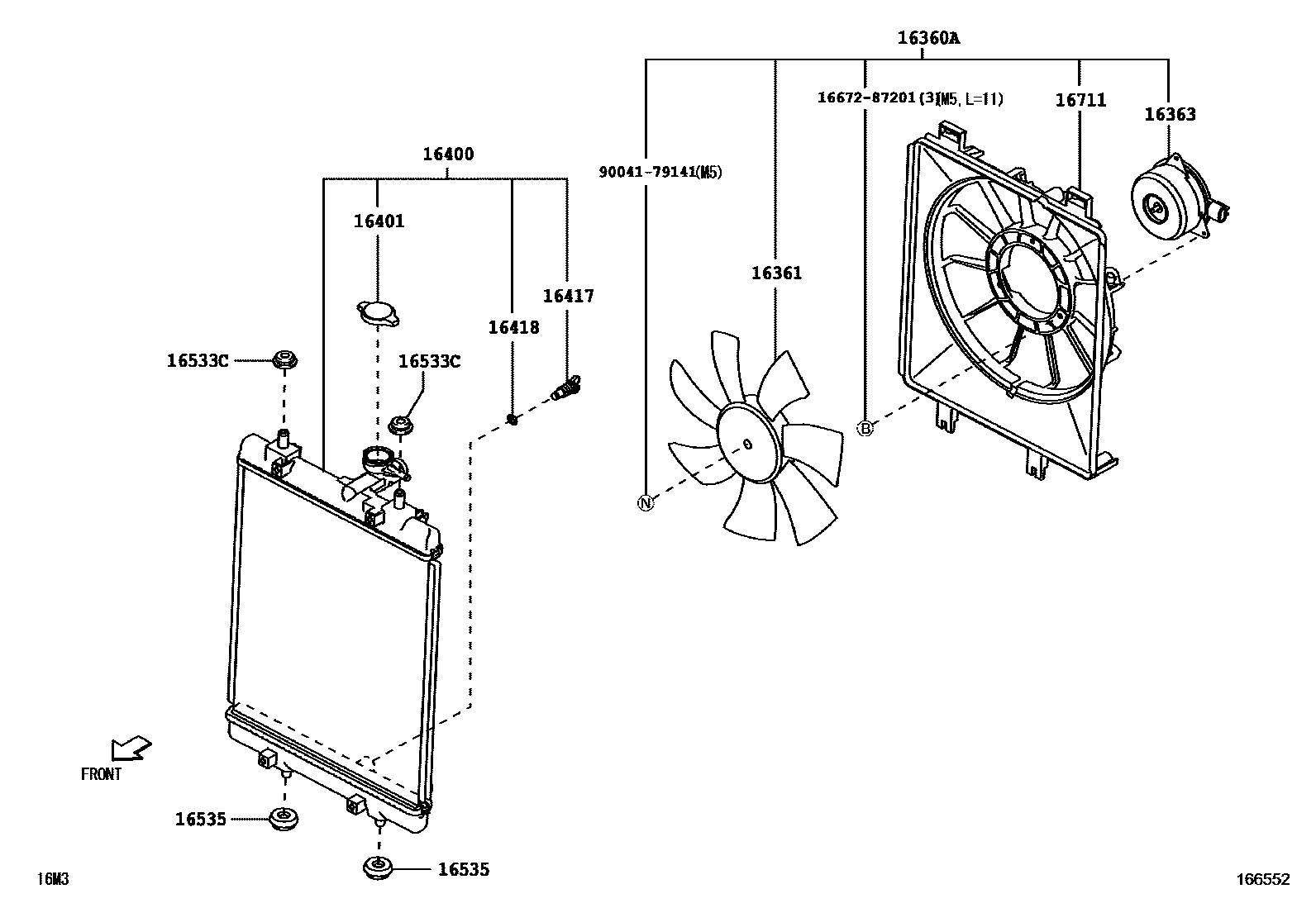

RADIATOR & WATER OUTLET

0001 1������ 0002 1���,��������� 0003 1���,��������� 0004 1���,��������� 0005 1���,���������

16360AFAN ASSY, W/MOTOR

main16360-B1060i1KR#..M900,910201611-202009

main16360-B1061i1KR#..M900,910202306

16361FAN

main16361-B2080i1KR#..M900,910201611-202009

16363MOTOR, COOLING FAN

main16363-B1090i1KR#..M900,910201611-202009

16400RADIATOR ASSY

main16400-B1460i1KRFE..M900,910201611-202009

main16400-B1470i1KRVET..M900201611-202009

16401CAP SUB-ASSY, RADIATOR

main16401-B5070i1KR#..M900,910201611-202009

16417COCK

main16417-30170i1KR#..M900,910201611-202009

16418PACKING

main16418-87503i1KR#..M900,910201611-202009

16533CGROMMET(FOR RADIATOR SUPPORT)

main90044-80621×2i1KR#..M900,910201611-202009

16535SUPPORT, RADIATOR, LOWER

main90044-80592×2i1KR#..M900,910201611-202009

16711SHROUD, FAN

main16711-B1080i1KR#..M900,910201611-202009

1667287201

main16672-87201

9004179141

main90041-79141

12 parts on this diagram · 5 diagrams in section
