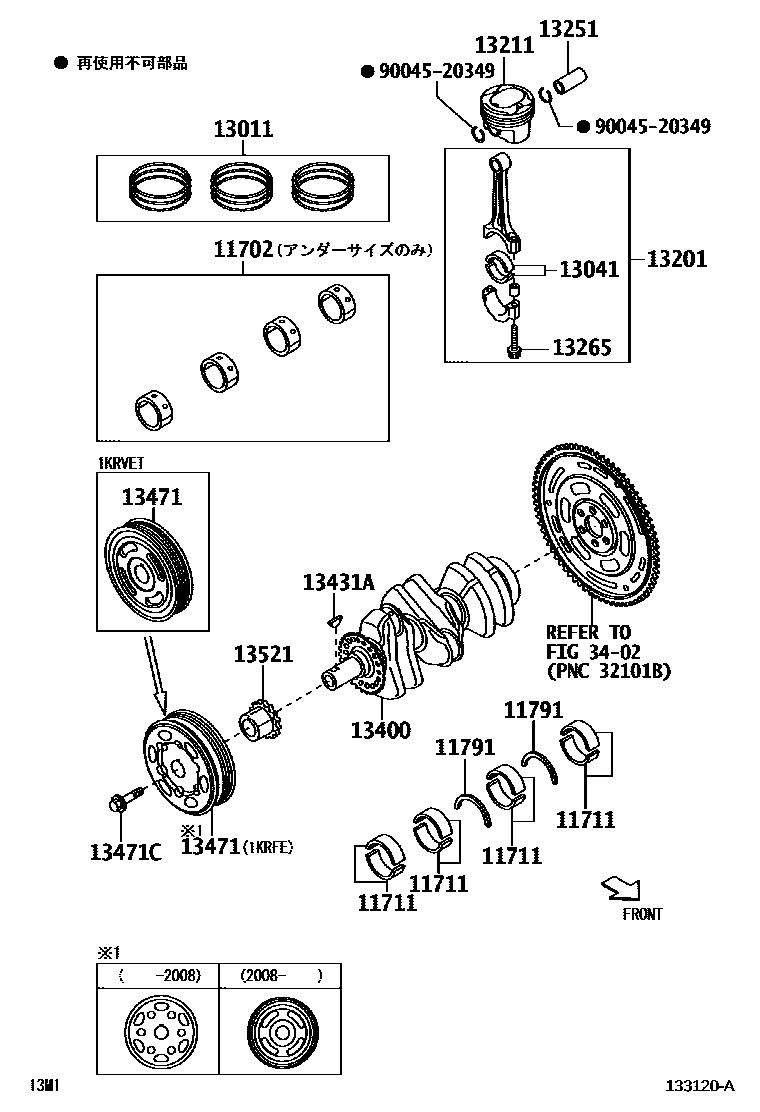

CRANKSHAFT & PISTON

11702BEARING SET, CRANKSHAFT

main11704-40040i1KR#..M900,910201611-202009

11711BEARING, CRANKSHAFT

main11701-40040-02i1KR#..M900,910201611-202009

main11701-40040-03i1KR#..M900,910201611-202009

main11701-40040-04i1KR#..M900,910201611-202009

main11701-40040-05i1KR#..M900,910201611-202009

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-40040i1KR#..M900,910201611-202009

main11792-40040i1KR#..M900,910201611-202009

main11793-40040i1KR#..M900,910201611-202009

13011RING SET, PISTON

main13011-40070i1KR#..M900,910201611-202009

13041BEARING, CONNECTING ROD

main13041-40032-01i1KR#..M900,910201611-202009

main13041-40032-02i1KR#..M900,910201611-202009

main13041-40032-03i1KR#..M900,910201611-202009

13201ROD SUB-ASSY, CONNECTING

main13201-B9110-0Xi1KR#..M900,910201611-202009

main13201-B9110-0Yi1KR#..M900,910201611-202009

main13201-B9110-0Zi1KR#..M900,910201611-202009

13211PISTON

main13211-B1110-0Xi1KRFE..M900,910201611-202009

main13211-B1110-0Yi1KRFE..M900,910201611-202009

main13211-B1110-0Zi1KRFE..M900,910201611-202009

main13211-B1120-XXi1KRVET..M900201611-202009

main13211-B1120-YYi1KRVET..M900201611-202009

main13211-B1120-ZZi1KRVET..M900201611-202009

13251PIN, PISTON

main13251-B1020-0Xi1KR#..M900,910201611-202009

main13251-B1020-0Yi1KR#..M900,910201611-202009

main13251-B1020-0Zi1KR#..M900,910201611-202009

13265BOLT, CONNECTING ROD

main13265-21020i1KR#..M900,910201611-202009

13400CRANKSHAFT ASSY

main13401-40060i1KR#..M900,910201611-202009

13431AKEY, WOODRUFF(FOR DISTRIBUTOR DRIVE GEAR)

main90280-04001i1KR#..M900,910201611-202009

13471PULLEY, CRANKSHAFT

main13470-40050i1KRVET..M900201611-202009

main13470-B1040i1KR#..M900,910202008-202009

main13471-40060i1KRFE..M900,910201611-202008

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-14106i1KR#..M900,910201611-202009

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-40020i1KR#..M900,910201611-202009

3402

9004520349

main90045-20349

16 parts on this diagram · 1 diagram in section
