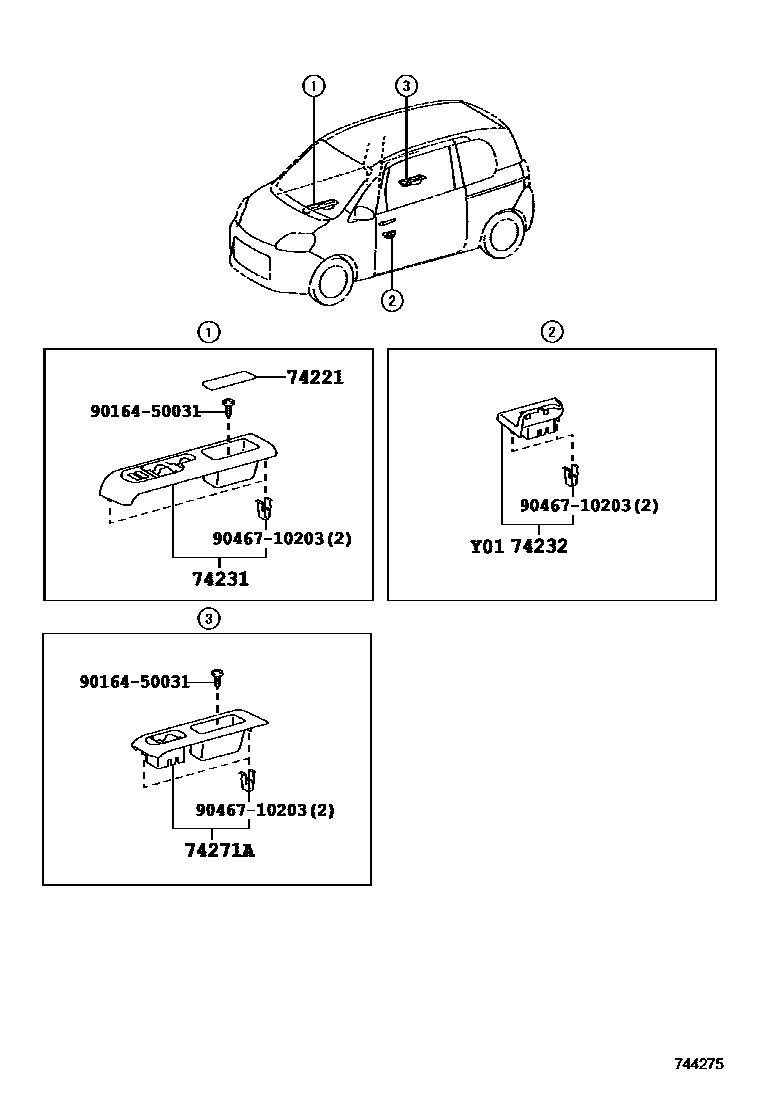

ARMREST & VISOR

0001 1������ 0002 1����� & ����������

74221COVER, DOOR ARMREST, RH

main74221-52040iNCP145,NSP141..CBU201507

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-52890-A0iNCP145,NSP141..PORTE..F..CBU201507

FROMAGE,TRIM0#,41

main74231-52890-C0iNCP145,NSP141..V,Y201507

BLACK,TRIM2#,4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-52760-C0iNCP145,NSP141..F..CBU201811

BLACK,TRIM2#,42

main74232-52760-D0iNCP145,NSP141..PORTE..F..CBU201507-201712

PINK,TRIM0#,41

main74232-52760-D1iNCP145,NSP141..PORTE..F..CBU201712-201907

BROOD ORANGE,TRIM41

main74232-52760-E0iNCP145..PORTE..F201207-201507

ORANGE,TRIM0#

main74232-52760-E1iNCP14#..PORTE..F..CBU201207-201507

PLUM,TRIM40,41,42

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-52330-C0iNCP145,NSP141..F..CBU201811

BLACK,TRIM2#,42

main74271-52330-E0iNCP14#..(F,Y)..CBU201207-201507

PLUM,TRIM0#,4#

9016450031

main90164-50031

9046710203

main90467-10203

6 parts on this diagram · 2 diagrams in section
