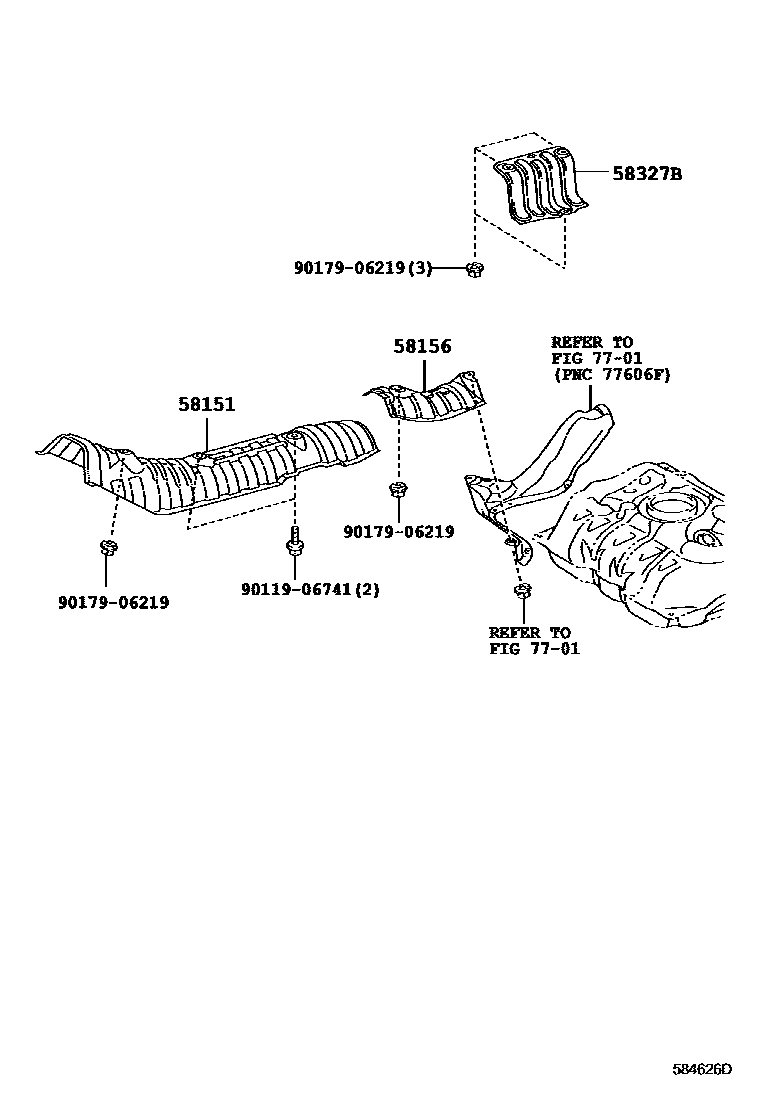

FLOOR INSULATOR

0001 1 0002 1 0003 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-52062iNCP141..CBU201207-201507

main58151-52071iNCP145..CBU201207-201507

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-52020iNCP141,NSP140..CBU201207-201507

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-52111iNCP141..CBU201207-201507

main58327-52151iNCP145..CBU201207-201507

7701

9011906741

main90119-06741

9017906219

main90179-06219

6 parts on this diagram · 3 diagrams in section
