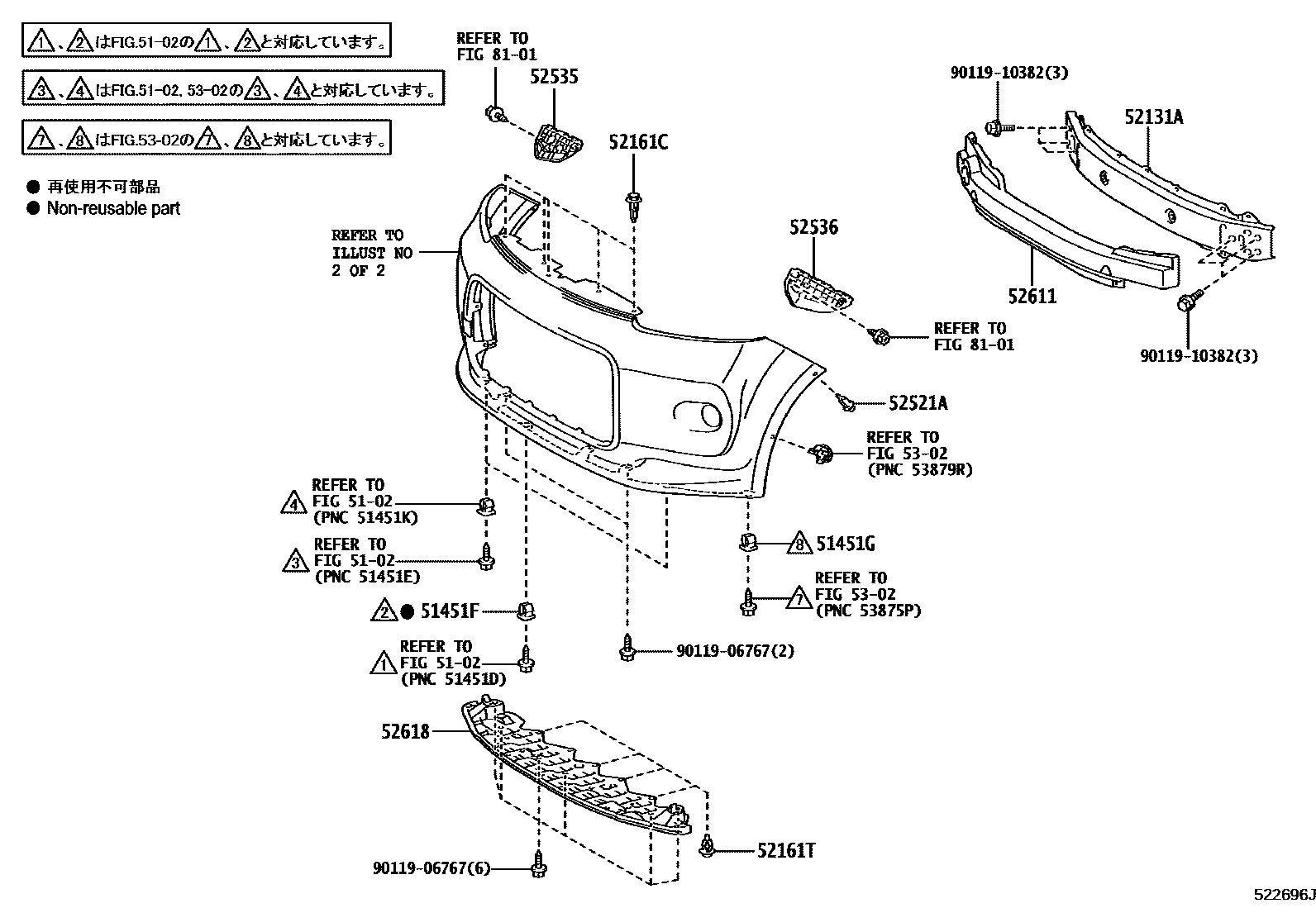

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

5102

51451FGROMMET, NO.1

main90189-06193iNCP14#,NSP140..CBU201207-201507

51451GGROMMET, NO.2

main90189-06193iNCP145,NSP141..CBU201207-201507

52131AREINFORCEMENT, FRONT BUMPER

main52131-52250iNCP145,NSP141..CBU201207-201507

52161CPIECE, FRONT BUMPER

main52161-16010iNCP145,NSP141..CBU201207-201507

52161TPIECE, FRONT BUMPER

main90467-10216iNCP14#,NSP140..CBU201207-201507

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05090-B1iNCP14#,NSP140..CBU201207-201302

DK.GRAY

sub90467-05090

main90467-05170iNCP145,NSP141..CBU201303-201507

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-52160iNCP14#,NSP140..SPADE..CBU201207-201507

main52535-52170iNCP14#,NSP140..PORTE..CBU201207-201507

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-52120iNCP14#,NSP140..SPADE..CBU201207-201507

main52536-52160iNCP145,NSP141..PORTE..CBU201207-201507

52611ABSORBER, FRONT BUMPER ENERGY

main52611-52091iNCP14#,NSP140..CBU201207-201507

52618ABSORBER, FRONT BUMPER, LOWER

main52618-52070iNCP14#,NSP140..CBU201207-201507

5302

8101

9011906767

main90119-06767

9011910382

main90119-10382

15 parts on this diagram · 4 diagrams in section
