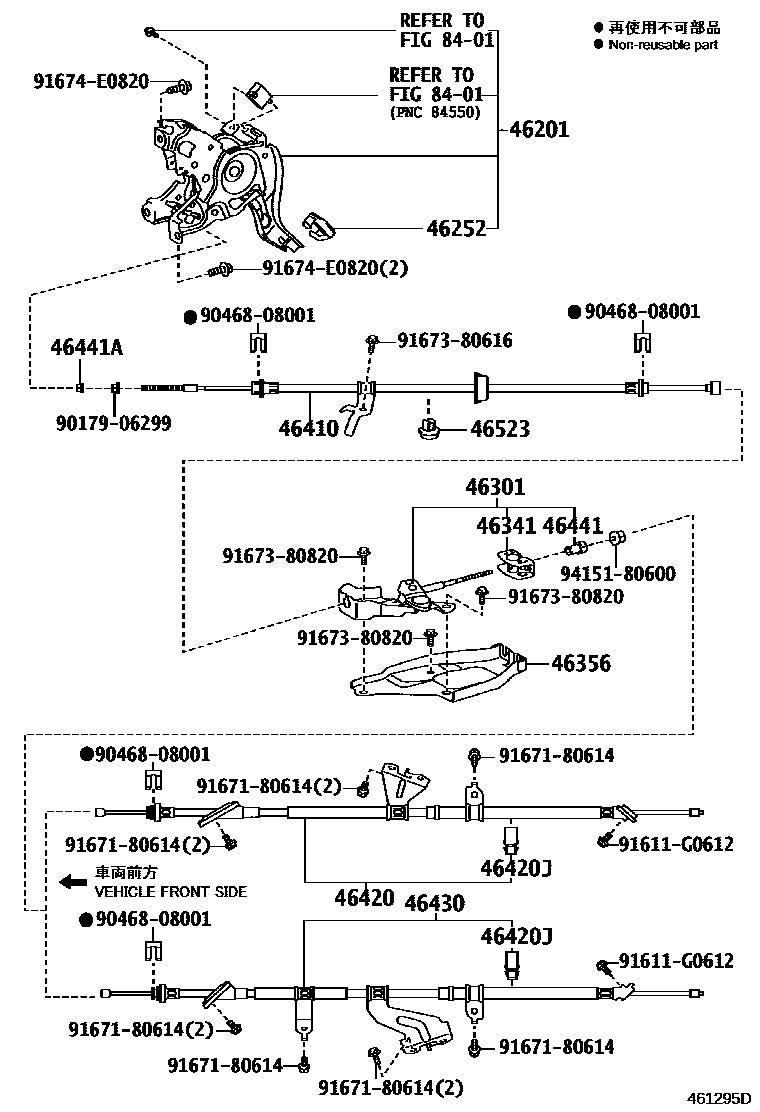

PARKING BRAKE & CABLE

0001 1 0002 1

46201PEDAL SUB-ASSY, PARKING BRAKE

main46210-52110iNCP14#,NSP140..CBU201207-201507

46252PAD, PARKING PEDAL

main46252-52020iNCP14#,NSP140..CBU201207-201507

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46320-52040iNCP14#,NSP140..CBU201207-201507

46341EQUALIZER, PARKING BRAKE

main46341-52010iNCP145,NSP141..CBU201207-201507

46356BRACKET, EQUALIZER SUPPORT

main46356-52020iNCP141,NSP140..CBU201207-201507

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-52090iNCP141,NSP140..CBU201207-201507

main46410-52100iNCP145..CBU201207-201507

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-52420iNSP141..CBU201207-201507

main46420-52430iNCP145..CBU201207-201507

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46402-52030iNCP14#,NSP140..CBU201207-201507

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-52420iNSP141..CBU201207-201507

main46430-52430iNCP145..CBU201207-201507

46441NUT, WIRE ADJUSTING, NO.1

main46441-52010iNCP14#,NSP140..CBU201207-201507

46441ANUT, WIRE ADJUSTING, NO.2

main46441-12010iNCP14#,NSP140..CBU201207-201507

46523GUIDE, PARKING BRAKE CABLE

main46465-52020iNCP141,NSP140..CBU201207-201507

8401

9017906299

main90179-06299

9046808001

main90468-08001

91611G0612

main91611-G0612

9167180614

main91671-80614

9167380616

main91673-80616

9167380820

main91673-80820

91674E0820

main91674-E0820

9415180600

main94151-80600

21 parts on this diagram · 2 diagrams in section
