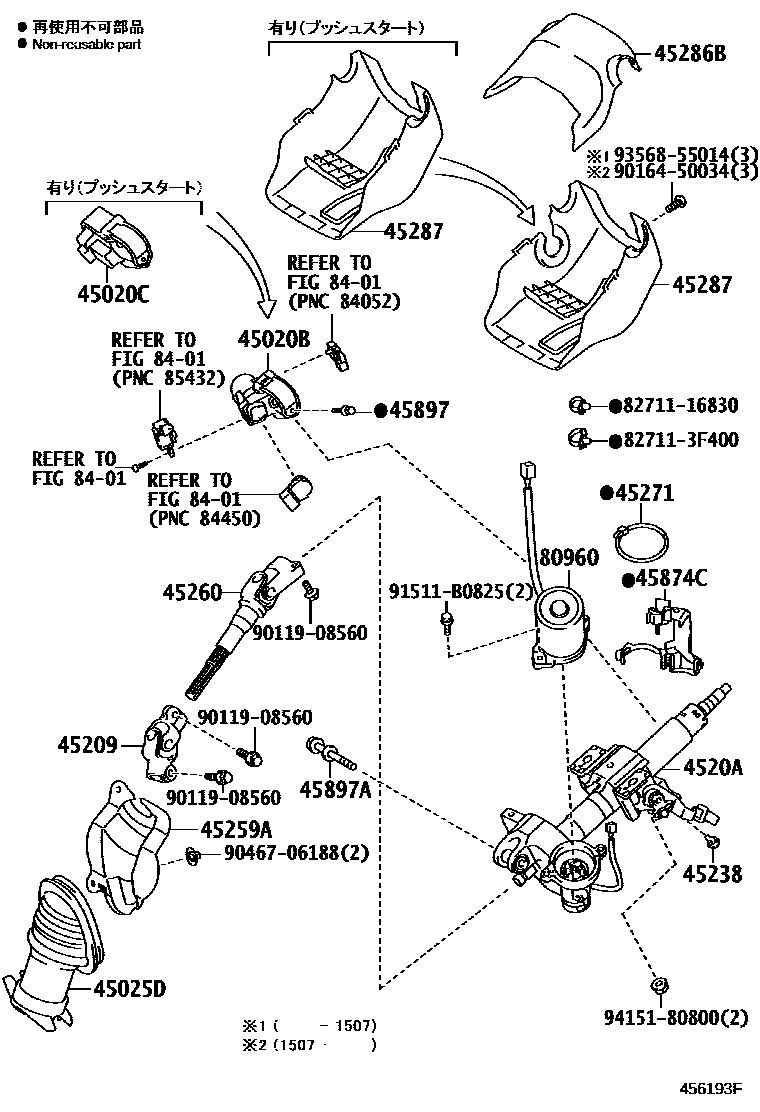

STEERING COLUMN & SHAFT

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-52100iNCP145,NSP141..CBU201507-201712

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-52160iNCP145..CBU201507

main45025-52170iNCP141,NSP140..CBU201207-201507

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-52050iNCP14#,NSP140..CBU201207-201507

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-52250iNCP14#,NSP140..CBU201207-201507

main4520A-52260iNCP145,NSP141..CBU201712

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iNCP14#,NSP140..CBU201207-201507

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-52010iNCP14#,NSP140..CBU201207-201507

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-52320iNCP14#,NSP140..CBU201207-201507

45271CLAMP, STEERING COLUMN, UPPER

main45271-52040iNCP14#,NSP140..CBU201207-201507

45286BCOVER, STEERING COLUMN, UPR

main45286-12560-C0supersedes 45286-12560-C0iNCP145,NSP141..F..CBU201712

BLACK,TRIM2#,4#

main45286-12560-E0supersedes 45286-52180-E0iNCP145,NSP141..F..CBU201712

PLUM,TRIM0#

main45286-52160-C0iNCP145,NSP141..(F,V,Y)..CBU201507-201704

BLACK,TRIM40

main45286-52160-E0iNCP14#,NSP140..(G,V,X)..CBU201207-201507

PLUM,TRIM4#

main45286-52180-C0iNCP145,NSP141..(F,Y)..CBU201705-201712

BLACK,TRIM40

main45286-52180-E0iNCP145,NSP141..F..CBU201705-201712

PLUM,TRIM41

45287COVER, STEERING COLUMN, LWR

main45024-52050-C0iNCP145,NSP141..(F,V,Y)..CBU201511-201712

BLACK,TRIM40

main45024-52060-C0supersedes 45024-52050-C0iNCP145,NSP141..F..CBU201712

BLACK,TRIM2#,4#

main45024-52060-E0supersedes 45024-52050-E0iNCP145,NSP141..(G,X)..CBU201712

PLUM,TRIM0#

main45287-52190-E0iNCP14#,NSP140..(G,V,X)..CBU201207-201410

PLUM,TRIM4#

main45287-52260-C0iNCP145,NSP141..(F,V,Y)..CBU201507-201510

BLACK,TRIM40

main45287-52260-E0iNCP14#,NSP140..(G,V,X)..CBU201411-201507

PLUM,TRIM4#

main45287-12640-C0iNCP14#..SPADE..F..CBU201404-201410

sub45024-52080

main45287-12640-E0iNCP14#,NSP140..(G,X)..CBU201207-201410

sub45024-52080

main45287-52270-C0supersedes 45287-52260-C0iNCP145,NSP141..(F,Y)..CBU201507-201510

main45287-52270-E0supersedes 45287-52260-E0iNCP145..SPADE..F201411-201507

45874CPROTECTOR, STEERING COLUMN, NO.1

main45874-52040iNCP145,NSP141..CBU201507

45897BOLT, STEERING LOCK SET

main45897-12020iNCP14#,NSP140..CBU201207-201507

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iNCP14#,NSP140..CBU201207-201209

main90119-10980iNCP14#,NSP140..CBU201210-201507

main90119-10981iNCP145,NSP141..CBU201707

80960MOTOR ASSY, POWER STEERING

main80960-52070iNCP14#,NSP140..CBU201308-201311

main80960-52100iNCP14#,NSP140..CBU201207-201307

main80960-52110iNCP14#,NSP140..CBU201312-201507

8401

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

827113F400WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F400

9011908560

main90119-08560

9016450034

main90164-50034

9046706188

main90467-06188

91511B0825

main91511-B0825

9356855014

main93568-55014

9415180800

main94151-80800

24 parts on this diagram · 1 diagram in section
