TRANSFER ASSEMBLY & GASKET KIT

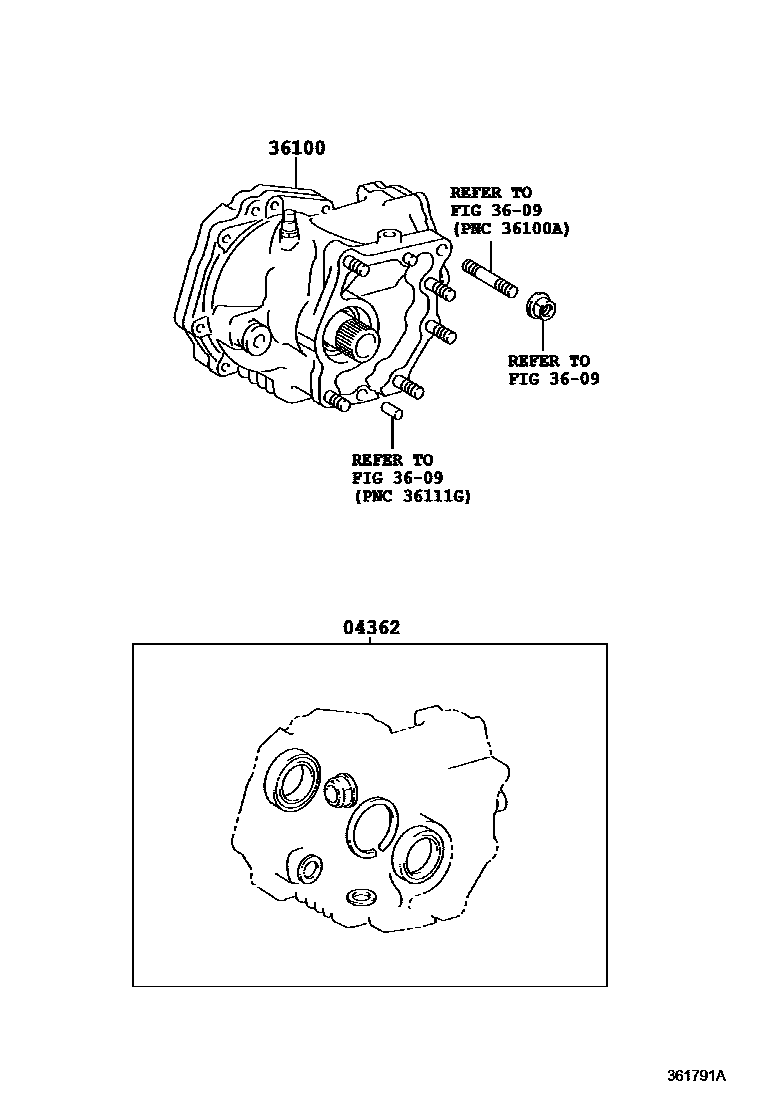

Parts diagram

04362GASKET KIT, TRANSFER OVERHAUL

main04362-12060i201207-201507

3609

36100TRANSFER ASSY

main36100-52030i201207-201507

main36100-52060i201508-201606

main36100-52061i201606

3 parts on this diagram · 1 diagram in section
