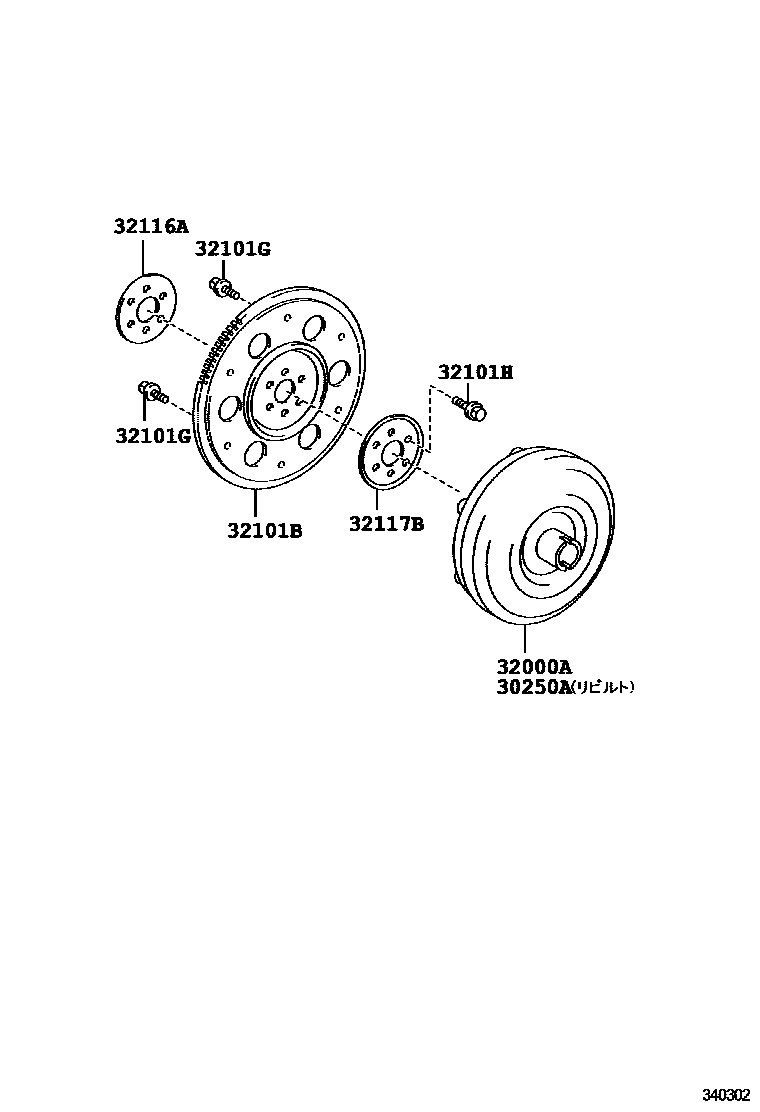

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K310F,K312 0002 1K411 0003 1K411,��������� 0004 1K312

30250ACONVERTER ASSY, TORQUE, REBUILT

main30250-12480iNCP141..CBU201207-201507

sub30250-12481

main30250-52160iNSP140..CBU201207-201507

main30250-52190iNSP141..CBU201507-201904

sub30250-52191

main30250-52191iNSP141..CBU201904

32000ACONVERTER ASSY, TORQUE

main32000-12410iNCP145..CBU201207-201905

sub32000-12411

main32000-12411iNCP145..CBU201906

main32000-12480iNCP141..CBU201207-201507

sub32000-12481

main32000-52160iNSP140..CBU201207-201507

main32000-52190iNSP141..CBU201507-201903

sub32000-52191

main32000-52191iNSP141..CBU201904

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-52021iNCP145..CBU201207-201507

main32101-52090iNSP141..CBU201507

main32101-74010iNSP140..V201207-201305

sub32111-52110

main32111-52120iNSP140..V201305-201507

sub32111-52110

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iNCP145,NSP141..CBU201207-201507

main90119-08498iNCP14#,NSP140..CBU201207-201507

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iNCP14#..CBU201207-201507

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iNSP141..CBU201507

main32116-12030iNSP140..V201207-201507

main32116-52030iNCP145..CBU201207-201507

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iNSP140..CBU201207-201507

main32117-52030iNCP14#..CBU201207-201507

7 parts on this diagram · 4 diagrams in section
