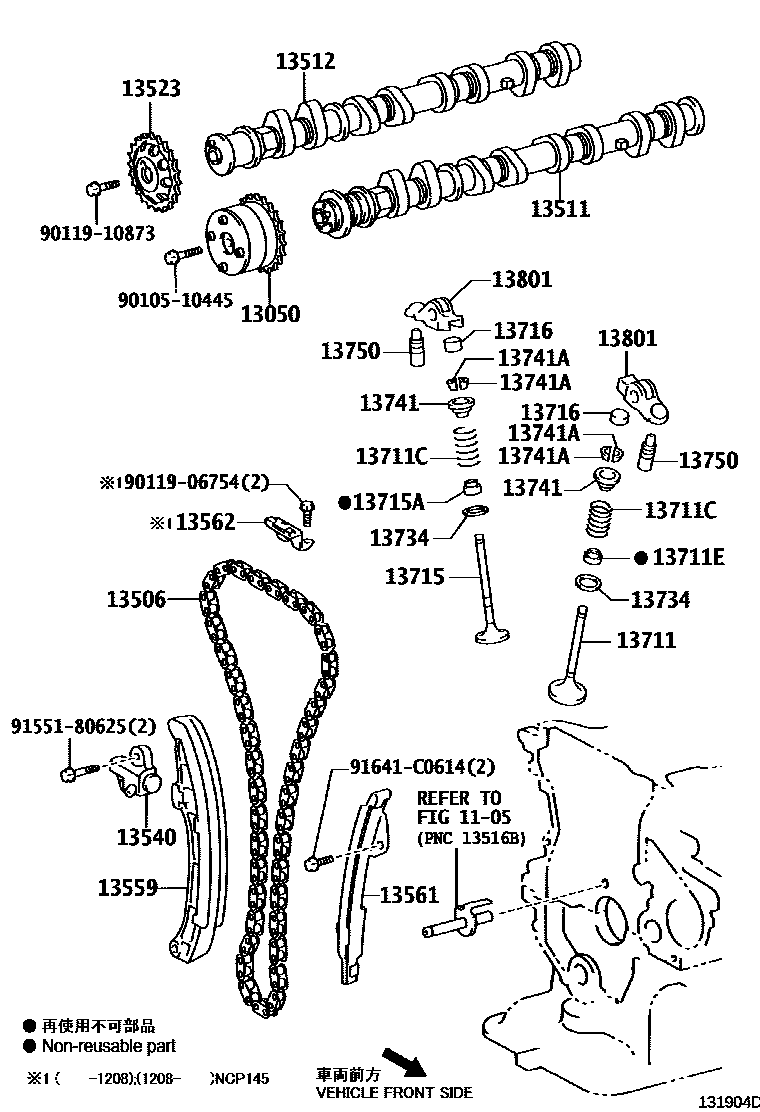

CAMSHAFT & VALVE
1105
13050GEAR ASSY, CAMSHAFT TIMING
13506CHAIN SUB-ASSY
13511CAMSHAFT
13512CAMSHAFT, NO.2
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
13711VALVE, INTAKE
13711CSPRING, COMPRESSION(FOR OUTER)
13711ESEAL, INTAKE VALVE STEM OIL
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
9010510445
main90105-10445
9011906754
main90119-06754
9011910873
main90119-10873
9155180625
main91551-80625
91641C0614
main91641-C0614
26 parts on this diagram · 3 diagrams in section
