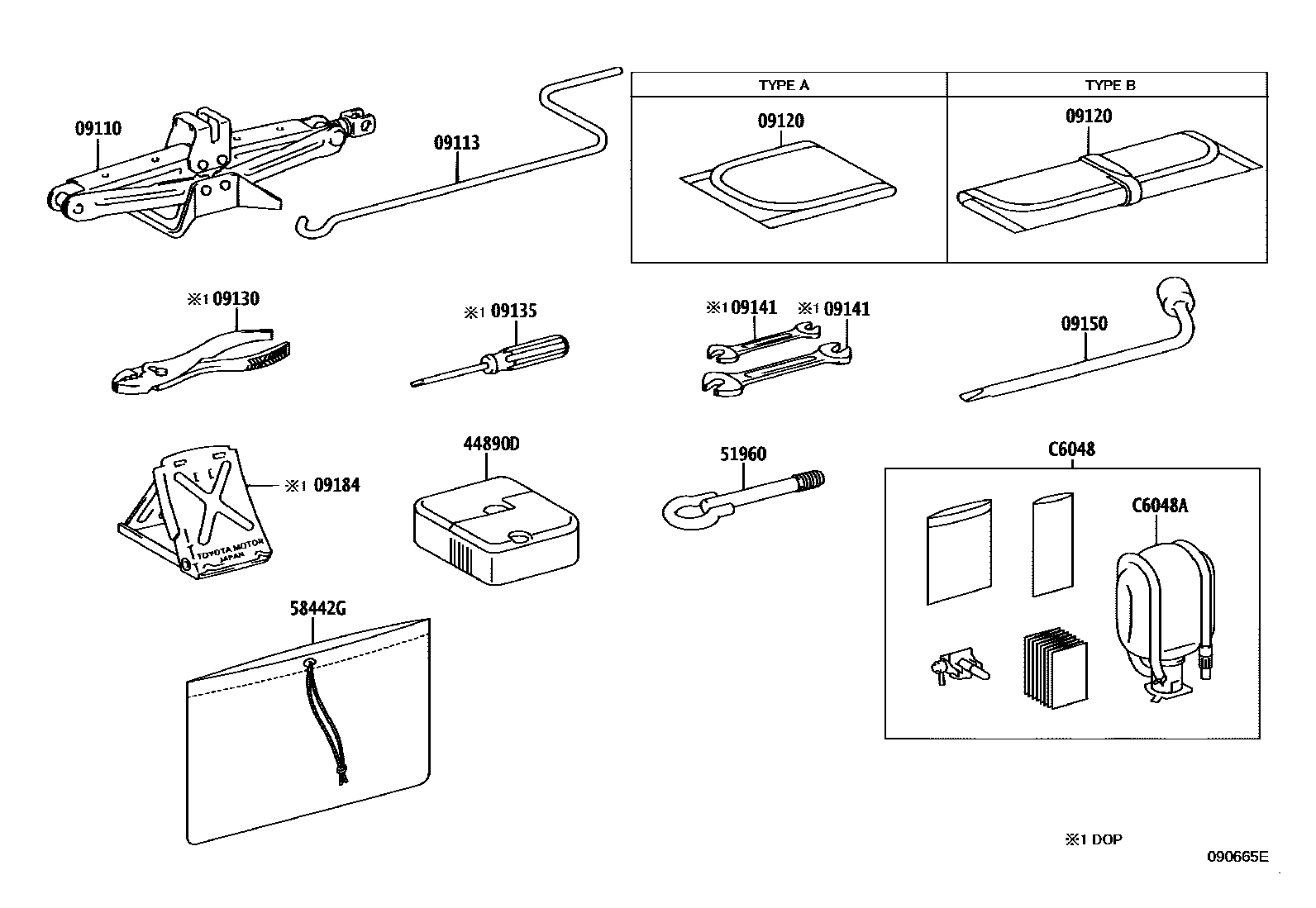

STANDARD TOOL

09110JACK ASSY

main09111-52060iNCP14#,NSP140..CBU201207-201507

09113HANDLE, JACK

main09113-20050iNCP14#,NSP140..CBU201207-201507

09120BAG, TOOL

main09120-48010

main09120-16030

09130PLIERS

main99913-11500

09135DRIVER, SCREW

main99915-10700

09141SPANNER

main99914-11214

main99914-10810

09150WRENCH, HUB NUT BOX

main09150-40010iNCP14#,NSP140..CBU201207-201507

09184STOPPER, WHEEL

main09184-00010

44890DCOMPRESSOR ASSY, AIR

main44890-52021iNCP14#,NSP140..CBU201207-201507

sub44890-52022

51960HOOK ASSY, FRONT

main51960-47020iNCP14#,NSP140..CBU201207-201509

main51960-52090iNCP145,NSP141..CBU201510

58442GCOVER, JACK

main58442-52080iNCP141,NSP140..CBU201207-201507

C6048REPAIR SET, TIRE

main42683-52021iNCP14#,NSP140..CBU201207-201507

main42683-52021iNCP145,NSP141..CBU201507

C6048ASEALANT, REPAIR TIRE

mainC604852021iNCP14#,NSP140..CBU201207-201507

13 parts on this diagram · 1 diagram in section
