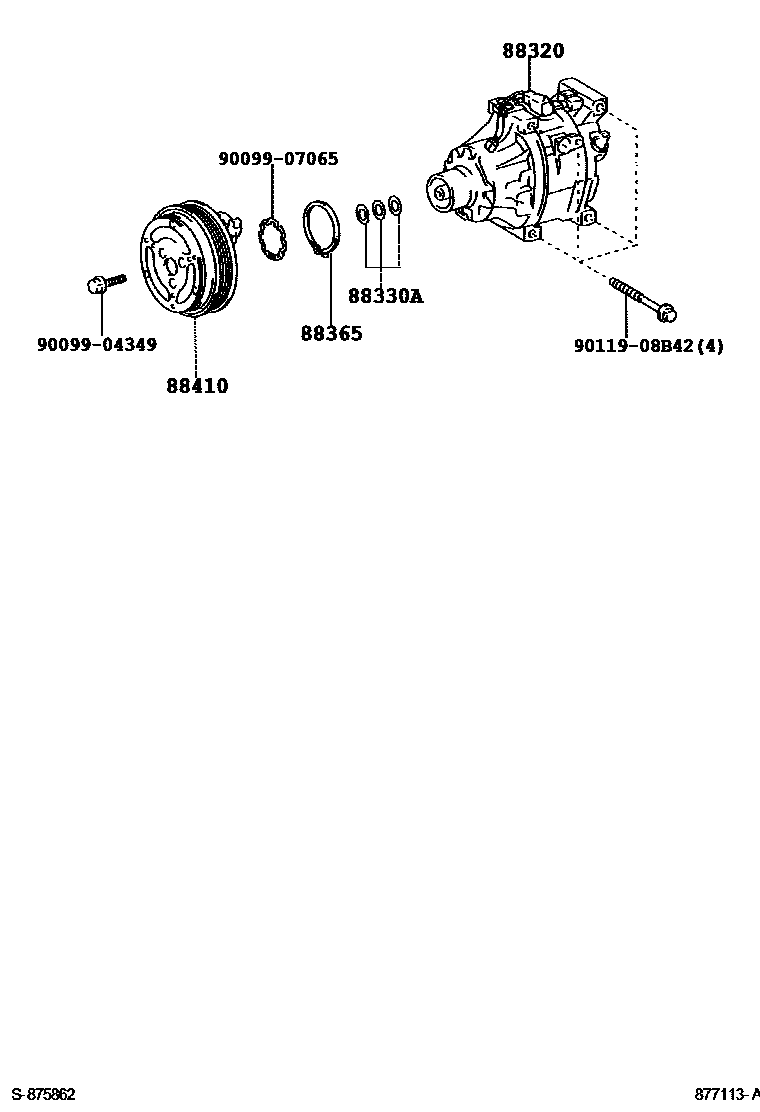

HEATING & AIR CONDITIONING - COMPRESSOR

88320COMPRESSOR ASSY, COOLER

main88320-52400iNNP1#200407-200706

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iNNP1#200407-200706

88365RING, SNAP

main88365-87201iNNP1#200407-200706

88410CLUTCH ASSY, MAGNET

main88410-2B280iNNP1#200407-200706

9009904349

main90099-04349

9009907065

main90099-07065

9011908B42

main90119-08B42

7 parts on this diagram · 1 diagram in section
