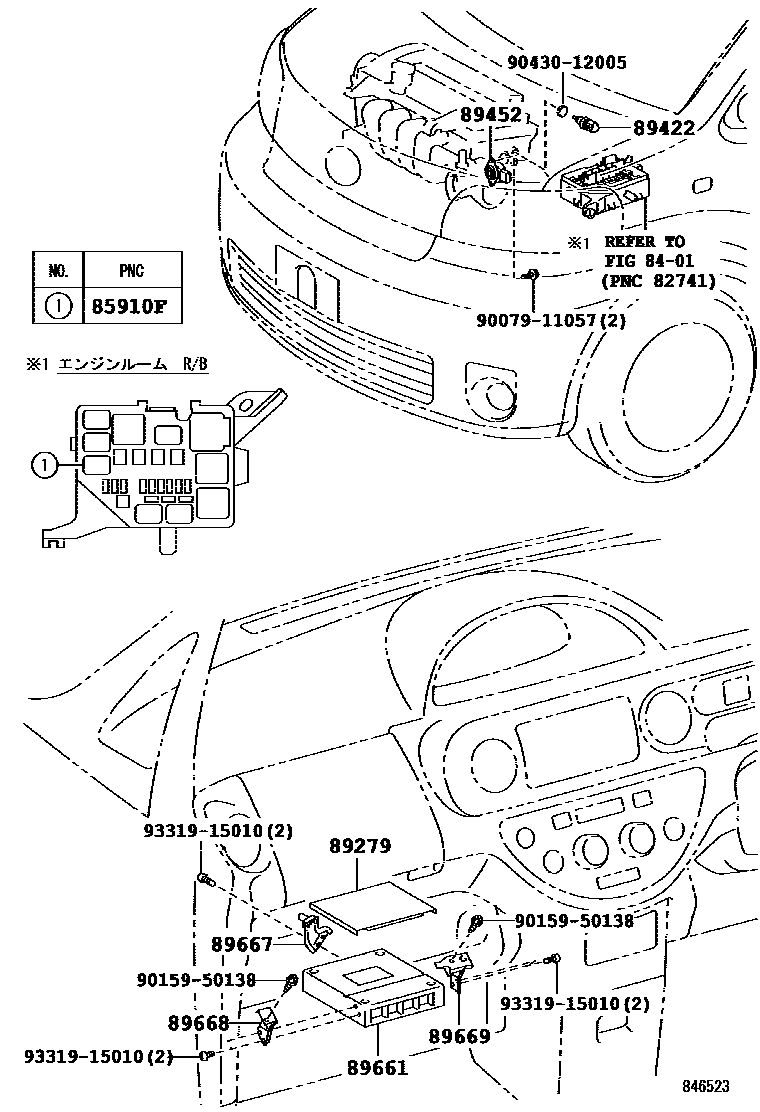

ELECTRONIC FUEL INJECTION SYSTEM

8401

85910FRELAY, COMPUTER (FOR EFI)

main90987-02027iNNP1#200407-200706

89279COVER, ENGINE CONTROL COMPUTER

main89279-52100iNNP1#200407-200706

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iNNP1#200706-201008

main89422-22030iNNP1#200407-200706

main89422-33030iNNP1#201008-201206

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iNNP1#200407-200706

89661COMPUTER, ENGINE CONTROL

main89661-52170iNNP11200706-200802

main89661-52171iNNP11200803-201008

main89661-52E60iNNP15200601-200706

main89661-52E61iNNP15200803-201008

main89661-52M30iNNP11201008

main89661-52M40iNNP15201008

main89661-52M50iNNP10201008

main89661-5C320iNNP10200706-200802

main89661-5C321iNNP10200803-201008

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-52010iNNP1#200706

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52120iNNP1#200407-200706

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-52070iNNP1#200407-200706

9007911057

main90079-11057

9015950138

main90159-50138

9043012005

main90430-12005

9331915010

main93319-15010

13 parts on this diagram · 1 diagram in section
