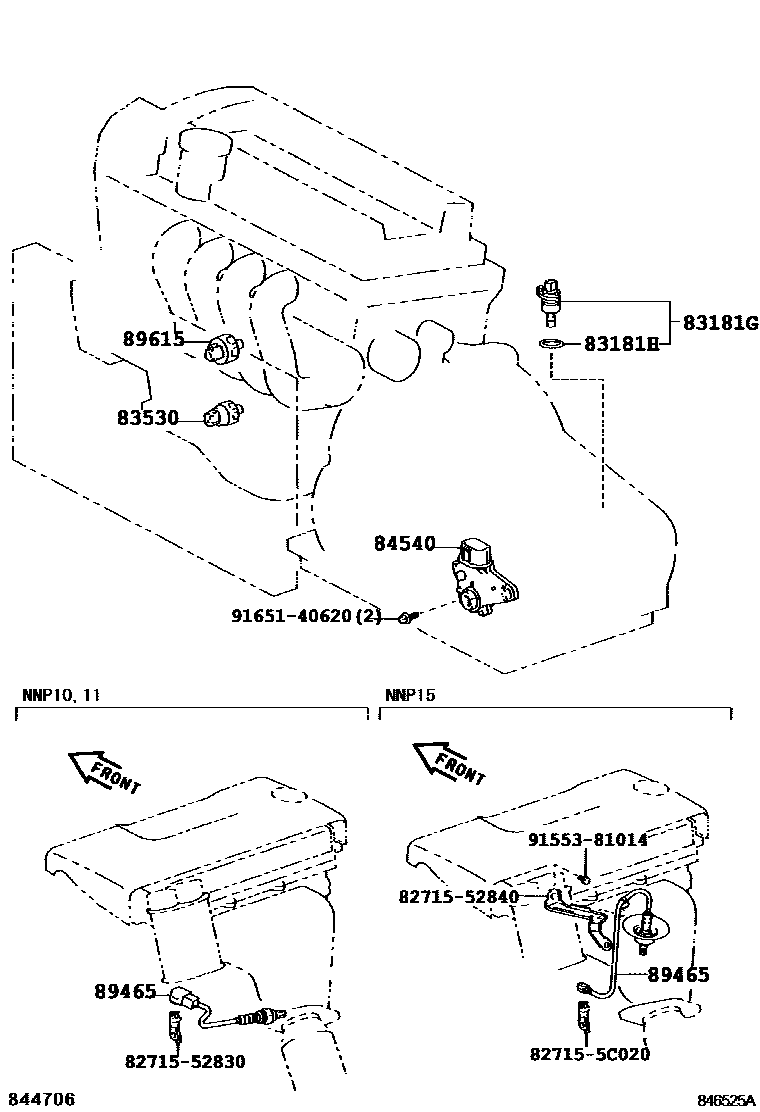

SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1�������� 0004 1�������� �������� 0005 1������������ 0006 1��� 0007 1������� & ������������� 0008 1���,���,��� & �������

83181GSENSOR, SPEEDOMETER

main83181-12040iNNP15200601-200706

83181HRING, O (FOR SPEEDOMETER SENSOR)

main96711-24018iNNP15200601-200706

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNNP1#200407-200706

main83530-60020iNNP1#200706

84540SWITCH ASSY, NEUTRAL START

main84540-46010iNNP1#200706-201206

89465SENSOR, OXYGEN

main89465-20810iNNP10,11200407-200706

main89465-52210iNNP15200706-201008

main89465-52460iNNP10,11201008

main89465-52600iNNP15201008

89615SENSOR, KNOCK CONTROL

main89615-20090iNNP1#201008

main89615-52030iNNP1#200407-200706

8271552830BRACKET,WIRING HARNESS CLAMP

main82715-52830

8271552840BRACKET,WIRING HARNESS CLAMP

main82715-52840

827155C020BRACKET,WIRING HARNESS CLAMP

main82715-5C020

9155381014

main91553-81014

9165140620

main91651-40620

11 parts on this diagram · 8 diagrams in section
