EPC Data

FRONT SEAT & SEAT TRACK

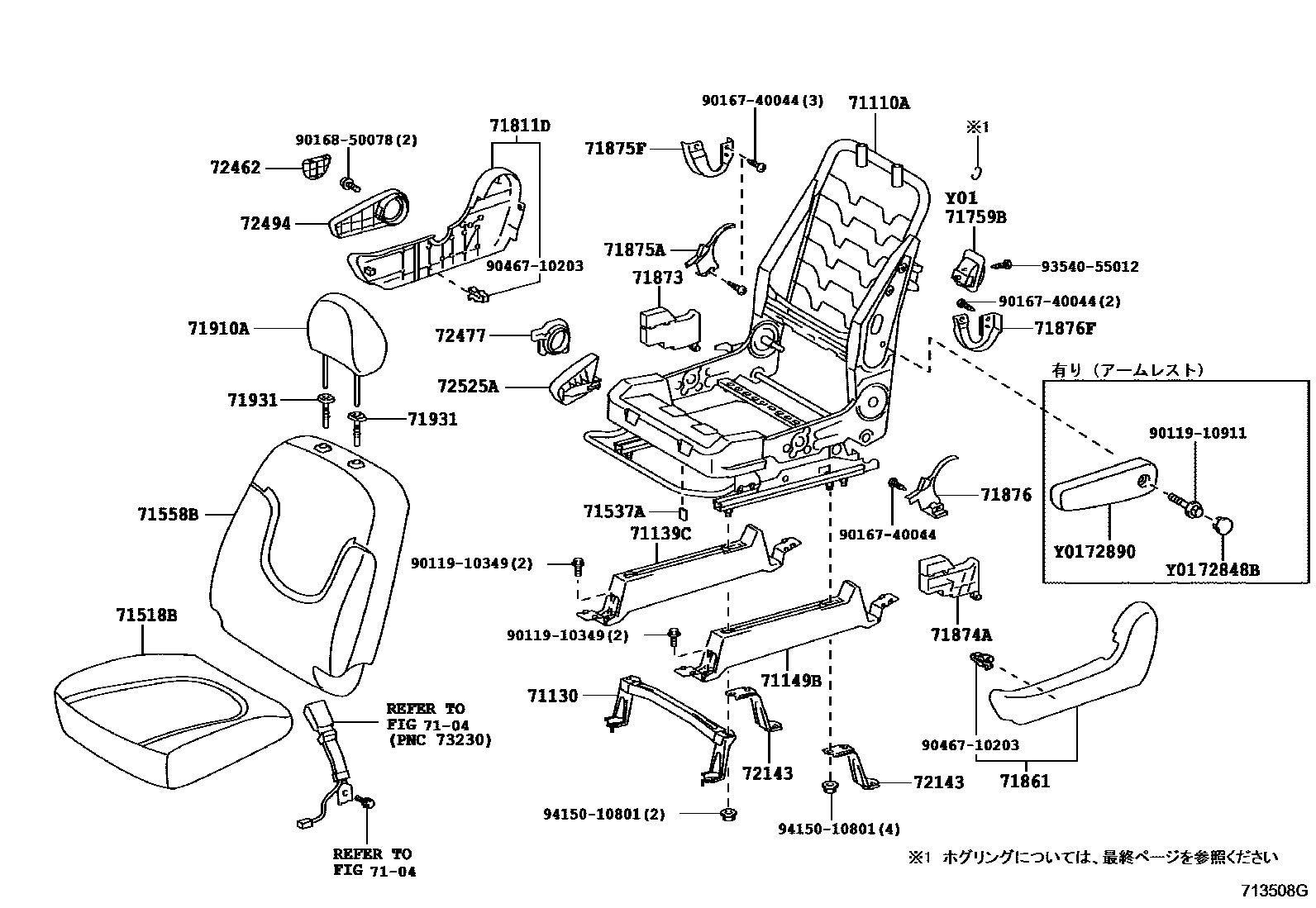

Parts diagram
7104
71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH
main71110-52180i200407-200706
main71110-52570i200706-201206
71130LEG ASSY, FRONT SEAT, RH
main71130-52010i200407-201206
71139CCOVER, FRONT SEAT LEG, RH
main71139-28090-A0i200407-200706
IVORY,TRIM0#
sub71139-28090
main71139-28090-E1i200706-201206
GREGE,TRIM4#
sub71139-28090
71149BCOVER, FRONT SEAT LEG, LH (FOR RH SEAT)
main71149-28080-A0i200407-200706
IVORY,TRIM0#
sub71149-28080
main71149-28080-E1i200706-201206
GREGE,TRIM4#
sub71149-28080
71518BPAD, FRONT SEAT CUSHION W/COVER, RH
main71518-52E20-E0i201008-201206
GREGE/GREGE,TRIM41
main71518-52E20-E1i201008-201206
BURNT AMBER/DK.GREGE,TRIM44
main71518-52E20-G0i201008-201206
GREEN/GREGE,TRIM43
main71518-52E20-K0i201008-201206
PURPLE/GREGE,TRIM42
main71518-52G90-E0i200706-201008
sub71518-52G91
main71518-52G90-E1i200706-201008
GREGE,TRIM41
sub71518-52G91
main71518-52J00-E0i200706-201008
main71518-52J00-E0i200706-201008
main71518-52J00-E0i200706-201008
main71518-52J00-E0i200706-201008
main71518-52J00-E1i200706-201008
main71518-52J00-E1i200706-201008
main71518-52J00-E1i200706-201008
main71518-52J00-E1i200706-201008
main71518-52J00-E2i201008-201206
main71518-52J00-E2i201008-201206
main71518-52J00-E2i201008-201206
main71518-52J00-E2i201008-201206
main71518-5C320-E0i200407-200706
ORANGE/IVORY,TRIM07
sub71518-5D030
main71518-5C320-E1i200407-200706
BROWN/IVORY,TRIM07
sub71518-5D030
main71518-5D030-E2i200407-200706
sub71518-5D031
main71518-5D030-E2i200407-200706
sub71518-5D031
main71518-5D030-E2i200407-200706
sub71518-5D031
main71518-5D030-E2i200407-200706
sub71518-5D031
main71518-5D030-E2i200407-200706
sub71518-5D031
main71518-5D030-E2i200407-200706
sub71518-5D031
main71518-5D030-E2i200407-200706
sub71518-5D031
main71518-5D030-E2i200407-200706
sub71518-5D031
main71518-5D030-E2i200407-200706
sub71518-5D031
main71518-5D030-E2i200407-200706
sub71518-5D031
main71518-5D030-E2i200407-200706
sub71518-5D031
main71518-5D030-E2i200601-200706
sub71518-5D031
main71518-5D030-E2i200601-200706
sub71518-5D031
main71518-5D030-E2i200601-200706
sub71518-5D031
main71518-5D030-E2i200601-200706
sub71518-5D031
main71518-5D030-E2i200601-200706
sub71518-5D031
main71518-5D030-E2i200601-200706
sub71518-5D031
main71518-5D030-E2i200601-200706
sub71518-5D031
main71518-5D030-E2i200601-200706
sub71518-5D031
main71518-5D030-E2i200601-200706
sub71518-5D031
main71518-5D030-E2i200601-200706
sub71518-5D031
main71518-5D030-E2i200610-200706
sub71518-5D031
main71518-5D030-E2i200610-200706
sub71518-5D031
main71518-5D030-E2i200610-200706
sub71518-5D031
main71518-5D030-E2i200610-200706
sub71518-5D031
main71518-5D030-E2i200407-200512
sub71518-5D031
main71518-5D030-E2i200407-200512
sub71518-5D031
main71518-5D030-E3i200601-200706
sub71518-5D031
main71518-5D030-E3i200601-200706
sub71518-5D031
main71518-5D030-E3i200601-200706
sub71518-5D031
main71518-5D030-E3i200601-200706
sub71518-5D031
main71518-5D030-E3i200601-200706
sub71518-5D031
main71518-5D030-E3i200601-200706
sub71518-5D031
main71518-5D030-E3i200601-200706
sub71518-5D031
main71518-5D030-E3i200601-200706
sub71518-5D031
main71518-5D030-E3i200601-200706
sub71518-5D031
main71518-5D030-E3i200601-200706
sub71518-5D031
main71518-5D030-E3i200407-200706
sub71518-5D031
main71518-5D030-E3i200407-200706
sub71518-5D031
main71518-5D030-E3i200407-200706
sub71518-5D031
main71518-5D030-E3i200407-200706
sub71518-5D031
main71518-5D030-E3i200407-200706
sub71518-5D031
main71518-5D030-E3i200407-200706
sub71518-5D031
main71518-5D030-E3i200407-200706
sub71518-5D031
main71518-5D030-E3i200407-200706
sub71518-5D031
main71518-5D030-E3i200407-200706
sub71518-5D031
main71518-5D030-E3i200407-200706
sub71518-5D031
main71518-5D030-E3i200407-200706
sub71518-5D031
main71518-5D030-E3i200407-200512
sub71518-5D031
main71518-5D030-E3i200407-200512
sub71518-5D031
main71518-5D030-E3i200610-200706
sub71518-5D031
main71518-5D030-E3i200610-200706
sub71518-5D031
main71518-5D030-E3i200610-200706
sub71518-5D031
main71518-5D030-E3i200610-200706
sub71518-5D031
main71518-5D030-E4i200610-200706
sub71518-5D031
main71518-5D030-E4i200610-200706
sub71518-5D031
main71518-5D030-E4i200610-200706
sub71518-5D031
main71518-5D030-E4i200610-200706
sub71518-5D031
main71518-5D030-E4i200610-200706
sub71518-5D031
main71518-5D030-E4i200610-200706
sub71518-5D031
main71518-5D030-E4i200610-200706
sub71518-5D031
main71518-5D030-E4i200610-200706
sub71518-5D031
main71518-5D030-E4i200610-200706
sub71518-5D031
main71518-5D030-E4i200610-200706
sub71518-5D031
main71518-5D030-E4i200610-200706
sub71518-5D031
main71518-5D030-E4i200610-200706
sub71518-5D031
main71518-5D030-E4i200610-200706
sub71518-5D031
main71518-5D030-E4i200610-200706
sub71518-5D031
main71518-5D030-E4i200610-200706
sub71518-5D031
main71518-5D030-E4i200610-200706
sub71518-5D031
main71518-5D030-E4i200610-200706
sub71518-5D031
main71518-5D030-E4i200610-200706
sub71518-5D031
main71518-5D030-E4i200610-200706
sub71518-5D031
main71518-5D030-E4i200610-200706
sub71518-5D031
main71518-5D030-E4i200610-200706
sub71518-5D031
main71518-5D030-E4i200610-200706
sub71518-5D031
main71518-5D030-E4i200610-200706
sub71518-5D031
main71518-5D030-E4i200610-200706
sub71518-5D031
main71518-5D030-E4i200610-200706
sub71518-5D031
71537APROTECTOR, FRONT SEAT CUSHION
main71537-26010i200407-201206
71558BPAD, FRONT SEATBACK W/COVER, RH
main71558-52G20-A0i200601-200706
sub71558-52G21
main71558-52G20-A0i200601-200706
sub71558-52G21
main71558-52G20-A0i200601-200706
sub71558-52G21
main71558-52G20-A0i200601-200706
sub71558-52G21
main71558-52G20-A0i200601-200706
sub71558-52G21
main71558-52G20-A0i200601-200706
sub71558-52G21
main71558-52G20-A0i200601-200706
sub71558-52G21
main71558-52G20-A0i200601-200706
sub71558-52G21
main71558-52G20-A0i200601-200706
sub71558-52G21
main71558-52G20-A0i200601-200706
sub71558-52G21
main71558-52G20-A0i200610-200706
sub71558-52G21
main71558-52G20-E0i200601-200706
sub71558-52G21
main71558-52G20-E0i200601-200706
sub71558-52G21
main71558-52G20-E0i200601-200706
sub71558-52G21
main71558-52G20-E0i200601-200706
sub71558-52G21
main71558-52G20-E0i200601-200706
sub71558-52G21
main71558-52G20-E0i200601-200706
sub71558-52G21
main71558-52G20-E0i200601-200706
sub71558-52G21
main71558-52G20-E0i200601-200706
sub71558-52G21
main71558-52G20-E0i200601-200706
sub71558-52G21
main71558-52G20-E0i200601-200706
sub71558-52G21
main71558-52G20-E1i200610-200706
sub71558-52G21
main71558-52L10-E0i200706-201008
sub71558-52L11
main71558-52L10-E1i200706-201008
GREGE,TRIM41
sub71558-52L11
main71558-52L20-E0i200706-201008
main71558-52L20-E1i200706-201008
main71558-52L20-E2i201008-201206
main71558-52L30-E0i200706-201008
sub71558-52L31
main71558-52L30-E1i200706-201008
GREGE,TRIM41
sub71558-52L31
main71558-52L40-E0i200706-201008
main71558-52L40-E0i200706-201008
main71558-52L40-E0i200706-201008
main71558-52L40-E0i200706-201008
main71558-52L40-E1i200706-201008
main71558-52L40-E1i200706-201008
main71558-52L40-E1i200706-201008
main71558-52L40-E1i200706-201008
main71558-52L40-E2i201008-201206
main71558-52L40-E2i201008-201206
main71558-52L40-E2i201008-201206
main71558-52L40-E2i201008-201206
main71558-52L70-E0i201008-201206
main71558-52L70-E1i201008-201206
main71558-52L70-E2i201008-201206
main71558-52L70-E3i201008-201206
main71558-52L80-E0i201008-201206
main71558-52L80-E1i201008-201206
main71558-52L80-E2i201008-201206
main71558-52L80-E3i201008-201206
main71558-52T40-E0i200906-201008
sub71558-52T41
main71558-52T40-E1i200906-201008
sub71558-52T41
main71558-52T50-E0i200906-201008
sub71558-52T51
main71558-52T50-E1i200906-201008
sub71558-52T51
main71558-52T60-E0i201008-201206
GREGE/PURPLE,TRIM42
main71558-52T60-E1i201008-201206
GREGE/GREEN,TRIM43
main71558-52T60-E2i201008-201206
GREGE/GREGE,TRIM41
main71558-52T60-E3i201008-201206
DK.GREGE/BURNT AMBER,TRIM44
main71558-52V70-E0i201008-201206
GREGE/PURPLE,TRIM42
main71558-52V70-E1i201008-201206
GREGE/GREEN,TRIM43
main71558-52V70-E2i201008-201206
GREGE/GREGE,TRIM41
main71558-52V70-E3i201008-201206
DK.GREGE/BURNT AMBER,TRIM44
main71558-5C530-A0i200407-200706
IVORY/ORANGE,TRIM07
sub71558-52G20
main71558-5C530-E0i200407-200706
BROWN/BROWN,TRIM07
sub71558-52G20
main71558-5C540-A1i200407-200706
sub71558-5C541
main71558-5C540-A1i200407-200706
sub71558-5C541
main71558-5C540-A1i200407-200706
sub71558-5C541
main71558-5C540-A1i200407-200706
sub71558-5C541
main71558-5C540-A1i200407-200706
sub71558-5C541
main71558-5C540-A1i200407-200706
sub71558-5C541
main71558-5C540-A1i200407-200706
sub71558-5C541
main71558-5C540-A1i200407-200706
sub71558-5C541
main71558-5C540-A1i200407-200706
sub71558-5C541
main71558-5C540-A1i200407-200706
sub71558-5C541
main71558-5C540-A1i200407-200706
sub71558-5C541
main71558-5C540-A1i200610-200706
sub71558-5C541
main71558-5C540-A1i200610-200706
sub71558-5C541
main71558-5C540-A1i200610-200706
sub71558-5C541
main71558-5C540-A1i200407-200512
sub71558-5C541
main71558-5C540-A1i200407-200512
sub71558-5C541
main71558-5C540-E1i200407-200706
sub71558-5C541
main71558-5C540-E1i200407-200706
sub71558-5C541
main71558-5C540-E1i200407-200706
sub71558-5C541
main71558-5C540-E1i200407-200706
sub71558-5C541
main71558-5C540-E1i200407-200706
sub71558-5C541
main71558-5C540-E1i200407-200706
sub71558-5C541
main71558-5C540-E1i200407-200706
sub71558-5C541
main71558-5C540-E1i200407-200706
sub71558-5C541
main71558-5C540-E1i200407-200706
sub71558-5C541
main71558-5C540-E1i200407-200706
sub71558-5C541
main71558-5C540-E1i200407-200706
sub71558-5C541
main71558-5C540-E1i200407-200512
sub71558-5C541
main71558-5C540-E1i200407-200512
sub71558-5C541
main71558-5C540-E1i200610-200706
sub71558-5C541
main71558-5C540-E1i200610-200706
sub71558-5C541
main71558-5C540-E2i200610-200706
sub71558-5C541
71759BHOOK, FRONT SEATBACK
main71759-28040-A0i200407-200706
IVORY,TRIM0#
sub71759-28040
main71759-28050-E0i200706-201206
GREGE,TRIM4#
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-48090-A0i200407-200706
IVORY,TRIM0#
sub71811-48090
main71811-48090-E0i200706-201206
GREGE,TRIM4#
sub71811-48090
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-48030-A0i200407-200706
IVORY,TRIM0#
sub71861-48030
main71861-48030-E0i200706-201206
GREGE,TRIM4#
sub71861-48030
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-52040-A0i200407-200706
IVORY,TRIM0#
sub71873-52041
sub90467-07191
sub71873-68010
sub71873-52040
main71873-52040-E1i200706-201206
GREGE,TRIM4#
sub71873-52041
sub90467-07191
sub71873-68010
sub71873-52040
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-52050-A0i200407-200706
IVORY,TRIM0#
sub71874-52051
sub90467-07191
sub71874-68010
sub71874-52050
main71874-52050-E1i200706-201206
GREGE,TRIM4#
sub71874-52051
sub90467-07191
sub71874-68010
sub71874-52050
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-52030-A0i200407-200706
IVORY,TRIM0#
sub71875-52030
main71875-52030-E2i200706-201206
GREGE,TRIM4#
sub71875-52030
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
main71875-58060i200407-201206
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71876-52030-A0i200407-200706
IVORY,TRIM0#
sub71876-52030
main71876-52030-E3i200706-201206
GREGE,TRIM4#
sub71876-52030
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
main71876-58060i200407-201206
71910AHEADREST ASSY, FRONT SEAT
main71910-52450-A0i200407-200706
sub71910-52480
main71910-52450-E0i200407-200706
sub71910-52480
main71910-52460-A0i200407-200706
sub71910-52470
main71910-52460-E0i200407-200706
sub71910-52470
main71910-52470-A0i200610-200706
sub71910-52470
sub71910-52G20
main71910-52470-A0i200610-200706
sub71910-52470
sub71910-52G20
main71910-52470-A0i200610-200706
sub71910-52470
sub71910-52G20
main71910-52470-A0i200610-200706
sub71910-52470
sub71910-52G20
main71910-52470-A0i200610-200706
sub71910-52470
sub71910-52G20
main71910-52470-A0i200610-200706
sub71910-52470
sub71910-52G20
main71910-52470-A0i200610-200706
sub71910-52470
sub71910-52G20
main71910-52470-A0i200610-200706
sub71910-52470
sub71910-52G20
main71910-52470-A0i200610-200706
sub71910-52470
sub71910-52G20
main71910-52470-A0i200610-200706
sub71910-52470
sub71910-52G20
main71910-52470-A0i200610-200706
sub71910-52470
sub71910-52G20
main71910-52470-A0i200610-200706
sub71910-52470
sub71910-52G20
main71910-52470-A0i200610-200706
sub71910-52470
sub71910-52G20
main71910-52470-A1i200407-200706
sub71910-52470
sub71910-52G20
main71910-52470-A1i200407-200706
sub71910-52470
sub71910-52G20
main71910-52470-A1i200407-200706
sub71910-52470
sub71910-52G20
main71910-52470-A1i200407-200706
sub71910-52470
sub71910-52G20
main71910-52470-A1i200407-200706
sub71910-52470
sub71910-52G20
main71910-52470-A1i200407-200706
sub71910-52470
sub71910-52G20
main71910-52470-A1i200407-200706
sub71910-52470
sub71910-52G20
main71910-52470-A1i200407-200706
sub71910-52470
sub71910-52G20
main71910-52470-A1i200407-200512
sub71910-52470
sub71910-52G20
main71910-52470-A1i200601-200706
sub71910-52470
sub71910-52G20
main71910-52470-A1i200601-200706
sub71910-52470
sub71910-52G20
main71910-52470-A1i200601-200706
sub71910-52470
sub71910-52G20
main71910-52470-A1i200601-200706
sub71910-52470
sub71910-52G20
main71910-52470-A1i200601-200706
sub71910-52470
sub71910-52G20
main71910-52470-A1i200610-200706
sub71910-52470
sub71910-52G20
main71910-52470-E1i200407-200706
sub71910-52470
sub71910-52G20
main71910-52470-E1i200407-200706
sub71910-52470
sub71910-52G20
main71910-52470-E1i200407-200706
sub71910-52470
sub71910-52G20
main71910-52470-E1i200407-200706
sub71910-52470
sub71910-52G20
main71910-52470-E1i200407-200706
sub71910-52470
sub71910-52G20
main71910-52470-E1i200407-200706
sub71910-52470
sub71910-52G20
main71910-52470-E1i200407-200706
sub71910-52470
sub71910-52G20
main71910-52470-E1i200407-200706
sub71910-52470
sub71910-52G20
main71910-52470-E1i200601-200706
sub71910-52470
sub71910-52G20
main71910-52470-E1i200601-200706
sub71910-52470
sub71910-52G20
main71910-52470-E1i200601-200706
sub71910-52470
sub71910-52G20
main71910-52470-E1i200601-200706
sub71910-52470
sub71910-52G20
main71910-52470-E1i200601-200706
sub71910-52470
sub71910-52G20
main71910-52470-E1i200407-200512
sub71910-52470
sub71910-52G20
main71910-52470-E1i200610-200706
sub71910-52470
sub71910-52G20
main71910-52480-A0i200610-200706
sub71910-52480
sub71910-52G30
main71910-52480-A0i200610-200706
sub71910-52480
sub71910-52G30
main71910-52480-A1i200601-200706
sub71910-52480
sub71910-52G30
main71910-52480-A1i200407-200706
sub71910-52480
sub71910-52G30
main71910-52480-A1i200407-200706
sub71910-52480
sub71910-52G30
main71910-52480-E1i200407-200706
sub71910-52480
sub71910-52G30
main71910-52480-E1i200407-200706
sub71910-52480
sub71910-52G30
main71910-52480-E1i200601-200706
sub71910-52480
sub71910-52G30
main71910-52690-E0i200706-200807
sub71910-52A60
main71910-52690-E0i200706-200807
sub71910-52A60
main71910-52690-E0i200706-200807
sub71910-52A60
main71910-52690-E0i200706-200807
sub71910-52A60
main71910-52690-E1i200706-200807
sub71910-52A60
main71910-52690-E1i200706-200807
sub71910-52A60
main71910-52690-E1i200706-200807
sub71910-52A60
main71910-52690-E1i200706-200807
sub71910-52A60
main71910-52700-E0i200706-200807
sub71910-52A70
main71910-52700-E1i200706-200807
sub71910-52A70
main71910-52710-E0i200706-200807
sub71910-52A80
main71910-52710-E1i200706-200807
sub71910-52A80
main71910-52720-E0i200706-200807
sub71910-52A90
main71910-52720-E1i200706-200807
sub71910-52A90
main71910-52A60-E0i200808-201008
main71910-52A60-E0i200808-201008
main71910-52A60-E0i200808-201008
main71910-52A60-E0i200808-201008
main71910-52A60-E0i201008-201206
main71910-52A60-E0i201008-201206
main71910-52A60-E0i201008-201206
main71910-52A60-E0i201008-201206
main71910-52A60-E1i200808-201008
main71910-52A60-E1i200808-201008
main71910-52A60-E1i200808-201008
main71910-52A60-E1i200808-201008
main71910-52A70-E0i200808-201008
sub71910-52J20
main71910-52A70-E1i200808-201008
sub71910-52J20
main71910-52A80-E0i201008-201206
main71910-52A80-E0i200808-201008
main71910-52A80-E1i200808-201008
main71910-52A90-E0i200808-201008
sub71910-52J30
main71910-52A90-E1i200808-201008
sub71910-52J30
main71910-52C00-E0i201008-201206
main71910-52C00-E1i201008-201206
main71910-52C20-E0i201008-201206
main71910-52C20-E1i201008-201206
71931SUPPORT, FRONT SEAT HEADREST
main71930-42020-A0i200407-200706
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-A0i200407-200706
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-A0i200407-200706
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-A0i200407-200706
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-A0i200407-200706
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-A0i200407-200706
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-A0i200407-200706
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-A0i200407-200706
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-A0i200407-200706
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-A0i200407-200706
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-A0i200407-200706
sub71930-52030
sub71930-42020
sub71930-44020
main71930-52030-E0i200706-201206
sub71930-52030
main71930-52030-E0i200706-201206
sub71930-52030
main71930-52030-E0i200706-201206
sub71930-52030
main71930-52030-E0i200706-201206
sub71930-52030
main71930-52030-E0i200706-201206
sub71930-52030
main71930-52030-E0i200706-201206
sub71930-52030
main71930-52030-E0i200706-201206
sub71930-52030
main71930-52030-E0i200706-201206
sub71930-52030
main71931-42020-A0i200407-200706
sub71931-42020
main71931-42020-A0i200407-200706
sub71931-42020
main71931-42020-A0i200407-200706
sub71931-42020
main71931-42020-A0i200407-200706
sub71931-42020
main71931-42020-A0i200407-200706
sub71931-42020
main71931-42020-A0i200407-200706
sub71931-42020
main71931-42020-A0i200407-200706
sub71931-42020
main71931-42020-A0i200407-200706
sub71931-42020
main71931-42020-A0i200407-200706
sub71931-42020
main71931-42020-A0i200407-200706
sub71931-42020
main71931-42020-A0i200407-200706
sub71931-42020
main71931-42020-E1i200706-201206
sub71931-42020
main71931-42020-E1i200706-201206
sub71931-42020
main71931-42020-E1i200706-201206
sub71931-42020
main71931-42020-E1i200706-201206
sub71931-42020
main71931-42020-E1i200706-201206
sub71931-42020
main71931-42020-E1i200706-201206
sub71931-42020
main71931-42020-E1i200706-201206
sub71931-42020
main71931-42020-E1i200706-201206
sub71931-42020
72143BRACKET, FRONT SEAT TRACK, LOWER REAR RH(FOR RH SEAT)
main72143-28080i200407-201206
72462COVER, VERTICAL ADJUSTER RH
main72462-60010-A0i200407-200706
IVORY,TRIM0#
sub72462-60010
main72462-60010-E2i200706-201206
GREGE,TRIM4#
sub72462-60010
72477SPACER, VERTICAL ADJUSTER
main72477-52010i200407-200706
main72477-52010-C0i200706-201206
BLACK,TRIM4#
sub72477-52010
72494HANDLE, VERTICAL ADJUSTING, RH
main72494-60020-A0i200407-200706
IVORY,TRIM0#
sub72494-60020
main72494-60020-E2i200706-201206
GREGE,TRIM4#
sub72494-60020
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-58030-A0i200407-200706
IVORY,TRIM0#
sub72525-58030
main72525-58030-E3i200706-201206
GREGE,TRIM4#
sub72525-58030
72848BCAP, SEAT ARMREST, NO.1
72890ARMREST ASSY, SEAT, C LH
main72890-52040-E0i200706-201008
main72890-52040-E0i200706-201008
main72890-52040-E0i200706-201008
main72890-52040-E0i200706-201008
main72890-52040-E1i200706-201008
main72890-52040-E1i200706-201008
main72890-52040-E1i200706-201008
main72890-52040-E1i200706-201008
main72890-52040-E2i201008-201206
main72890-52040-E2i201008-201206
main72890-52040-E2i201008-201206
main72890-52040-E2i201008-201206
main72890-52050-E0i200906-201008
sub72890-52090
main72890-52050-E0i200906-201008
sub72890-52090
main72890-52050-E1i200906-201008
sub72890-52090
main72890-52050-E1i200906-201008
sub72890-52090
main72890-52070-E0i201008-201206
main72890-52070-E0i201008-201206
main72890-52070-E1i201008-201206
main72890-52070-E1i201008-201206
main72890-52070-G0i201008-201206
main72890-52070-G0i201008-201206
main72890-52070-K0i201008-201206
main72890-52070-K0i201008-201206
9011910349
main90119-10349
9011910911
main90119-10911
9016740044
main90167-40044
9016850078
main90168-50078
9046710203
main90467-10203
9354055012
main93540-55012
9415010801
main94150-10801

33 parts on this diagram · 3 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
