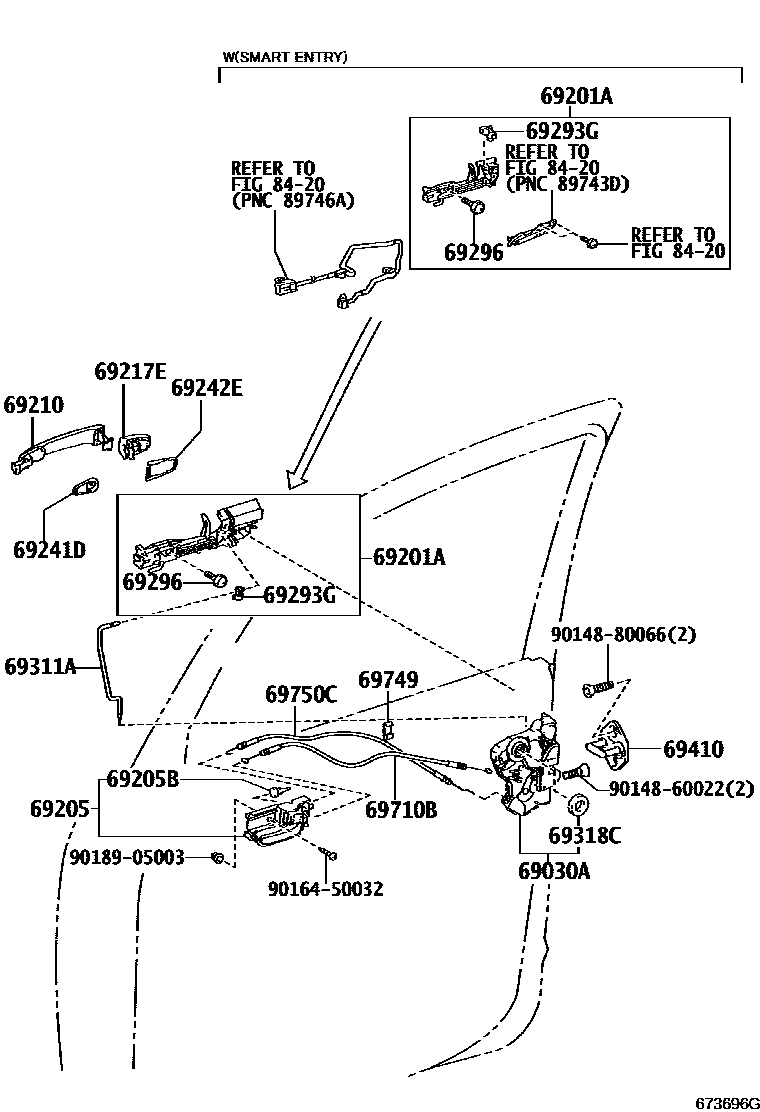

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
IVORY,TRIM0#
GREGE,TRIM4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
LT.YELLOW,597
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
WHITE PEARL CS.,064
SILVER M.M.,1E7
BLACK MC.,209
SUPER RED 5,3P0
LT.YELLOW,597
AQUA M.M.,774
LAVENDER M.M.,949
LT.PURPLE M.M.,9AE
BEIGE ME.,4T8
GRAY ME.,1G2
BLUE MC.,8M6
MAROON BROWN MICA,3S3
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69296SCREW, DOOR INSIDE HANDLE
69311AROD, FRONT DOOR LOCK OPEN, RH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69749CLAMP, FRONT DOOR LOCK LINK
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
8420
9014860022
main90148-60022
9014880066
main90148-80066
9016450032
main90164-50032
9018905003
main90189-05003
21 parts on this diagram · 2 diagrams in section
