DECK BOARD & DECK TRIM COVER

5804

58731CCAP, REAR ABSORBER

main58731-10040-A0iNNP15200601-200706

IVORY,TRIM0#

sub58731-10040

main58731-10040-E1iNNP15200706-201206

GREGE,TRIM4#

sub58731-10040

main58731-52040-A0iNNP10,11200407-200706

IVORY,TRIM0#

sub58731-52040

main58731-52040-E0iNNP10,11200706-201206

GREGE,TRIM4#

sub58731-52040

62510GTRIM ASSY, SIDE NO.1, RH

main62510-52050-A0iNNP10,11200407-200706

IVORY,TRIM0#

sub62510-52050

main62510-52050-E0iNNP10,11200706-201206

GREGE,TRIM4#

sub62510-52050

main62510-52110-A0iNNP15200601-200706

IVORY,TRIM0#

sub62510-52110

main62510-52110-E0iNNP15200706-201206

GREGE,TRIM4#

sub62510-52110

62533CBRACKET, DECK SIDE TRIM RH, FRONT

main62533-52010iNNP1#200407-200706

62534CBRACKET, DECK SIDE TRIM LH, FRONT

main62534-52010iNNP1#200407-200706

62596DTRAY, QUARTER TRIM POCKET

main62596-52010-A0iNNP1#200407-200706

IVORY,TRIM0#

sub62596-52010

main62596-52010-E0iNNP1#200706-201206

GREGE,TRIM4#

sub62596-52010

64421ATRAY, LUGGAGE COMPARTMENT

main64421-52040iNNP15200601-200706

64429TRAY, LUGGAGE COMPARTMENT SIDE

main64421-52050iNNP15200601-200706

64713FCOVER, DECK SIDE TRIM, FRONT LH

main64713-52050-A0iNNP1#200407-200706

IVORY,TRIM0#

sub64713-52050

main64713-52050-E0iNNP1#200706-201206

GREGE,TRIM4#

sub64713-52050

64714ECLIP(FOR DECK TRIM SIDE COVER)

main90467-10161iNNP1#200407-200706

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-06114-A1iNNP1#200407-200706

IVORY,TRIM0#

sub90467-06114

main90467-06114-E0iNNP1#200706-201206

GREGE,TRIM4#

sub90467-06114

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-52270-A0iNNP1#200407-200508

IVORY,TRIM0#

sub64730-52271

main64730-52271-A0iNNP10,11200508-200706

IVORY,TRIM0#

sub64730-52271

main64730-52271-E0iNNP10,11200706-201206

GREGE,TRIM4#

sub64730-52271

main64730-52370-A0iNNP15200601-200706

IVORY,TRIM0#

sub64730-52370

main64730-52370-E0iNNP15200706-201206

GREGE,TRIM4#

sub64730-52370

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-52290-A0iNNP1#200407-200508

IVORY,TRIM0#

sub64740-52291

main64740-52291-A0iNNP10,11200508-200706

IVORY,TRIM0#

sub64740-52291

main64740-52291-E0iNNP10,11200706-201206

GREGE,TRIM4#

sub64740-52291

main64740-52430-A0iNNP15200601-200706

IVORY,TRIM0#

sub64740-52430

main64740-52430-E0iNNP15200706-201206

GREGE,TRIM4#

sub64740-52430

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-52060-A0iNNP10,11200407-200706

IVORY,TRIM0#

sub64745-52060

main64745-52060-E0iNNP1#200706-201206

GREGE,TRIM4#

sub64745-52060

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-52060-A0iNNP1#200407-200706

IVORY,TRIM0#

sub64746-52060

main64746-52060-E0iNNP1#200706-201206

GREGE,TRIM4#

sub64746-52060

64753AGARNISH, DECK SIDE, REAR, RH

main64753-52030-E0iNNP1#201008-201206

GREGE,TRIM41

main64753-52030-E1iNNP1#201008-201206

BURNT AMBER,TRIM44

main64753-52030-G0iNNP1#201008-201206

GREEN,TRIM43

main64753-52030-K0iNNP1#201008-201206

PURPLE,TRIM42

main64753-52040-E0iNNP10,15200407-200706

sub64753-52070

main64753-52050-E0iNNP10,15200407-200706

main64753-52050-E0iNNP11200407-200706

ORANGE,TRIM0#

main64753-52060-E0iNNP10,15200407-200706

ORANGE,TRIM0#

sub64753-52050

main64753-52070-E0iNNP1#200407-200706

main64753-52070-E0iNNP1#200610-200706

main64753-52080-E0iNNP1#200706-201008

sub64753-52030

main64753-52080-E1iNNP1#200706-201008

sub64753-52030

main64753-52090-E0iNNP11,15200706-201008

main64753-52090-E0iNNP11,15200706-201008

main64753-52090-E1iNNP11,15200706-201008

main64753-52090-E1iNNP11,15200706-201008

main64753-52100-E0iNNP15201008-201206

64754AGARNISH, DECK SIDE, REAR, LH

main64754-52030-E0iNNP1#201008-201206

GREGE,TRIM41

main64754-52030-E1iNNP1#201008-201206

BURNT AMBER,TRIM44

main64754-52030-G0iNNP1#201008-201206

GREEN,TRIM43

main64754-52030-K0iNNP1#201008-201206

PURPLE,TRIM42

main64754-52040-E0iNNP10,15200407-200706

sub64754-52070

main64754-52050-E0iNNP11200407-200706

ORANGE,TRIM0#

main64754-52050-E0iNNP11200407-200706

main64754-52060-E0iNNP10,15200407-200706

ORANGE,TRIM0#

sub64754-52050

main64754-52070-E0iNNP1#200407-200706

main64754-52070-E0iNNP1#200610-200706

main64754-52080-E0iNNP1#200706-201008

sub64754-52030

main64754-52080-E1iNNP1#200706-201008

sub64754-52030

main64754-52090-E0iNNP11,15200706-201008

main64754-52090-E0iNNP11,15200706-201008

main64754-52090-E1iNNP11,15200706-201008

main64754-52090-E1iNNP11,15200706-201008

main64754-52100-E0iNNP11201008-201206

64770DCOVER ASSY, SPARE WHEEL

main64770-52100iNNP10,11200407-200507

sub64770-52101

main64770-52101iNNP10,11200508-200706

66991BHOLDER, CUP, NO.1

main66991-52020-A0iNNP1#200407-200706

IVORY,TRIM0#

sub66991-52020

main66991-52020-E0iNNP1#200706-201206

GREGE,TRIM4#

sub66991-52020

67935APLATE, BACK DOOR SCUFF

main67935-52020-A0iNNP1#200407-200706

IVORY,TRIM0#

main67935-52020-E0iNNP1#200706-201206

GREGE,TRIM4#

72615DCOVER, REAR SEATBACK LOCK STRIKER, RH

main72615-52010-A0iNNP10200407-200706

IVORY,TRIM0#

sub72615-52010

72615ECOVER, REAR SEATBACK LOCK STRIKER, RH

main72615-52030-A0iNNP10,15200407-200706

IVORY,TRIM0#

sub72615-52030

main72615-52030-E0iNNP15200706-201206

GREGE,TRIM4#

sub72615-52030

72616CCOVER, REAR SEATBACK LOCK STRIKER, LH

main72615-52030-A0iNNP10,15200407-200706

IVORY,TRIM0#

sub72615-52030

main72615-52030-E0iNNP15200706-201206

GREGE,TRIM4#

sub72615-52030

72616DCOVER, REAR SEATBACK LOCK STRIKER, LH

main72615-52010-A0iNNP10200407-200706

IVORY,TRIM0#

sub72615-52010

7403

9046709209

main90467-09209

9046710161

main90467-10161

9046710167

main90467-10167

91511B0614

main91511-B0614

9165140816

main91651-40816

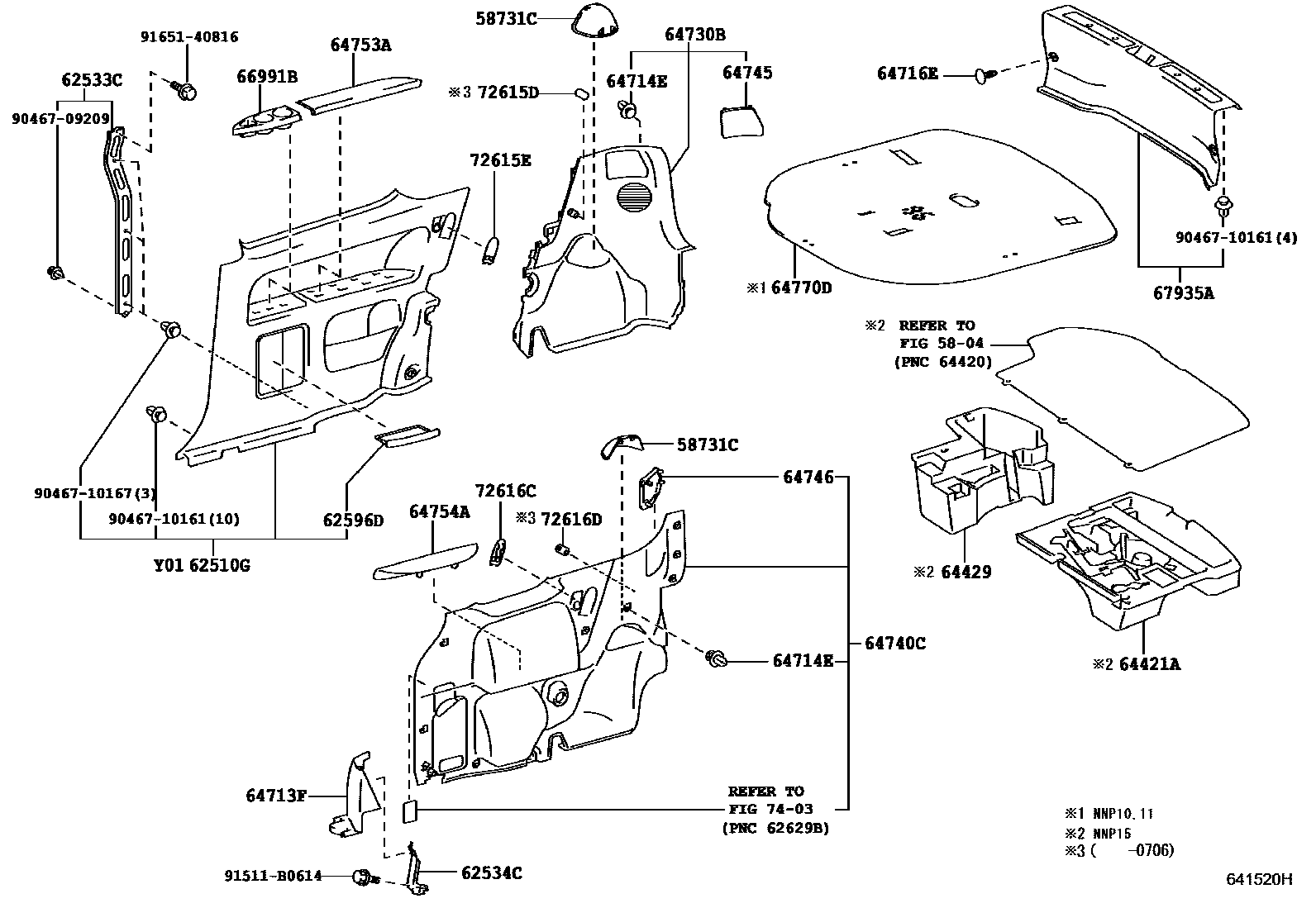

30 parts on this diagram · 1 diagram in section
