QUARTER WINDOW

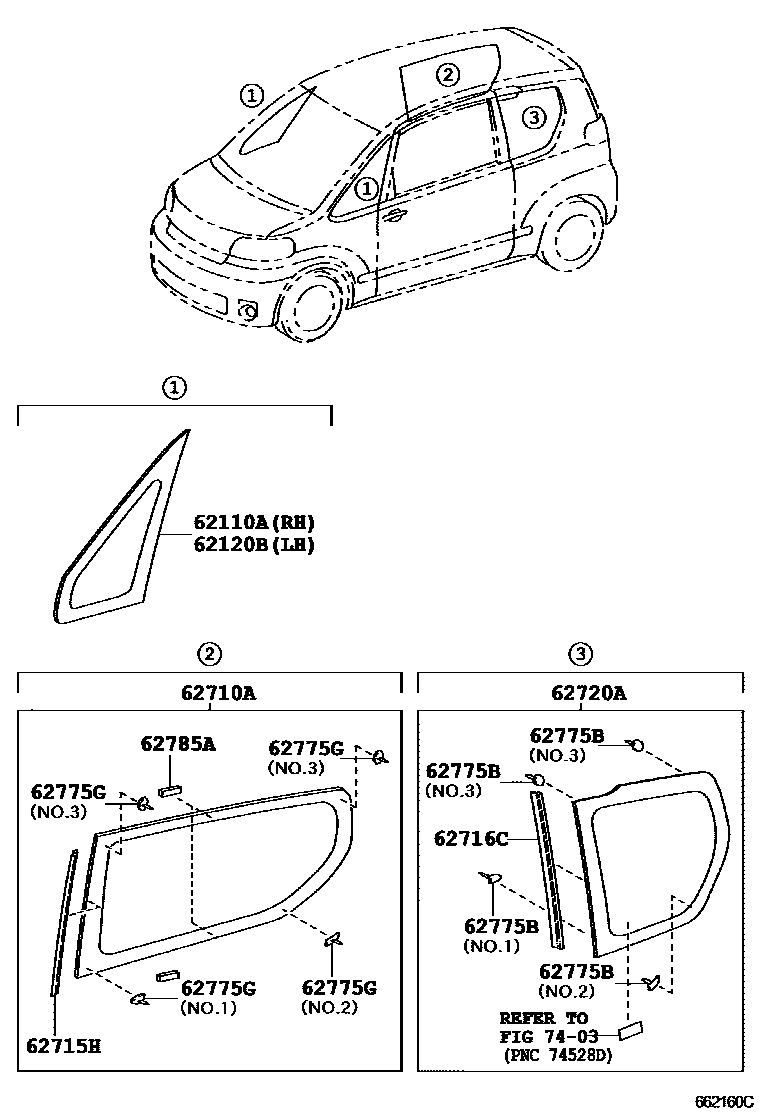

Parts diagram

62110AWINDOW ASSY, FRONT SIDE FIX, RH

main62110-52010i200407-200706

main62110-52030i200706

62120BWINDOW ASSY, FRONT SIDE FIX, LH

main62120-52010i200407-200706

main62120-52030i200706

62710AWINDOW ASSY, QUARTER, RH

main62710-52150i200407-200706

main62710-52160i200512-201008

main62710-52160i200512-201008

main62710-52160i200407-200512

62715HDAM, QUARTER WINDOW GLASS ADHESIVE, RH

main62715-52040i200407-200706

62716CDAM, QUARTER WINDOW GLASS ADHESIVE, LH

main62716-52030i200407-200706

62720AWINDOW ASSY, QUARTER, LH

main62720-52150i200407-200706

main62720-52160i200512-201008

main62720-52160i200512-201008

main62720-52160i200407-200512

62775BCLIP, QUARTER WINDOW, LH

main62775-52010i200512-200706

main62775-52010i200407-200512

main62775-52010i200407-200706

main62775-52010i200512-200706

main62775-52030i200407-200512

main62775-52030i200407-200706

main62775-52030i200512-200706

main62775-52030i200512-200706

main62775-52040i200407-200706

main62775-52040i200512-200706

main62775-52040i200512-200706

main62775-52040i200407-200512

62775GCLIP, QUARTER WINDOW, RH

main62775-52010i200512-200706

main62775-52010i200407-200512

main62775-52010i200407-200706

main62775-52010i200512-200706

main62775-52020i200407-200706

main62775-52020i200407-200512

main62775-52020i200512-200706

main62775-52020i200512-200706

main62775-52040i200512-200706

main62775-52040i200512-200706

main62775-52040i200407-200512

main62775-52040i200407-200706

62785ASPACER, QUARTER WINDOW GLASS

main62785-16030i200407-200706

7403

10 parts on this diagram · 1 diagram in section
