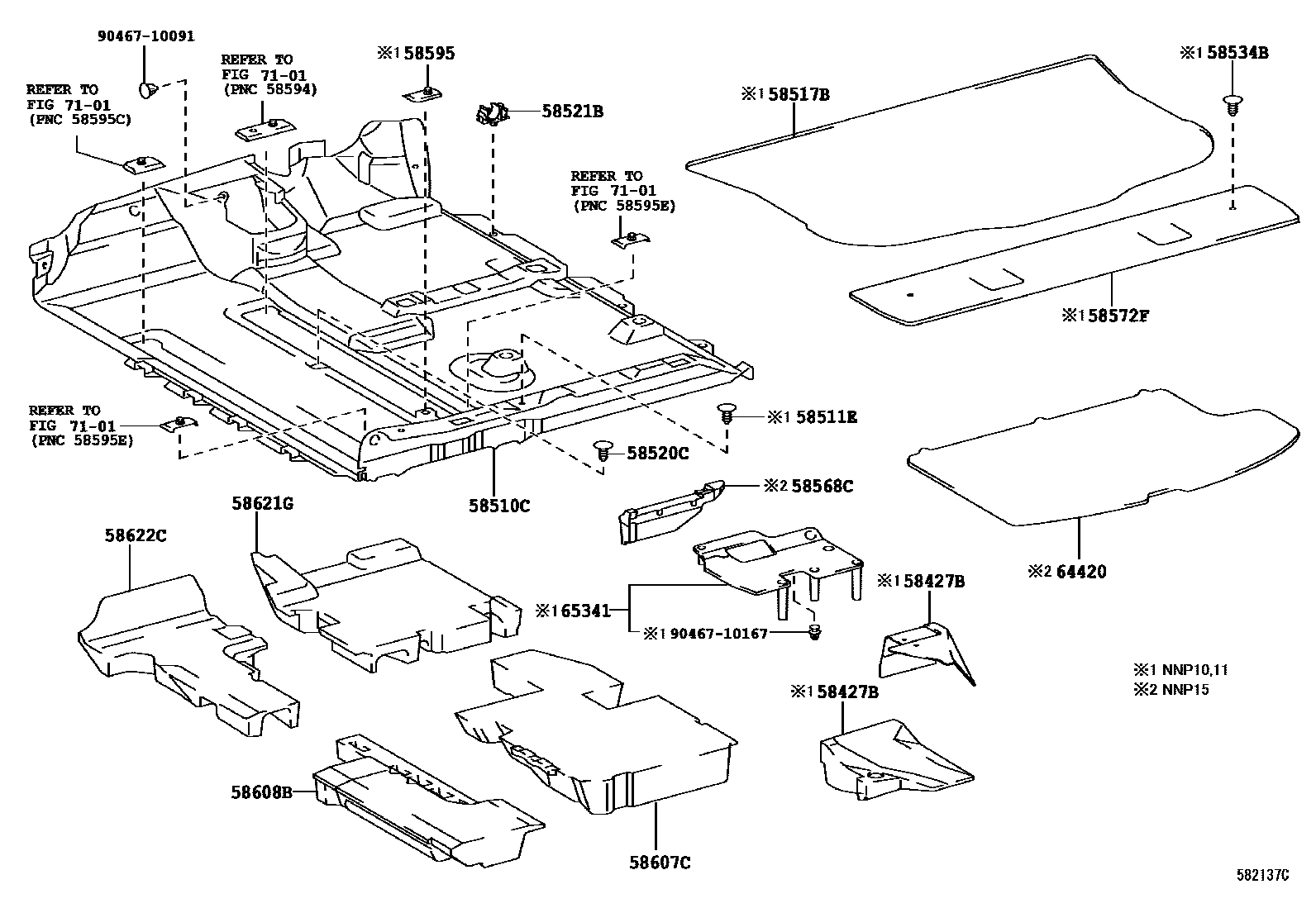

MAT & CARPET

58427BSPACER, REAR FLOOR BOARD

main67731-52060iNNP10,11200706

main67732-52030iNNP11200407-200706

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-52A30-A0supersedes 58510-52A20-A0iNNP10200407-200706

main58510-52D00-A0supersedes 58510-52C90-A0iNNP15200601-200706

main58510-52D00-E0supersedes 58510-52G90-E0iNNP15200706-200909

main58510-52D30-A0iNNP10200512-200706

main58510-52D30-E0supersedes 58510-5C770-E0iNNP10,11200706-201206

main58510-52D40-A0iNNP11200512-200706

main58510-52D40-E0supersedes 58510-5C770-E0iNNP10,11200706-201206

main58510-52G80-E0supersedes 58510-52G90-E0iNNP15200909-201206

main58510-5C670-A0iNNP10200407-200512

main58510-5C680-A0iNNP10200407-200512

main58510-5C750-A0supersedes 58510-52A20-A0iNNP11200407-200706

main58510-5C750-E0supersedes 58510-5C770-E0iNNP10,11200706-201206

main58510-5C760-A0iNNP10200407-200512

main58510-5C780-A0iNNP11200407-200512

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-06023-A0×2supersedes 90467-06023-A0iNNP10200407-200706

main90467-06023-E1×2iNNP10,11200706-201206

GREGE,TRIM4#

58517BCARPET, REAR FLOOR

main58517-52070-A0iNNP10,11200407-200706

IVORY,TRIM0#

main58517-52070-E1iNNP10,11200706-201206

GREGE,TRIM4#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07187-A0iNNP1#200407-200706

IVORY,TRIM0#

main90467-07187-E1iNNP1#200706-201206

GREGE,TRIM4#

58521BHOOK, FLOOR CARPET

main58521-52030×4iNNP1#200407-200706

58534BCLIP(FOR FLOOR CARPET CENTER COVER)

main90467-06020-A2×2iNNP10,11200407-200706

IVORY,TRIM0#

main90467-06020-E7×2iNNP10,11200706-201206

GREGE,TRIM4#

58568CSPACER, REAR FLOOR CARPET

main58568-52020iNNP15200601-200706

58572FCARPET, REAR FLOOR, FRONT

main58572-52010-A0iNNP10,11200407-200706

IVORY,TRIM0#

main58572-52010-E1iNNP10,11200706-201206

GREGE,TRIM4#

58595MOULDING, FLOOR CARPET, NO.3

main58595-52040-A0iNNP1#200407-200706

IVORY,TRIM0#

main58595-52040-E0iNNP1#200706-201206

GREGE,TRIM4#

58607CPAD SUB-ASSY, FRONT FLOOR SILENCER, REAR RH

main58607-52010iNNP10,11200407-200706

main58607-52020iNNP15200601-200706

58608BPAD SUB-ASSY, FRONT FLOOR SILENCER, REAR LH

main58608-52010iNNP1#200407-200706

58621GPAD, FRONT FLOOR SILENCER, RH

main58605-52010iNNP10,11200706

main58605-52020iNNP15200706-201008

main58605-52040iNNP15201008

58622CPAD, FRONT FLOOR SILENCER, LH

main58606-52010iNNP1#200407-200706

main58606-52020iNNP1#201008

64420LID, LUGGAGE ROOM BOX

main64427-52010-A1iNNP15200601-200706

IVORY,TRIM0#

main64427-52010-E1iNNP15200706-201206

GREGE,TRIM4#

65341BOARD, FLOOR, NO.1

main58312-52010iNNP10,11200407-200706

9046710091

main90467-10091

9046710167

main90467-10167

18 parts on this diagram · 1 diagram in section
