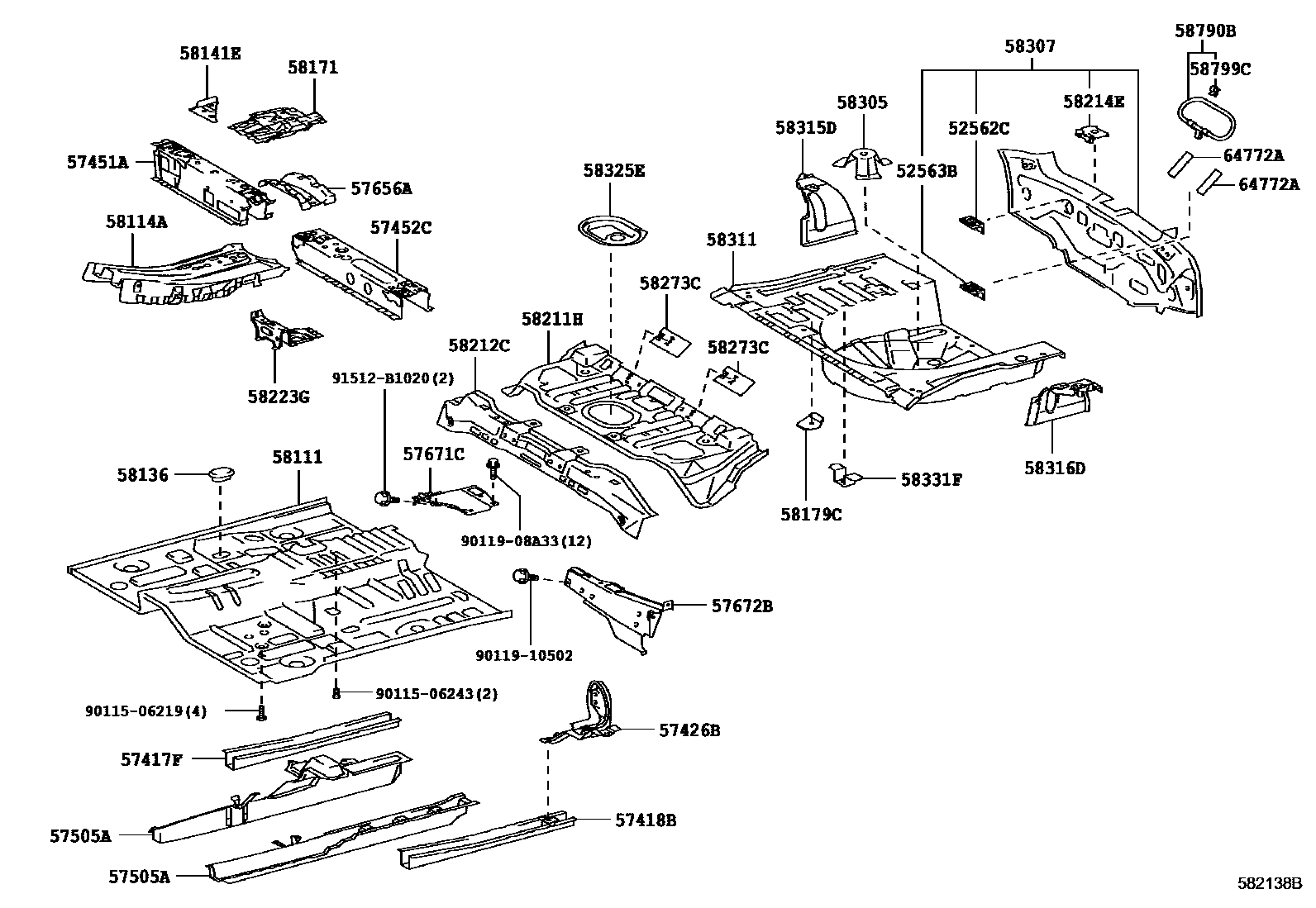

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

52562CRETAINER, REAR BUMPER, UPPER RH

main52562-52020iNNP1#200407-200706

52563BRETAINER, REAR BUMPER, UPPER LH

main52562-52020iNNP1#200407-200706

57417FREINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-52040iNNP1#200407-200706

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57504-52010iNNP1#200706

57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH

main57048-52010iNNP1#200407-200706

57451AMEMBER, FRONT FLOOR CROSS, RH

main57508-52060iNNP10,11200407-200706

main57508-52070iNNP15200601-200706

57452CMEMBER, FRONT FLOOR CROSS, LH

main57509-52040iNNP10,11200706

main57509-52070iNNP15200706

57505AREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER

main57505-52060iNNP10,11200706

main57505-52070iNNP15200706

main57506-52050iNNP10,11200706

main57506-52060iNNP15200601-200706

57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1

main57656-52080iNNP10,11200407-200706

main57658-52010iNNP15200706

main57659-52010iNNP15200706

57671CBRACE, REAR FLOOR NO.1 CROSSMEMBER, RH

main57671-52110iNNP10,11200407-200706

main57671-52140iNNP15200706

57672BBRACE, REAR FLOOR NO.1 CROSSMEMBER, LH

main57065-52010iNNP10,11200407-200706

main57672-52130iNNP15200601-200706

58111PAN, FRONT FLOOR

main58111-52922iNNP10,11200706

main58111-52925iNNP15200706-201008

main58111-52931iNNP15201008

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58103-52030iNNP10,11200407-200706

main58103-52040iNNP15200601-200706

58136COVER, FRONT FLOOR HOLE

main58136-52010×2iNNP1#200407-200706

58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH

main58141-52010iNNP1#200407-200706

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-52030iNNP10,11200407-200706

main58107-52040iNNP15200601-200706

58179CBRACKET, CLAMP FLOOR

main58179-52020iNNP10,11200407-200706

58211HPAN, CENTER FLOOR

main58211-52032iNNP1#200407-200505

sub90333-25001

sub90950-01958

main58211-52033iNNP10,11200706

main58211-52041iNNP15200601-200706

58212CPAN, CENTER FLOOR, FRONT

main58202-52100iNNP10,11200407-200706

58214EBRACKET, JACK SUPPORT

main58214-46020iNNP10,11200407-200706

58223GREINFORCEMENT, SEAT SET, NO.1

main58223-52010iNNP1#200407-200706

58273CREINFORCEMENT, BELT ANCHOR TO CENTER FLOOR

main58273-52100×2iNNP10,11200407-200706

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-52030iNNP10,11200706

main58351-52040iNNP15200601-200706

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-52380iNNP1#200407-200512

main58307-52381iNNP10,11200512-200706

main58307-52500iNNP15200706-201206

58311PAN, REAR FLOOR

main58311-52033iNNP10,11200706

main58311-52230iNNP15200601-200706

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-52030iNNP10,11200407-200706

main58315-52180iNNP15200601-200706

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-52030iNNP10,11200407-200706

main58316-52200iNNP15200601-200706

58325ECOVER, REAR FLOOR SERVICE HOLE

main58320-52010iNNP15200706

main58325-52010iNNP10,11200407-200706

58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3

main58331-10010×2iNNP10,11200407-200706

main58331-10011×5iNNP15200706

58790BCARRIER ASSY, JACK

main58790-52010iNNP10,11200407-200706

58799CCLAMP, JACK CARRIER

main90469-08001×2iNNP10,11200407-200706

64772APAD, SPARE WHEEL COVER

main64772-16100×2iNNP10,11200407-200706

9011506219

main90115-06219

9011506243

main90115-06243

9011908A33

main90119-08A33

9011910502

main90119-10502

91512B1020

main91512-B1020

37 parts on this diagram · 2 diagrams in section
