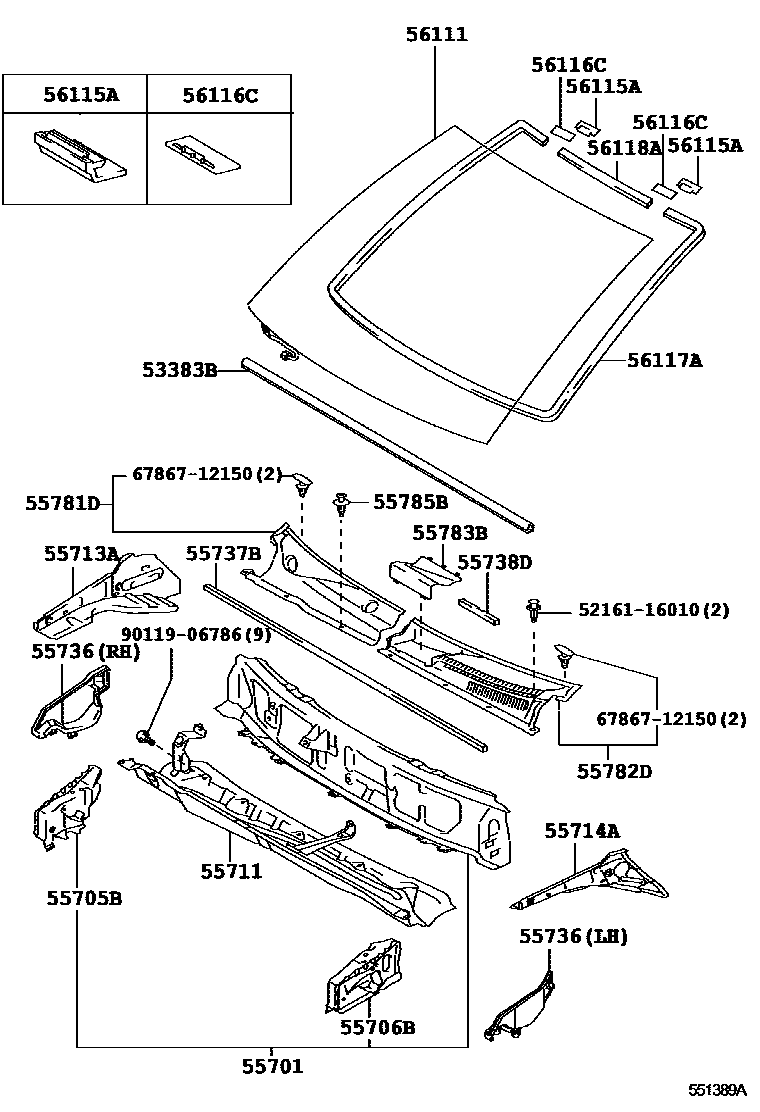

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-52080iNNP1#200706

55701PANEL SUB-ASSY, COWL

main55700-52170iNNP1#200407-200706

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-52060iNNP1#200407-200706

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-52080iNNP1#200407-200706

55711PANEL, COWL TOP, OUTER

main55701-52150iNNP1#200706

55713APANEL, COWL TOP SIDE, RH

main55713-52080iNNP1#200407-200706

55714APANEL, COWL TOP SIDE, LH

main55714-52080iNNP1#200407-200706

55736SEAL, WATER GUARD PLATE

main55735-52010iNNP1#200407-200706

main55736-52010iNNP1#200706

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-52010iNNP1#200407-200706

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55738-52040×2iNNP1#200407-200706

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-52020iNNP1#200407-200706

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-52030supersedes 55709-52020iNNP1#200706

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-52090iNNP1#200407-200706

55785BSHEET, COWL TOP VENTILATOR LOUVER

main55785-52020iNNP1#200407-200706

56111GLASS, WINDSHIELD

main56101-52230supersedes 56101-52450iNNP1#200407-200706

main56101-52460supersedes 56101-52450iNNP1#200706

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2iNNP1#200407-200706

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iNNP1#200407-200706

56117ADAM, WINDOW GLASS ADHESIVE

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

6786712150CLIP, DOOR WEATHERSTRIP

main67867-12150

9011906786

main90119-06786

22 parts on this diagram · 1 diagram in section
