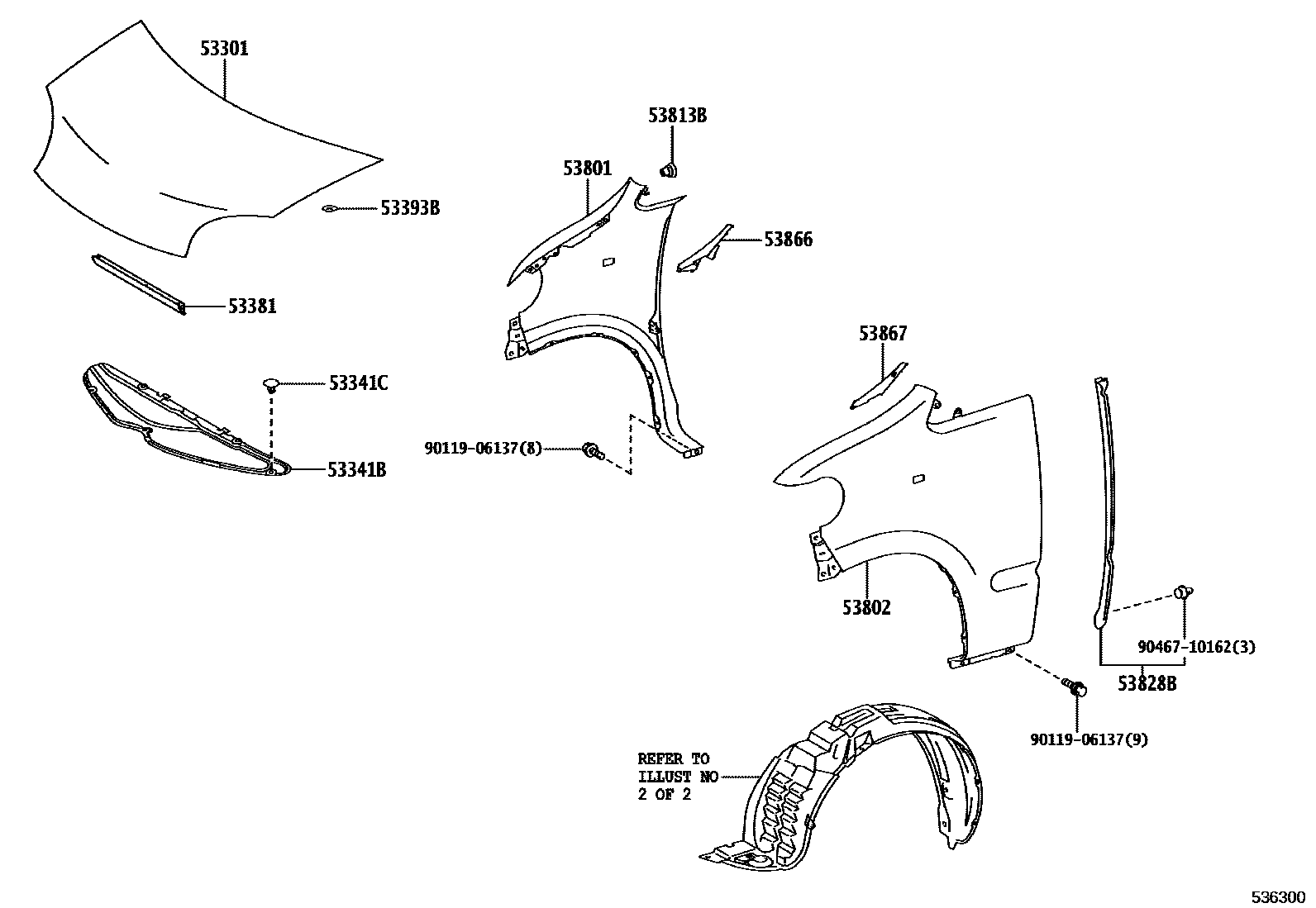

HOOD & FRONT FENDER

0001 1 0002 1��������

53301HOOD SUB-ASSY

main53301-52180iNNP1#200407-201206

53341BINSULATOR, HOOD

main53341-52120iNNP11,15200407-200706

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iNNP11,15200407-200706

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-52020iNNP1#200407-200706

53393BPROTECTOR, HOOD, FRONT

main53393-52010iNNP1#200407-200601

main90950-06096iNNP1#201204-201206

main90950-06124iNNP1#200601-201203

53801FENDER SUB-ASSY, FRONT RH

main53811-52200iNNP10,15200407-201206

main53811-52290iNNP10200706-201206

main53811-52290iNNP10200706-201206

main53811-52290iNNP10200906-201206

53802FENDER SUB-ASSY, FRONT LH

main53812-52200iNNP1#200407-201206

main53812-52290iNNP10200706-201206

main53812-52290iNNP11200706-201206

main53812-52290iNNP10200906-201206

53813BEXTENSION, FRONT FENDER, RH

main53813-52020iNNP1#200407-201206

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52100iNNP1#200407-200706

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-52070iNNP1#200407-200706

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-52070iNNP1#200407-201206

9011906137

main90119-06137

9046710162

main90467-10162

13 parts on this diagram · 2 diagrams in section
