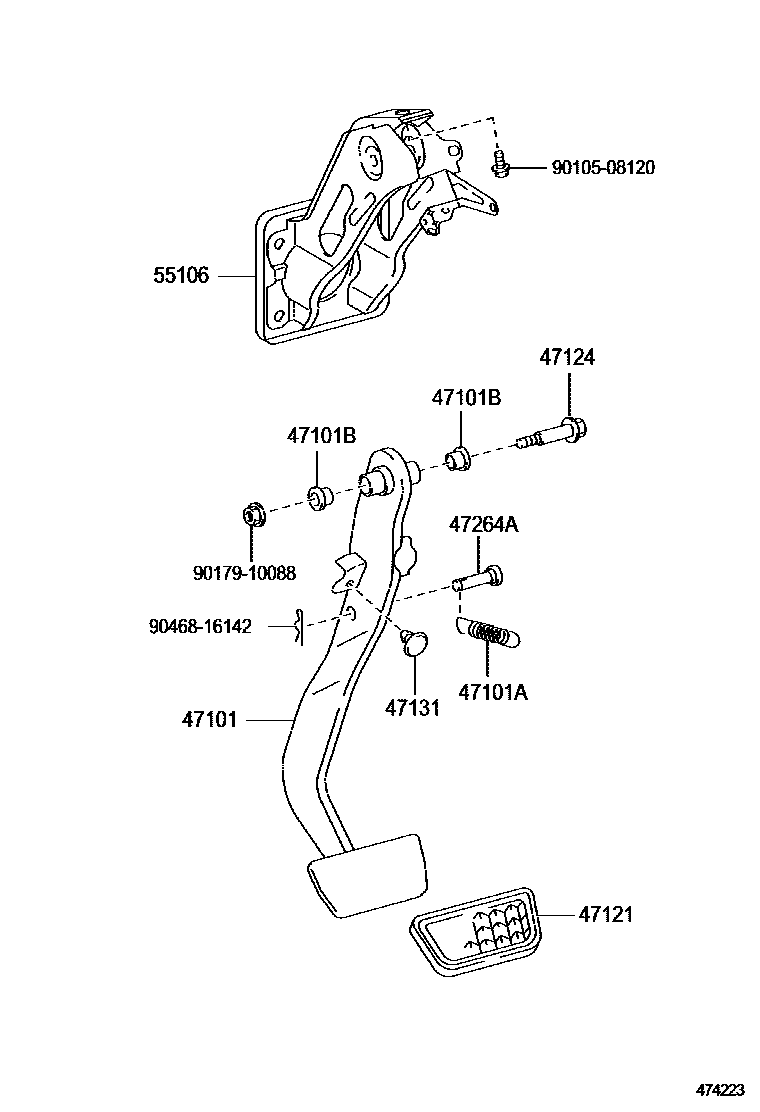

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-52220iNNP1#200407-200706

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-16072iNNP1#200407-200706

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iNNP1#200407-200706

47121PAD, BRAKE PEDAL

main47121-52010iNNP1#200407-200706

47124SHAFT, BRAKE PEDAL

main90109-10167iNNP1#200407-200706

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06049iNNP1#200407-200706

47264APIN(FOR PUSH ROD)

main90249-08297iNNP1#200407-200706

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-52110iNNP1#200407-200706

9010508120

main90105-08120

9017910088

main90179-10088

9046816142

main90468-16142

11 parts on this diagram · 1 diagram in section
