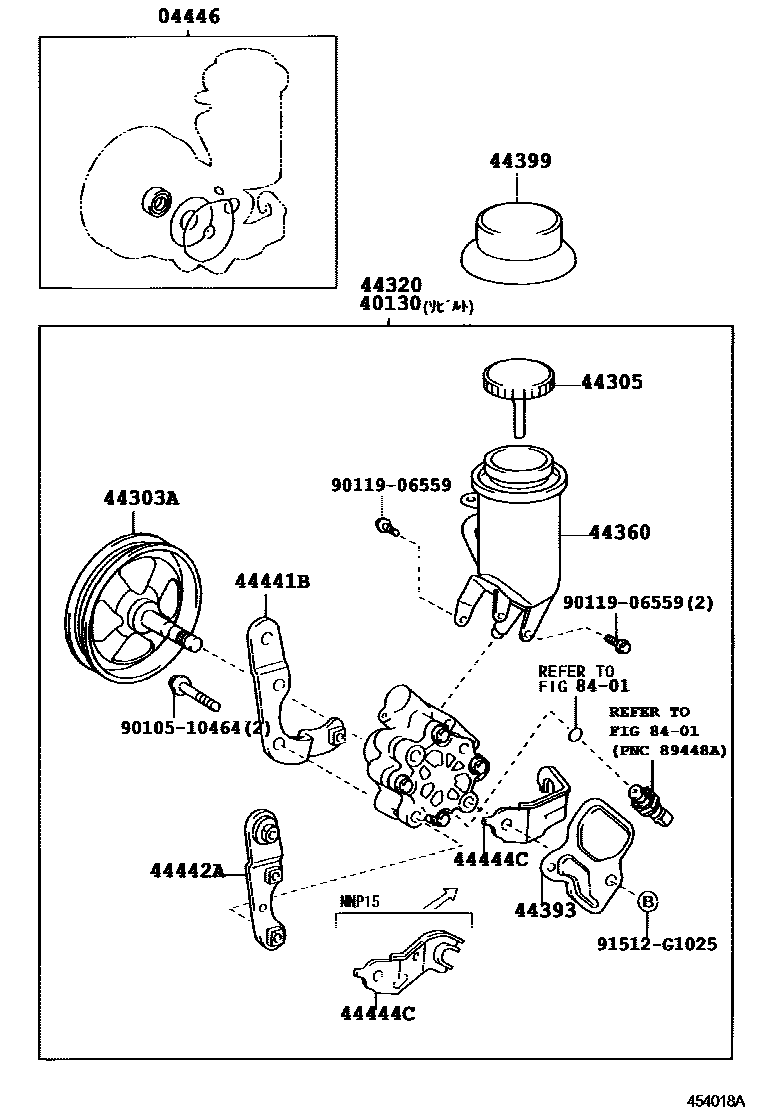

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iNNP1#¥970200407-200706

40130PUMP ASSY,VANE REBUILT

main40130-52050iNNP10,11¥73,600200407-200706

sub44310-52050¥105,000

main40130-52300iNNP15¥73,600200601-200706

sub44310-52300¥105,000

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-52020iNNP1#¥8,100200407-200706

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-50010iNNP1#¥2,030200407-200802

sub44305-50020¥2,030

main44305-50020iNNP1#¥2,030200803

44320PUMP ASSY, VANE

main44310-52050iNNP10,11¥105,000200407-200706

main44310-52300iNNP15¥105,000200601-200706

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-52020iNNP1#¥10,200200407-200706

44393INSULATOR, POWER STEERING PUMP HEAT

main44393-52010iNNP1#¥500200407-200706

main44393-52040iNNP1#¥500200707

44399COVER, VANE PUMP OIL RESERVOIR

main44399-52010iNNP1#¥320200407-200706

44441BBRACKET, PUMP, FRONT

main44441-52010iNNP1#¥840200407-200706

44442ABRACKET, VANE PUMP, REAR

main44442-52020iNNP1#¥850200407-200706

44444CSTAY, VANE PUMP, REAR

main44444-52010iNNP10,11¥460200407-200706

main44444-52020iNNP15¥550200601-200706

8401

9010510464

main90105-10464¥210

9011906559

main90119-06559¥100

91512G1025

main91512-G1025¥100

15 parts on this diagram · 1 diagram in section
