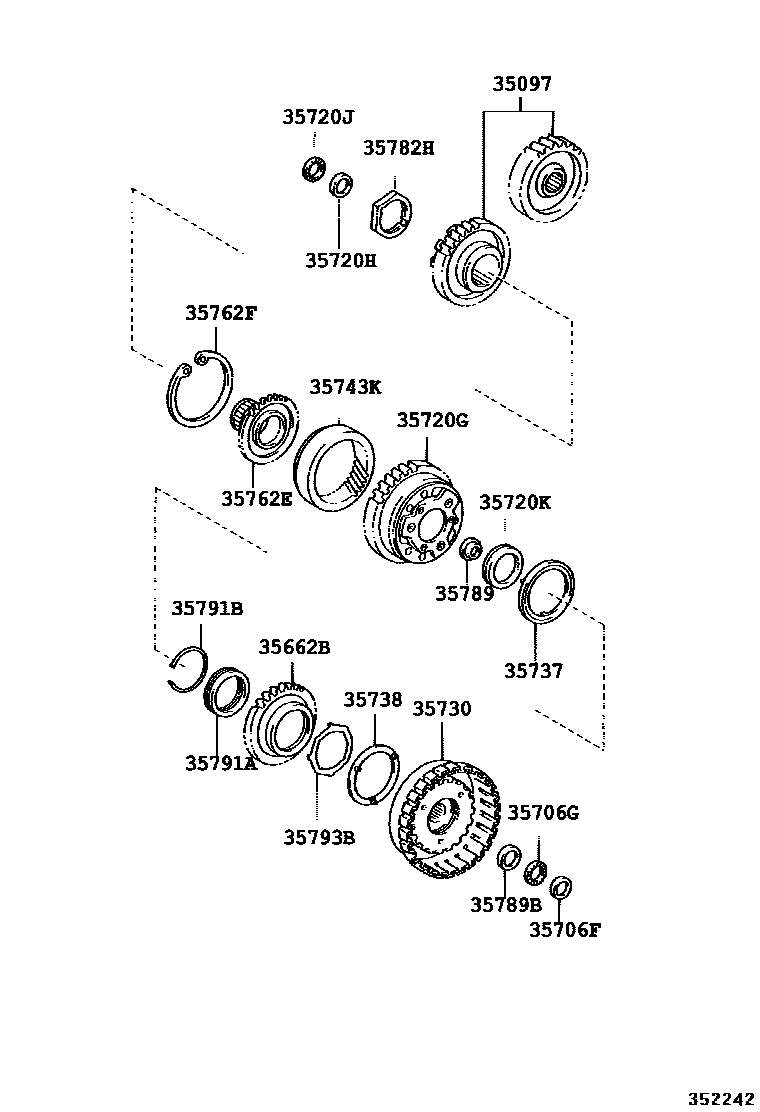

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1U441E 0002 1U340E,U340F

35097COUNTER GEAR KIT, AUTOMATIC TRANSAXLE

main35097-52011iNNP10200407-200706

35662BHUB, 2ND BRAKE

main35662-52010iNNP10200407-200706

35706FRACE, THRUST BEARING (FOR SUN GEAR REAR)

main35789-52050iNNP10200407-200706

35706GBEARING, THRUST (FOR SUN GEAR REAR)

main90374-18004iNNP10200407-200706

35720GGEAR ASSY, PLANETARY

main35720-52010iNNP10200407-201107

sub35720-52070

main35720-52020iNNP11200407-200508

sub35720-52021

main35720-52021iNNP11,15200508-201101

sub35720-52022

main35720-52022iNNP11,15201101

main35720-52070iNNP10201107

35720HRACE, THRUST BEARING(FOR PLANETARY GEAR)

main35789-52010iNNP10200407-200706

35720JBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT)

main90374-17001iNNP10200407-200706

main90374-33006iNNP11,15200407-200706

35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)

main90374-33007iNNP11,15200407-200706

main90374-42006iNNP10200407-200706

35730GEAR ASSY, REAR PLANETARY SUN

main35730-52010iNNP10200407-200706

main35730-52020iNNP11,15200407-200706

35737WASHER, PLANETARY CARRIER THRUST

main35737-52010iNNP10200407-200706

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-52020iNNP10200407-200706

35743KGEAR, PLANETARY RING

main35743-52010iNNP10200407-200706

35762EFLANGE, PLANETARY RING GEAR

main35762-52010iNNP10200407-200706

35762FRING, HOLE SNAP(FOR PLANETARY RING GEAR)

main90520-89003iNNP10200407-200706

35782HNUT(FOR COUNTER DRIVE GEAR)

main90179-40009iNNP11,15200407-200706

main90179-44001iNNP10200407-200706

35789RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT)

main35789-52020iNNP10200407-200706

35789BRACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE REAR)

main35789-52040iNNP10200407-200706

35791ACLUTCH, 1 WAY, NO.1

main35791-52010iNNP10200407-200706

35791BRING, HOLE SNAP(FOR 1 WAY CLUTCH)

main90520-69003iNNP10200407-200706

35793BRETAINER, 1 WAY CLUTCH

main35793-52010iNNP10200407-200706

20 parts on this diagram · 2 diagrams in section
