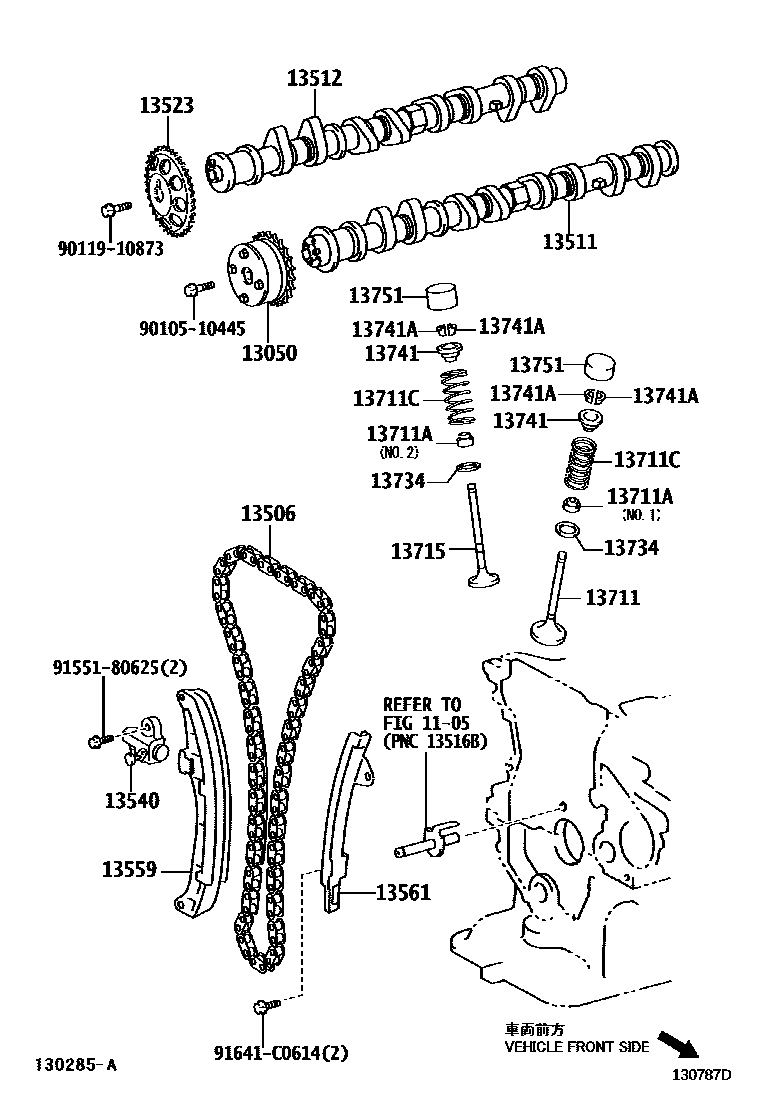

CAMSHAFT & VALVE

1105

13050GEAR ASSY, CAMSHAFT TIMING

main13050-21040i1NZFE,2NZFE..NNP1#200407-200602

main13050-21041i1NZFE,2NZFE..NNP1#200602-200706

13506CHAIN SUB-ASSY

main13506-21020i1NZFE..NNP11,15200706-201110

sub13506-40010

main13506-21030i2NZFE..NNP10200407-200706

main13506-21050i1NZFE..NNP11,15201110

13511CAMSHAFT

main13501-21030i1NZFE,2NZFE..NNP1#200407-200706

13512CAMSHAFT, NO.2

main13502-21021i2NZFE..NNP10200407-200706

main13502-21031i1NZFE..NNP11,15200407-200706

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-22020i1NZFE,2NZFE..NNP1#200407-200706

13540TENSIONER ASSY, CHAIN, NO.1

main13540-21020i1NZFE,2NZFE..NNP1#200706

13559SLIPPER, CHAIN TENSIONER

main13559-21010i1NZFE,2NZFE..NNP1#200706

sub13559-21030

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-21010i1NZFE,2NZFE..NNP1#200407-200706

sub13561-21040

13711VALVE, INTAKE

main13711-21010×8i1NZFE,2NZFE..NNP1#200407-200706

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02092×8i1NZFE,2NZFE..NNP1#200706

sub90913-02128

main90913-02093×8i1NZFE,2NZFE..NNP1#200407-200706

13711CSPRING, COMPRESSION(FOR OUTER)

main90905-01049×16i1NZFE,2NZFE..NNP1#200407-200706

sub90501-27040

13715VALVE, EXHAUST

main13715-21010×8i1NZFE,2NZFE..NNP1#200407-200706

13734SEAT, VALVE SPRING

main13734-74010×16i1NZFE,2NZFE..NNP1#200407-200706

13741RETAINER, VALVE SPRING

main13741-22021×16i1NZFE,2NZFE..NNP1#200706

13741ALOCK, VALVE SPRING RETAINER

main90913-03031×32i1NZFE,2NZFE..NNP1#200407-200706

13751LIFTER, VALVE

main13751-46030×16i1NZFE,2NZFE..NNP1#200706

main13751-46040×16i1NZFE,2NZFE..NNP1#200706

main13751-46050×16i1NZFE,2NZFE..NNP1#200407-200706

main13751-46060×16i1NZFE,2NZFE..NNP1#200407-200706

main13751-46070×16i1NZFE,2NZFE..NNP1#200407-200706

main13751-46080×16i1NZFE,2NZFE..NNP1#200407-200706

main13751-46090×16i1NZFE,2NZFE..NNP1#200706

main13751-46100×16i1NZFE,2NZFE..NNP1#200706

main13751-46110×16i1NZFE,2NZFE..NNP1#200706

main13751-46120×16i1NZFE,2NZFE..NNP1#200407-200706

main13751-46130×16i1NZFE,2NZFE..NNP1#200407-200706

main13751-46140×16i1NZFE,2NZFE..NNP1#200407-200706

main13751-46150×16i1NZFE,2NZFE..NNP1#200407-200706

main13751-46160×16i1NZFE,2NZFE..NNP1#200706

main13751-46170×16i1NZFE,2NZFE..NNP1#200407-200706

main13751-46180×16i1NZFE,2NZFE..NNP1#200706

main13751-46190×16i1NZFE,2NZFE..NNP1#200407-200706

main13751-46200×16i1NZFE,2NZFE..NNP1#200407-200706

main13751-46210×16i1NZFE,2NZFE..NNP1#200706

main13751-46220×16i1NZFE,2NZFE..NNP1#200407-200706

main13751-46230×16i1NZFE,2NZFE..NNP1#200706

main13751-46240×16i1NZFE,2NZFE..NNP1#200407-200706

main13751-46250×16i1NZFE,2NZFE..NNP1#200706

main13751-46260×16i1NZFE,2NZFE..NNP1#200706

main13751-46270×16i1NZFE,2NZFE..NNP1#200706

main13751-46280×16i1NZFE,2NZFE..NNP1#200407-200706

main13751-46290×16i1NZFE,2NZFE..NNP1#200407-200706

main13751-46300×16i1NZFE,2NZFE..NNP1#200706

main13751-46310×16i1NZFE,2NZFE..NNP1#200706

main13751-46320×16i1NZFE,2NZFE..NNP1#200706

main13751-46330×16i1NZFE,2NZFE..NNP1#200706

main13751-46340×16i1NZFE,2NZFE..NNP1#200407-200706

main13751-46350×16i1NZFE,2NZFE..NNP1#200706

main13751-46360×16i1NZFE,2NZFE..NNP1#200407-200706

main13751-46370×16i1NZFE,2NZFE..NNP1#200407-200706

9010510445

main90105-10445

9011910873

main90119-10873

9155180625

main91551-80625

91641C0614

main91641-C0614

21 parts on this diagram · 1 diagram in section
