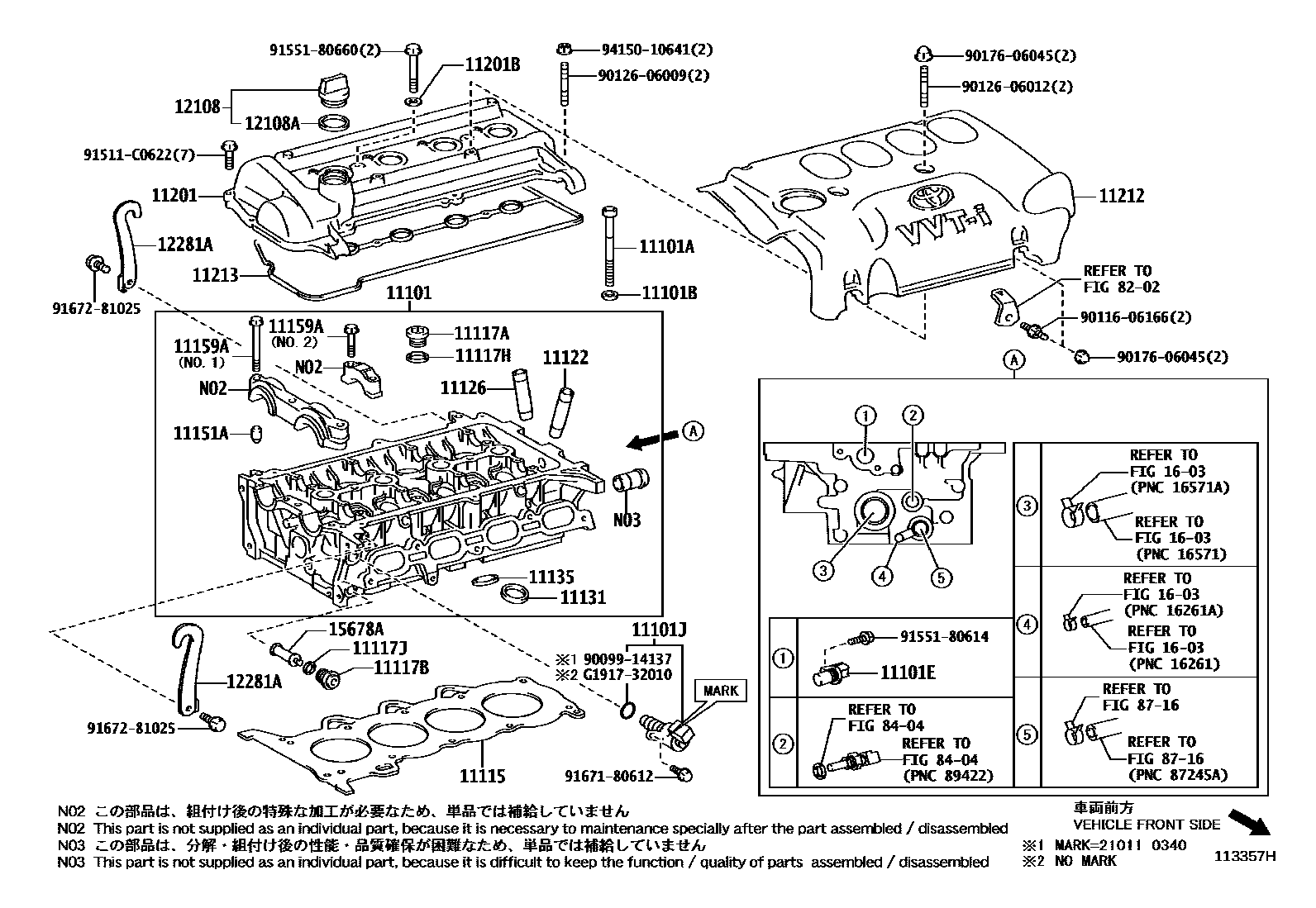

CYLINDER HEAD

11101HEAD SUB-ASSY, CYLINDER

main11101-21033i1NZFE,2NZFE..NNP1#200407-201110

sub11101-21034

main11101-21034i1NZFE,2NZFE..NNP1#201110

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02126i1NZFE,2NZFE..NNP1#200407-200701

sub90910-02170

main90910-02170i1NZFE,2NZFE..NNP1#200701-200706

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-09024i1NZFE,2NZFE..NNP1#200407-200706

11101ESENSOR, CAM POSITION

main90919-05024i1NZFE,2NZFE..NNP1#200407-200706

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-21011i1NZFE,2NZFE..NNP1#200407-200706

11115GASKET, CYLINDER HEAD

main11115-21050i1NZFE,2NZFE..NNP1#200407-201110

sub11115-21080

main11115-21080i1NZFE,2NZFE..NNP1#201110-201204

sub11115-21090

main11115-21090i1NZFE,2NZFE..NNP1#201204

sub11115-21091

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90341-20002i1NZFE,2NZFE..NNP1#200407-200706

11117BPLUG, W/HEAD TAPER SCREW, NO.2

main90341-14013i1NZFE,2NZFE..NNP1#200407-200706

11117HGASKET(FOR WATER HOLE)

main90430-20004i1NZFE,2NZFE..NNP1#200407-200706

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-14009i1NZFE,2NZFE..NNP1#200407-200706

11122BUSH, INTAKE VALVE GUIDE

main11122-21010i1NZFE,2NZFE..NNP1#200407-200706

main11123-21010i1NZFE,2NZFE..NNP1#200407-200706

11126BUSH, EXHAUST VALVE GUIDE

main11122-21010i1NZFE,2NZFE..NNP1#200407-200706

main11123-21010i1NZFE,2NZFE..NNP1#200407-200706

11131SEAT, INTAKE VALVE

main11131-21020i1NZFE,2NZFE..NNP1#200407-200706

sub11131-21021

main11132-21020i1NZFE,2NZFE..NNP1#200407-200706

sub11132-21021

11135SEAT, EXHAUST VALVE

main11135-21040i1NZFE,2NZFE..NNP1#200407-200706

sub11135-21041

main11136-21040i1NZFE,2NZFE..NNP1#200407-200706

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90250-06001i1NZFE,2NZFE..NNP1#200407-200706

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90109-06080i1NZFE,2NZFE..NNP1#200407-200706

main90119-08A29i1NZFE,2NZFE..NNP1#200407-200706

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-21050i1NZFE,2NZFE..NNP1#200407-201206

sub11201-21051

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-06013i1NZFE,2NZFE..NNP1#200407-200706

11212COVER, CYLINDER HEAD, NO.2

main11212-21030i1NZFE,2NZFE..NNP1#200407-200410

sub11212-21031

main11212-21031i1NZFE,2NZFE..NNP1#200410-200509

sub11212-21032

main11212-21032i1NZFE,2NZFE..NNP1#200510-201008

sub11212-21060

main11212-21060i1NZFE,2NZFE..NNP1#201008

11213GASKET, CYLINDER HEAD COVER

main11213-21011i1NZFE,2NZFE..NNP1#200407-200706

12108CAP SUB-ASSY, OIL FILLER

main12180-21010i1NZFE,2NZFE..NNP1#200407-201011

main12180-38010i1NZFE,2NZFE..NNP1#201011

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001i1NZFE,2NZFE..NNP1#201011

main90430-37140i1NZFE,2NZFE..NNP1#200407-201011

12281AHANGER, ENGINE, NO.1

main12281-21010i1NZFE,2NZFE..NNP1#200407-200706

15678AFILTER, OIL CONTROL VALVE

main15678-21010i1NZFE,2NZFE..NNP1#200407-200706

1603

8202

8404

8716

9009914137

main90099-14137

9011606166

main90116-06166

9012606009

main90126-06009

9012606012

main90126-06012

9017606045

main90176-06045

91511C0622

main91511-C0622

9155180614

main91551-80614

9155180660

main91551-80660

9167180612

main91671-80612

9167281025

main91672-81025

9415010641

main94150-10641

G191732010

mainG1917-32010

40 parts on this diagram · 1 diagram in section
