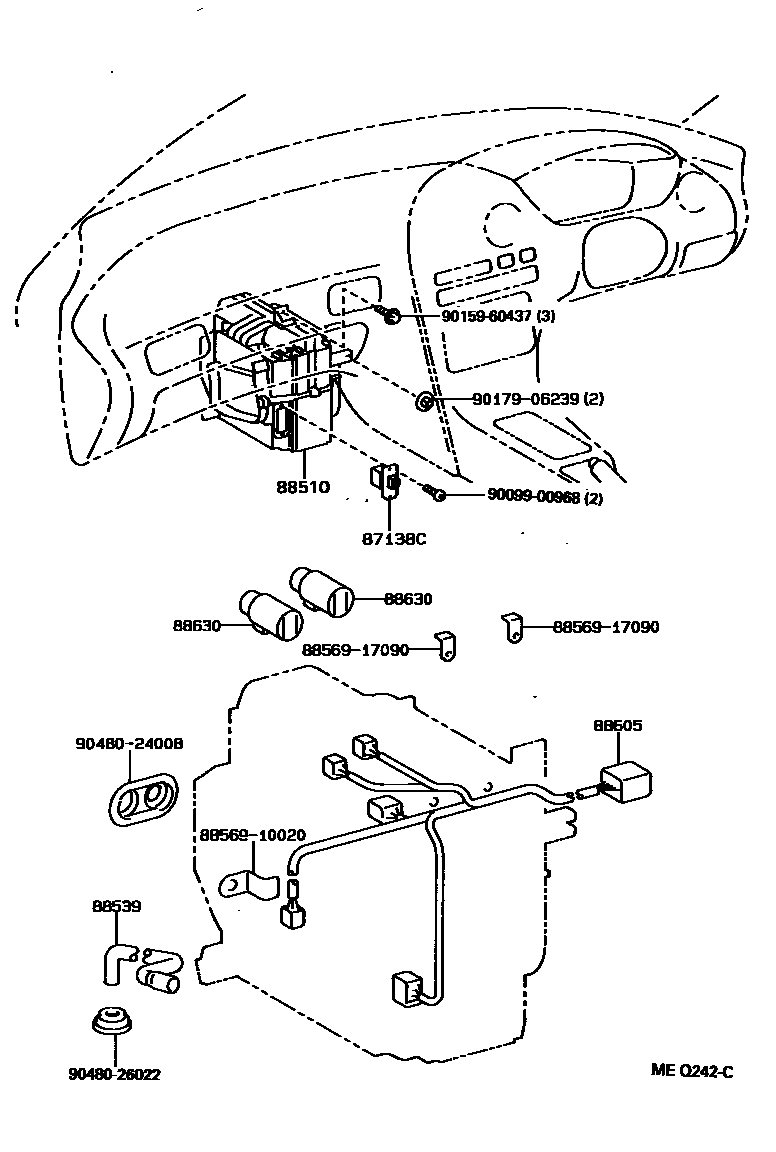

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

87138CRESISTOR, BLOWER

main87138-18020iEXY10199003-199512

88510UNIT ASSY, COOLER

main88510-10240iEXY10199003-199311

main88510-16480iEXY10199311-199512

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-10090iEXY10199003-199512

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-18020iEXY10199003-199312

main88605-18040iEXY10199312-199512

sub88605-18030

88630RELAY ASSY, COOLER

main88630-95702iEXY10199003-199512

8856910020CLAMP (FOR COOLER RELAY)

main88569-10020

8856917090CLAMP (FOR COOLER RELAY)

main88569-17090

9009900968

main90099-00968

9015960437

main90159-60437

9017906239

main90179-06239

9048024008

main90480-24008

9048026022

main90480-26022

12 parts on this diagram · 2 diagrams in section
