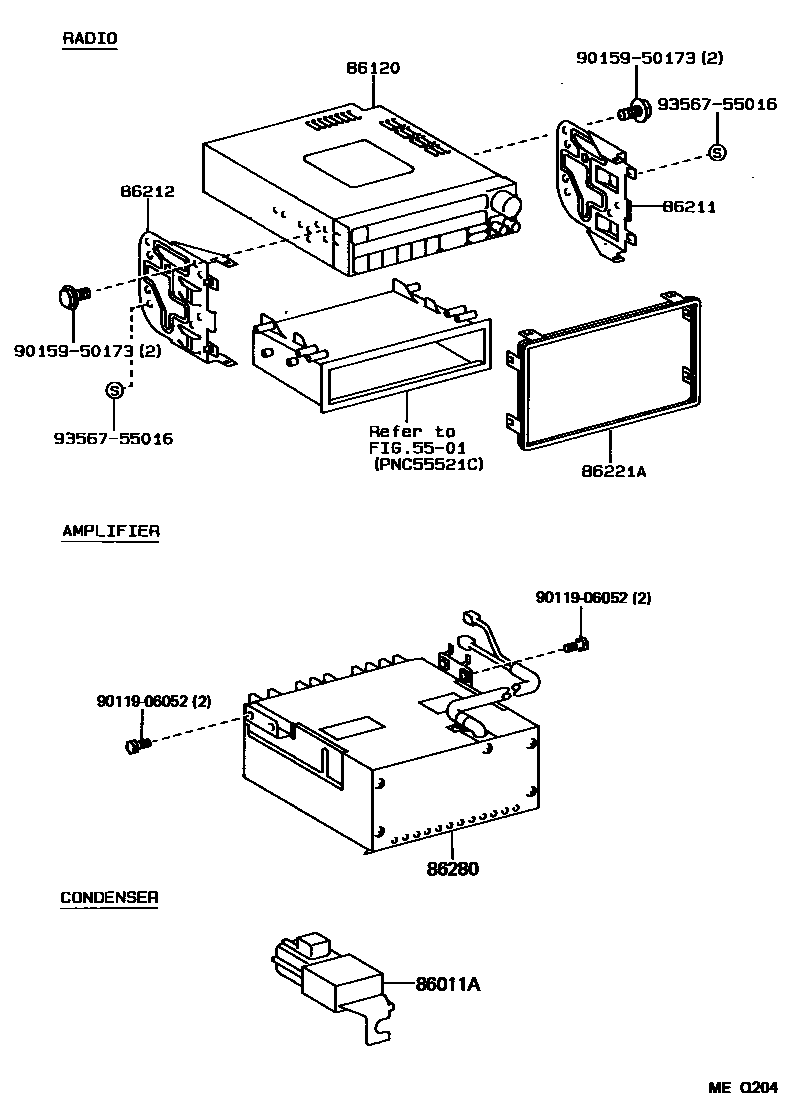

RADIO RECEIVER & AMPLIFIER & CONDENSER

5501

86011ACONDENSER, RADIO SETTING

main90980-04079iEXY10199003-199512

86120RECEIVER ASSY, RADIO

main86120-18010iEXY10199003-199512

86211BRACKET, RADIO, NO.1

main86211-18010iEXY10199003-199512

86212BRACKET, RADIO, NO.2

main86212-18010iEXY10199003-199512

86221APANEL, RADIO RECEIVER

main86221-18010iEXY10199003-199512

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-18010iEXY10199003-199512

9011906052

main90119-06052

9015950173

main90159-50173

9356755016

main93567-55016

10 parts on this diagram · 1 diagram in section
