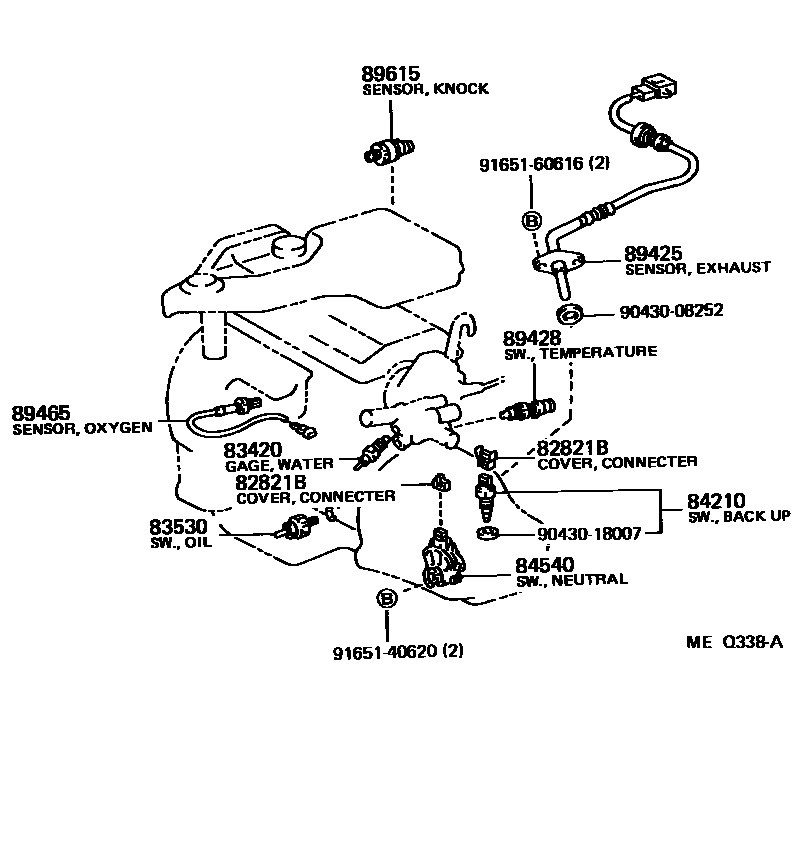

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1

82821BCOVER, CONNECTOR

main82821-12250iEXY10..MTM199003-199203

main82821-12251iEXY10..MTM199203-199512

main82821-20170iEXY10..ATM199003-199206

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iEXY10199003-199512

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-30080iEXY10199003-199206

sub83530-60040

main83530-30090iEXY10199206-199512

sub83530-60020

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iEXY10..MTM199003-199512

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-16030iEXY10..ATM199003-199206

main84540-16040iEXY10..ATM199206-199512

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-19435iEXY10199003-199206

main89425-19495iEXY10199206-199512

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iEXY10199206-199512

main89428-20060iEXY10199003-199206

89465SENSOR, OXYGEN

main89465-10020iEXY10199003-199512

89615SENSOR, KNOCK CONTROL

main89615-22030iEXY10199106-199512

MATSUSHITA

main89615-22040iEXY10199106-199512

NIPPON DENSO

main89615-35040iEXY10199003-199106

9043008252

main90430-08252

9043018007

main90430-18007

9165140620

main91651-40620

9165160616

main91651-60616

13 parts on this diagram · 5 diagrams in section
