HEADLAMP

8104

81110HEADLAMP ASSY, RH

main81110-18010iEXY10199003-199512

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13017iEXY10199003-199512

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13027iEXY10199003-199512

81135UNIT ASSY, HEADLAMP, RH

main81130-18010iEXY10199003-199512

81144COVER, HEADLAMP, NO.1

main90075-99017iEXY10199003-199512

81145COVER, HEADLAMP, NO.2

main90075-99008iEXY10199003-199512

81150HEADLAMP ASSY, LH

main81160-18010iEXY10199003-199512

81175UNIT ASSY, HEADLAMP, LH

main81170-18010iEXY10199003-199512

5345512040CLAMP, HOOD SUPPORT ROD

main53455-12040

9007502403

main90075-02403

9007511454

main90075-11454

9007543103

main90075-43103

9011906195

main90119-06195

9015960078

main90159-60078

9018906006

main90189-06006

9095901402

main90959-01402

9354015014

main93540-15014

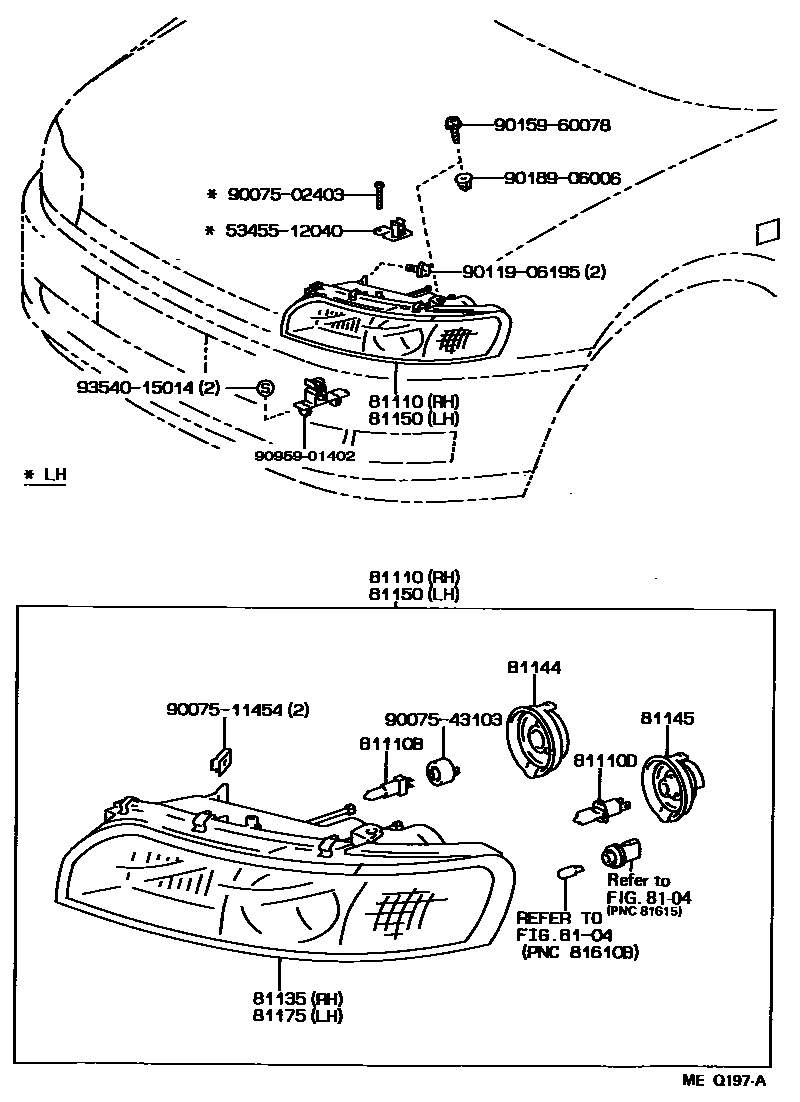

18 parts on this diagram · 1 diagram in section
