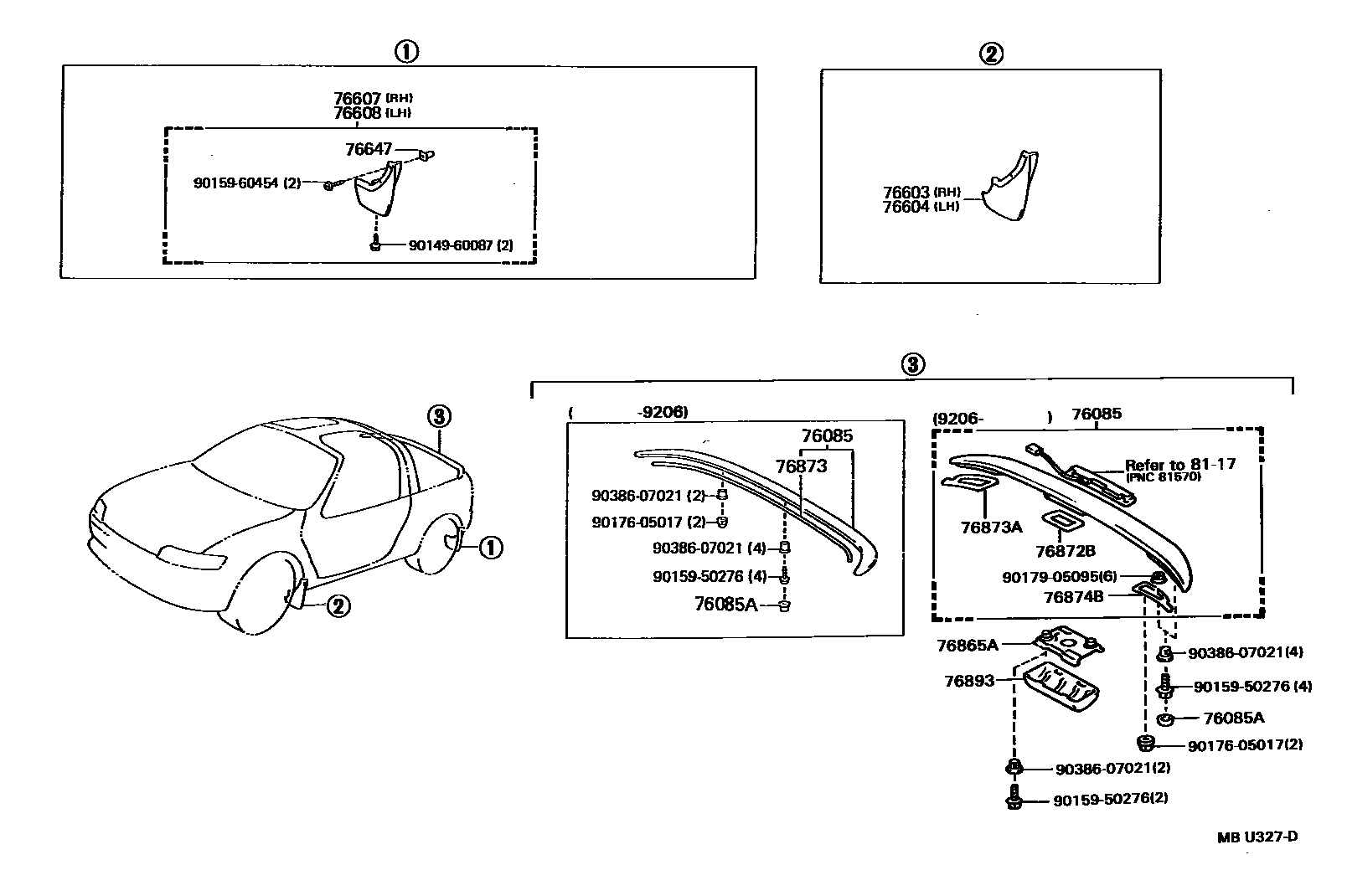

MUDGUARD & SPOILER
76085ACAP(FOR REAR SPOILER)
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
WINE RED MICA,3J8
DARK GRAY M,188
MED BLUE M,8H7
L. TURQUOISE M,743
GRENISH YELLOW M,569
L. SILVER,189
BLACK,202
ORANGE,3K6
RED,3E6
TURQUOISE M.M,746
LT.BLUE M,8G6
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
WINE RED MICA,3J8
DARK GRAY M,188
MED BLUE M,8H7
L. TURQUOISE M,743
GRENISH YELLOW M,569
L. SILVER,189
BLACK,202
ORANGE,3K6
RED,3E6
TURQUOISE M.M,746
LT.BLUE M,8G6
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
WINE RED MICA,3J8
DARK GRAY M,188
MED BLUE M,8H7
L. TURQUOISE M,743
GRENISH YELLOW M,569
L. SILVER,189
BLACK,202
ORANGE,3K6
RED,3E6
TURQUOISE M.M,746
LT.BLUE M,8G6
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
WINE RED MICA,3J8
DARK GRAY M,188
MED BLUE M,8H7
L. TURQUOISE M,743
GRNISH YELLOW M,569
L. SILVER,189
BLACK,202
ORANGE,3K6
RED,3E6
TURQUOISE M.M,746
LT.BLUE M,8G6
76647RETAINER, QUARTER PANEL REAR MUDGUARD
76865ARETAINER, SIDE MUDGUARD
76872BPROTECTOR, REAR SPOILER, CENTER
76873PROTECTOR, REAR SPOILER, NO.2
76873APROTECTOR, REAR SPOILER, RH
76874BPROTECTOR, REAR SPOILER, LH
76893COVER, REAR SPOILER, NO.1
8117
9014960087
main90149-60087
9015950276
main90159-50276
9015960454
main90159-60454
9017605017
main90176-05017
9017905095
main90179-05095
9038607021
main90386-07021
20 parts on this diagram · 1 diagram in section
