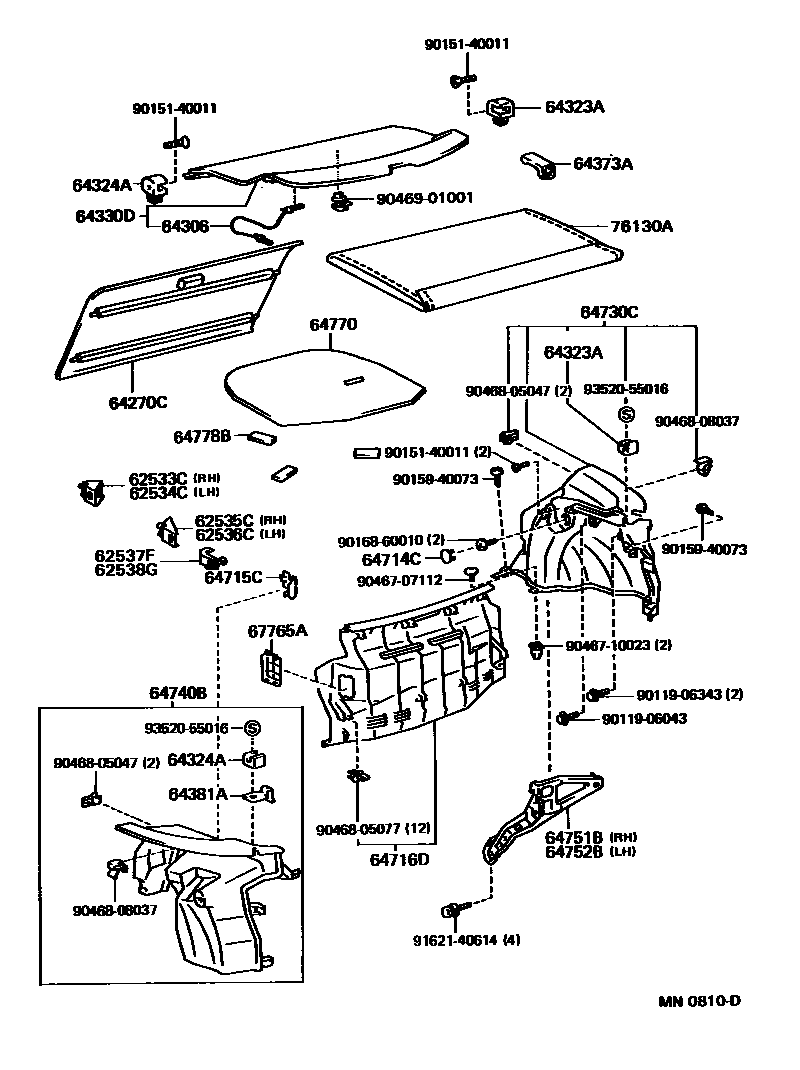

DECK BOARD & DECK TRIM COVER
62533CBRACKET, DECK SIDE TRIM RH, FRONT
62534CBRACKET, DECK SIDE TRIM LH, FRONT
62535CBRACKET, DECK SIDE TRIM RH, REAR
62536CBRACKET, DECK SIDE TRIM LH, REAR
62537FBRACKET, SIDE TRIM, NO.5
62538GBRACKET, SIDE TRIM, NO.6
64270CBOARD ASSY, ROOM PARTITION
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64323ACLAMP, PACKAGE TRAY TRIM, RH
FRONT
REAR
64324ACLAMP, PACKAGE TRAY TRIM, LH
REAR
FRONT
64330DPANEL ASSY, PACKAGE TRAY TRIM
64373ASTOPPER, PACKAGE TRAY TRIM
64381AHANGER, PACKAGE TRAY TRIM
64714CCOVER, DECK SIDE TRIM, RH
64716DCOVER, DECK TRIM, REAR
64730CBOARD, DECK TRIM SIDE, RH
LIGHT GRAY,TRIM1#
64740BBOARD, DECK TRIM SIDE, LH
LIGHT GRAY,TRIM1#
64751BBRACKET, SPEAKER SET, NO.1 RH
64752BBRACKET, SPEAKER SET, NO.1 LH
64770COVER ASSY, SPARE WHEEL
64778BPROTECTOR, SPARE WHEEL
67765ACOVER, BACK DOOR SERVICE HOLE, NO.1
76130ABAG ASSY, SUNSHADE TRIM
9011906043
main90119-06043
9011906343
main90119-06343
9015140011
main90151-40011
9015940073
main90159-40073
9016860010
main90168-60010
9046707112
main90467-07112
9046710023
main90467-10023
9046805047
main90468-05047
9046805077
main90468-05077
9046808037
main90468-08037
9046901001
main90469-01001
9162140614
main91621-40614
9352055016
main93520-55016
37 parts on this diagram · 1 diagram in section
