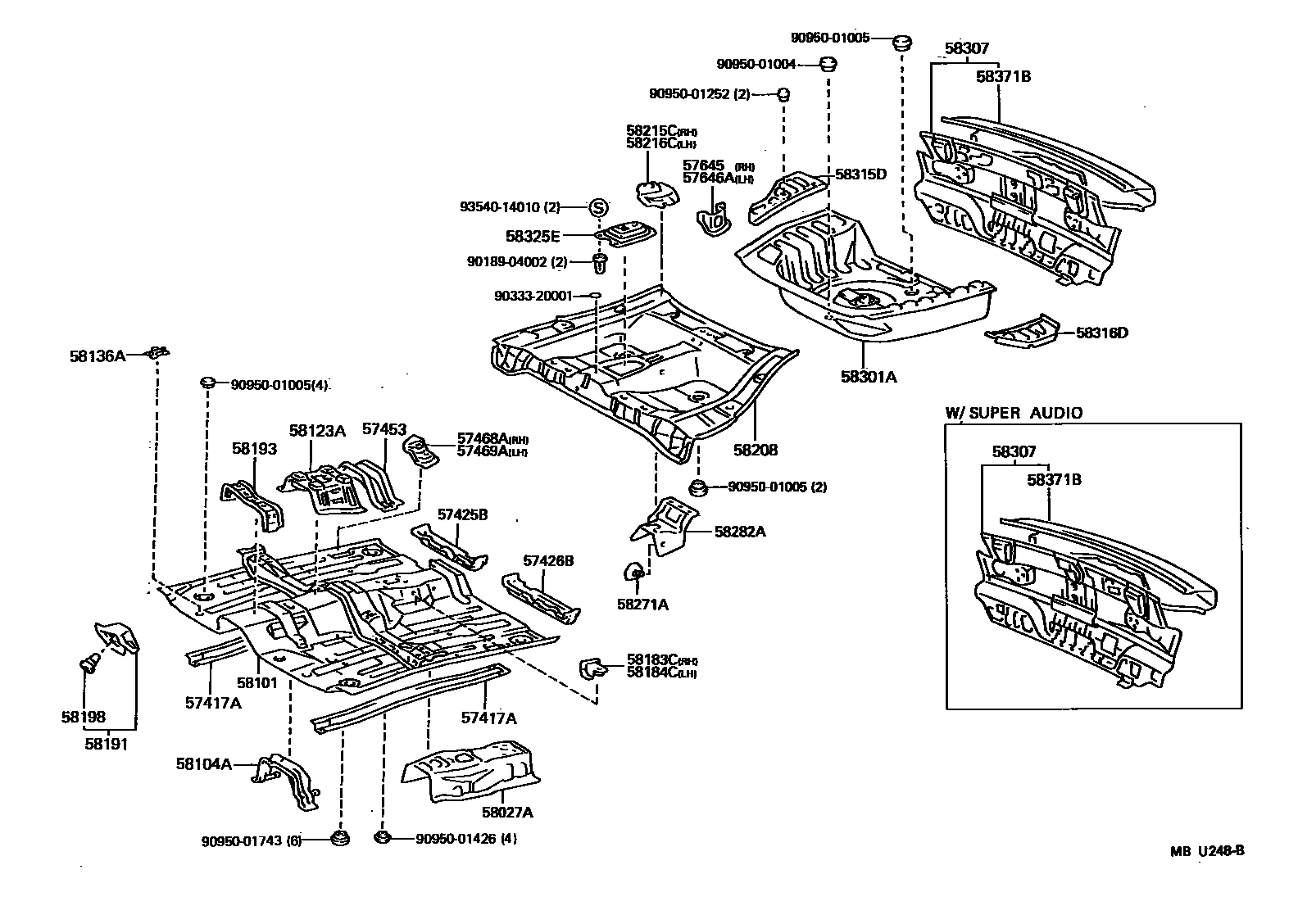

FLOOR PAN & LOWER BACK PANEL
57417AREINFORCEMENT, FRONT FLOOR UNDER
57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH
57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH
57453MEMBER, FRONT FLOOR CROSS, NO.3
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
57645REINFORCEMENT, REAR SIDE MEMBER, RH
57646AREINFORCEMENT, REAR SIDE MEMBER, LH
58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58101PAN SUB-ASSY, FRONT FLOOR
58104ABRACKET SUB-ASSY, CATALYTIC CONVERTER SUPPORT
58123ASUPPORT, SHIFT & SELECT LEVER
58136ACOVER, FRONT FLOOR SERVICE HOLE
58183CBRACKET, FRONT SEAT MOUNTING, INSIDE RH
58184CBRACKET, FRONT SEAT MOUNTING, INNER LH
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58198CLIP, FOOTREST
58208PAN, CENTER FLOOR
58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH
58216CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH
58271AREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3
58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58301APANEL SUB-ASSY, REAR FLOOR
58307PANEL SUB-ASSY, BODY LOWER BACK
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58371BPANEL, BODY LOWER BACK, OUTER
9018904002
9033320001
9095001004
9095001005
9095001252
9095001426
9095001743
9354014010
37 parts on this diagram · 1 diagram in section
