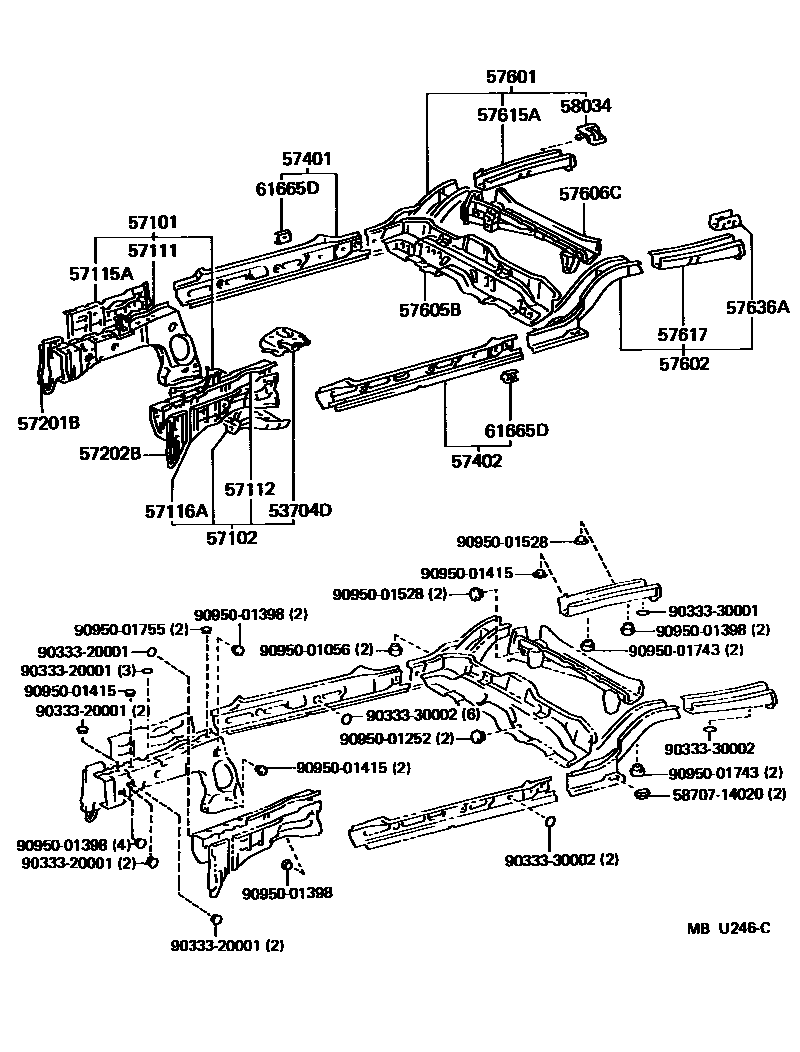

FLOOR SIDE MEMBER
53704DSUPPORT SUB-ASSY, BATTERY, LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH
57202BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57617MEMBER, REAR FLOOR SIDE, REAR LH
57636AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH
58034BRACKET SUB-ASSY, EXHAUST PIPE SUPPORT, REAR
61665DPLATE, SAFETY BELT ANCHORAGE
5870714020PLUG SET, HOLE
main58707-14020
9033320001
9033330001
main90333-30001
9033330002
9095001056
9095001252
9095001398
9095001415
9095001528
9095001743
9095001755
31 parts on this diagram · 1 diagram in section
