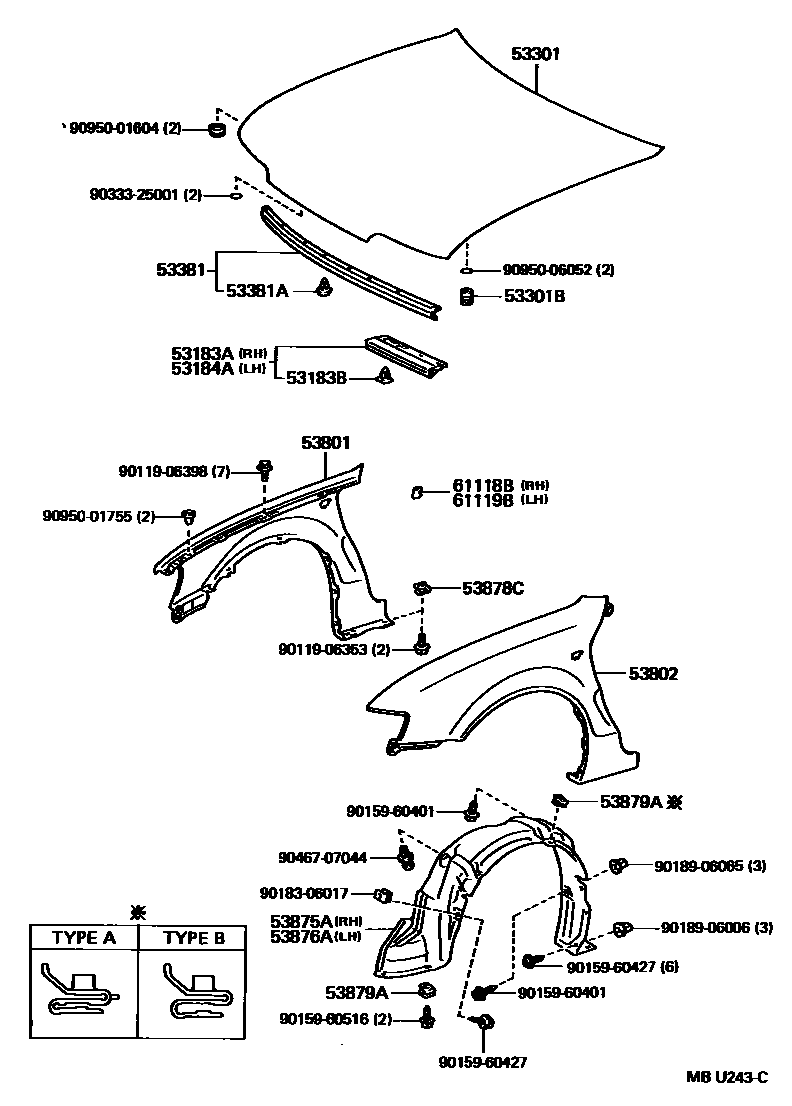

HOOD & FRONT FENDER

53183ASEAL, HEADLAMP COVER, RH

main53183-18010iEXY10199003-199512

53183BCLIP(FOR HEADLAMP COVER SEAL)

main90467-08044iEXY10199003-199512

sub90467-08011

53184ASEAL, HEADLAMP COVER, LH

main53184-18010iEXY10199003-199512

53301HOOD SUB-ASSY

main53301-18010iEXY10199003-199512

53301BCUSHION, HOOD BUMPER

main90541-15010iEXY10199003-199512

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-18010iEXY10199003-199512

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iEXY10199003-199512

53801FENDER SUB-ASSY, FRONT RH

main53801-18010iEXY10199003-199512

main53801-18020iEXY10199003-199512

53802FENDER SUB-ASSY, FRONT LH

main53802-18010iEXY10199003-199512

main53802-18020iEXY10199003-199512

53875ALINER, FRONT FENDER, RH

main53875-18010iEXY10199003-199512

53876ALINER, FRONT FENDER, LH

main53876-18010iEXY10199003-199512

53878CSPACER, FRONT FENDER

main53878-14020iEXY10199003-199512

53879ARETAINER, FRONT FENDER LINER

main53879-14010iEXY10199003-199512

main53879-17020iEXY10199003-199512

61118BSEAL, FRONT BODY PILLAR TO FRONT FENDER, RH

main61118-18010iEXY10199003-199512

61119BSEAL, FRONT BODY PILLAR TO FRONT FENDER, LH

main61118-18010iEXY10199003-199512

9011906353

main90119-06353

9011906398

main90119-06398

9015960401

main90159-60401

9015960427

main90159-60427

9015960516

main90159-60516

9018306017

main90183-06017

9018906006

main90189-06006

9018906065

main90189-06065

9033325001

main90333-25001

9046707044

main90467-07044

9095001604

main90950-01604

9095001755

main90950-01755

9095006052

main90950-06052

28 parts on this diagram · 1 diagram in section
