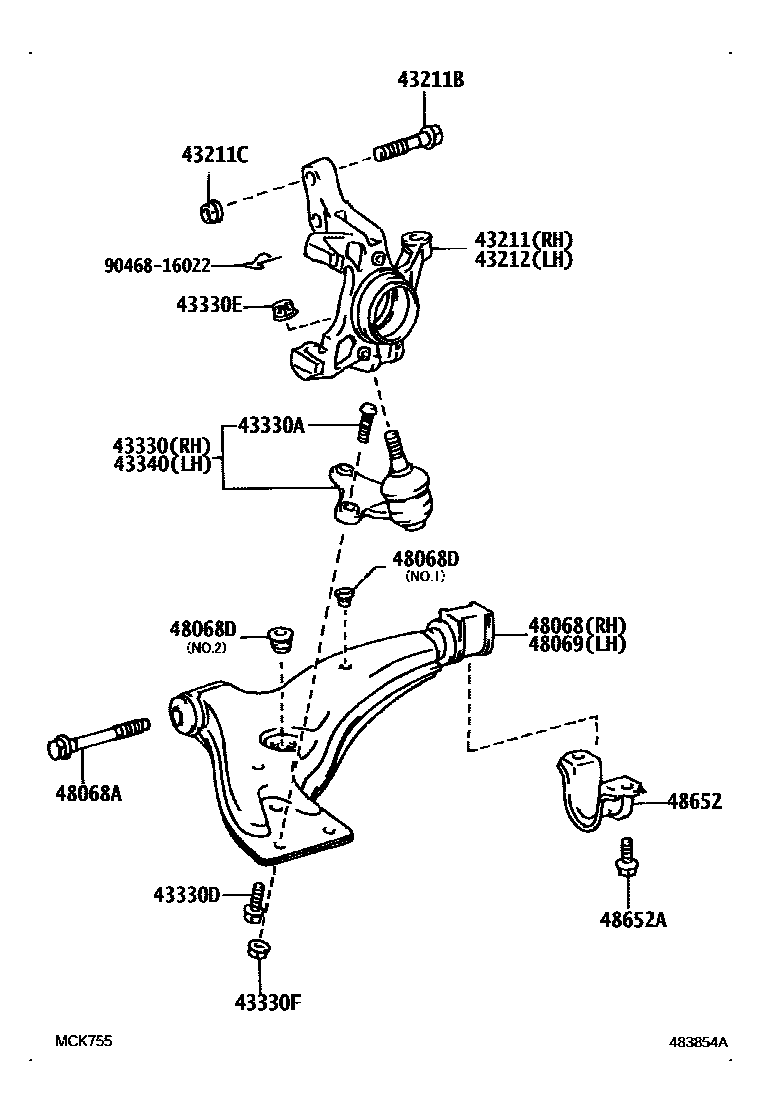

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-10060iEXY10199003-199201

main43211-10061iEXY10199201-199506

sub43211-10062

sub90389-16021

main43211-10062iEXY10199506-199512

sub43211-59045

main43211-10070iEXY10199003-199201

main43211-10071iEXY10199201-199512

sub43211-59045

43211BBOLT (FOR ABSORBER SETTING)

main90105-15001iEXY10199004-199512

main90105-15002iEXY10199003-199003

43211CNUT (FOR ABSORBER SETTING)

main90179-15001iEXY10199004-199512

main90179-15003iEXY10199003-199003

43212KNUCKLE, STEERING, LH

main43212-10040iEXY10199003-199201

main43212-10041iEXY10199201-199506

sub43212-10042

sub90389-16021

main43212-10042iEXY10199506-199512

sub43212-59045

main43212-10050iEXY10199003-199201

main43212-10051iEXY10199201-199512

sub43212-59045

43330JOINT ASSY, LOWER BALL, FRONT

main43330-19085iEXY10199003-199512

43330ASERRATION BOLT(FOR FRONT LOWER BALL JOINT)

main90114-10036iEXY10199003-199512

sub90114-10032

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90119-10407iEXY10199003-199512

43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)

main90171-12007iEXY10199003-199512

43330FNUT (FOR FRONT LOWER BALL JOINT SETTING)

main90179-10088iEXY10199003-199512

43340JOINT ASSY, LOWER BALL, FRONT

main43340-19025iEXY10199003-199512

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-10090iEXY10199003-199008

sub48068-16060

main48068-16060iEXY10199008-199512

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90119-12099iEXY10199003-199512

48068DPLUG, HOLE(FOR FRONT SUSPENSION LOWER ARM)

main90950-01414iEXY10199003-199512

main90950-01478iEXY10199003-199512

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-10070iEXY10199003-199008

sub48069-16060

main48069-16060iEXY10199008-199512

48652BRACKET, FRONT LOWER ARM

main48652-10020iEXY10199003-199512

48652ABOLT(FOR FRONT LOWER ARM BRACKET)

main90105-12061iEXY10199003-199512

9046816022

main90468-16022

17 parts on this diagram · 1 diagram in section
