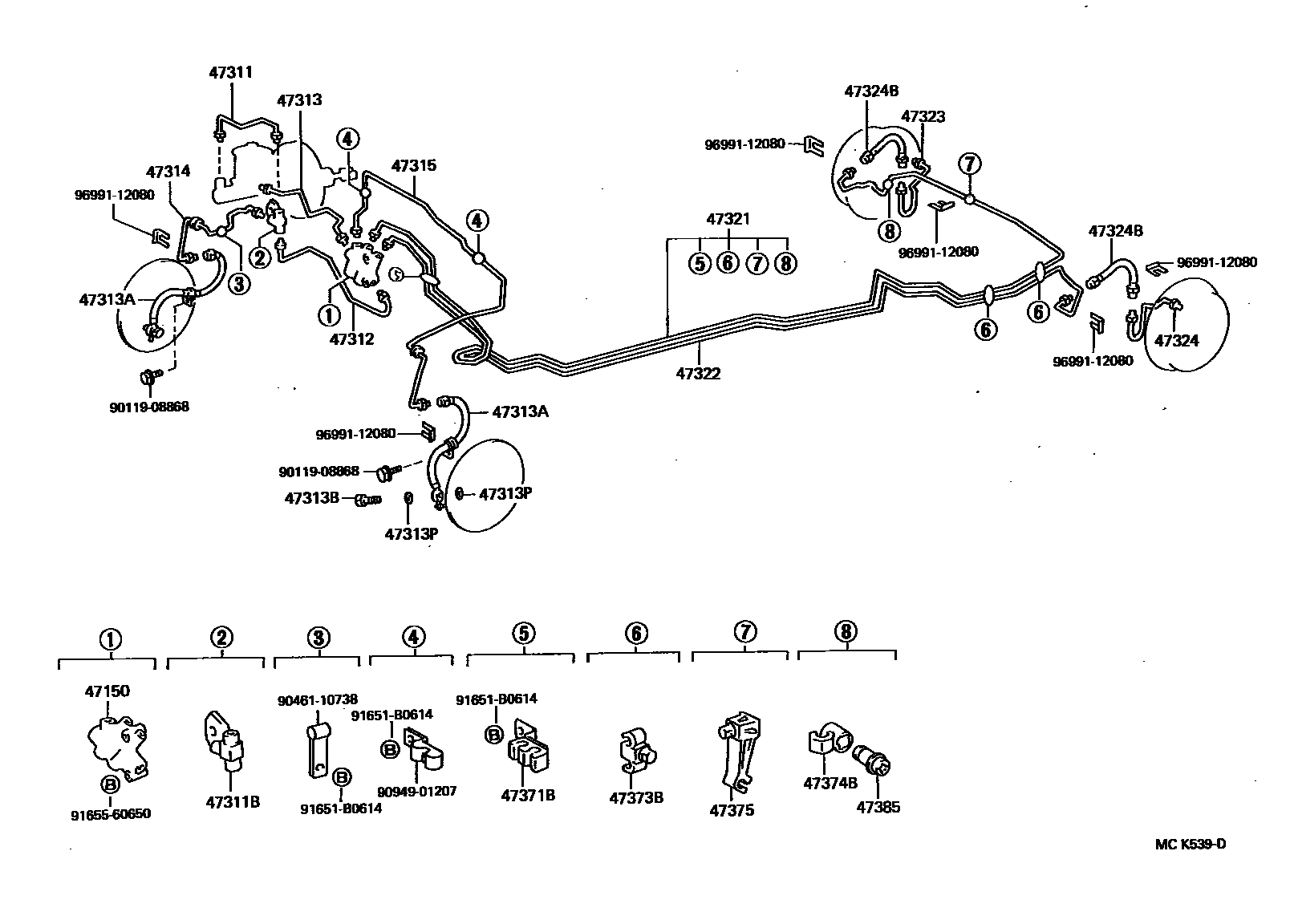

BRAKE TUBE & CLAMP

0001 1 0002 1��(������ ���-���� ����) 0003 1��(������ ���-���� ����)

47150VALVE ASSY, PROPORTIONING

main47150-10070iEXY10199003-199512

sub47150-44020

main47150-12060iEXY10199003-199512

sub47150-12270

47311TUBE, FRONT BRAKE, NO.1

main47311-10170iEXY10199003-199512

main47311-10180iEXY10199003-199512

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90413-10249iEXY10199003-199512

47312TUBE, FRONT BRAKE, NO.2

main47312-10240iEXY10199003-199512

main47312-10250iEXY10199003-199512

47313TUBE, FRONT BRAKE, NO.3

main47313-10300iEXY10199003-199512

main47313-10330iEXY10199003-199512

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02632iEXY10199003-199405

sub90947-02813

main90947-02633iEXY10199003-199405

sub90947-02814

main90947-02813iEXY10199405-199512

main90947-02814iEXY10199405-199512

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iEXY10199003-199512

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iEXY10199003-199512

47314TUBE, FRONT BRAKE, NO.4

main47314-10230iEXY10199003-199512

main47314-10250iEXY10199003-199512

47315TUBE, FRONT BRAKE, NO.5

main47315-18010iEXY10199003-199512

main47315-18020iEXY10199003-199512

47321TUBE, REAR BRAKE, NO.1

main47321-18010iEXY10199003-199512

47322TUBE, REAR BRAKE, NO.2

main47322-18010iEXY10199003-199512

47323TUBE, REAR BRAKE, NO.3

main47323-18010iEXY10199003-199512

main47323-18020iEXY10199003-199512

47324TUBE, REAR BRAKE, NO.4

main47324-18010iEXY10199003-199512

main47324-18020iEXY10199003-199512

47324BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)

main90947-02603iEXY10199003-199405

main90947-02637iEXY10199405-199512

47371BCLAMP, BRAKE TUBE, NO.6

main47371-30010iEXY10199003-199512

47373BCLAMP, BRAKE TUBE, NO.3

main47371-10080iEXY10199003-199512

47374BCLAMP, BRAKE TUBE, NO.4

main47371-10100iEXY10199003-199512

main47371-18010iEXY10199005-199008

sub47371-10100

47375CLAMP, BRAKE TUBE, NO.5

main47371-10110iEXY10199003-199512

47385NUT, BRAKE TUBE CLAMP

main47385-18010iEXY10199005-199008

9011908868

main90119-08868

9046110738

main90461-10738

9094901207

main90949-01207

91651B0614

main91651-B0614

9165560650

main91655-60650

9699112080

main96991-12080

26 parts on this diagram · 3 diagrams in section
