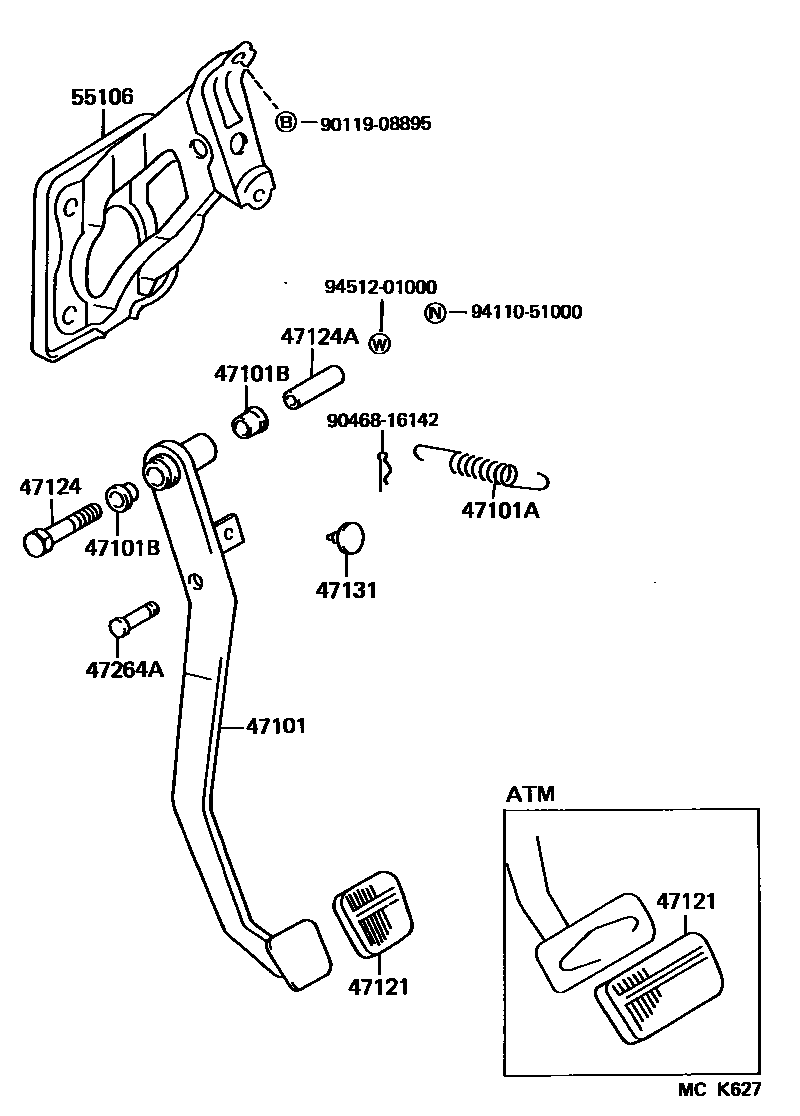

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-10210iEXY10..MTM199003-199512

main47101-10220iEXY10..ATM199003-199512

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14017iEXY10199003-199512

47101BBUSH(FOR BRAKE PEDAL)

main90386-13192iEXY10199003-199512

47121PAD, BRAKE PEDAL

main31321-14020iEXY10..MTM199003-199512

main47121-12020iEXY10..ATM199003-199512

47124SHAFT, BRAKE PEDAL

main90101-10015iEXY10199003-199512

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iEXY10199003-199512

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iEXY10199003-199512

47264APIN(FOR PUSH ROD)

main90249-08051iEXY10199003-199512

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-18010iEXY10199003-199512

9011908895

main90119-08895

9046816142

main90468-16142

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
