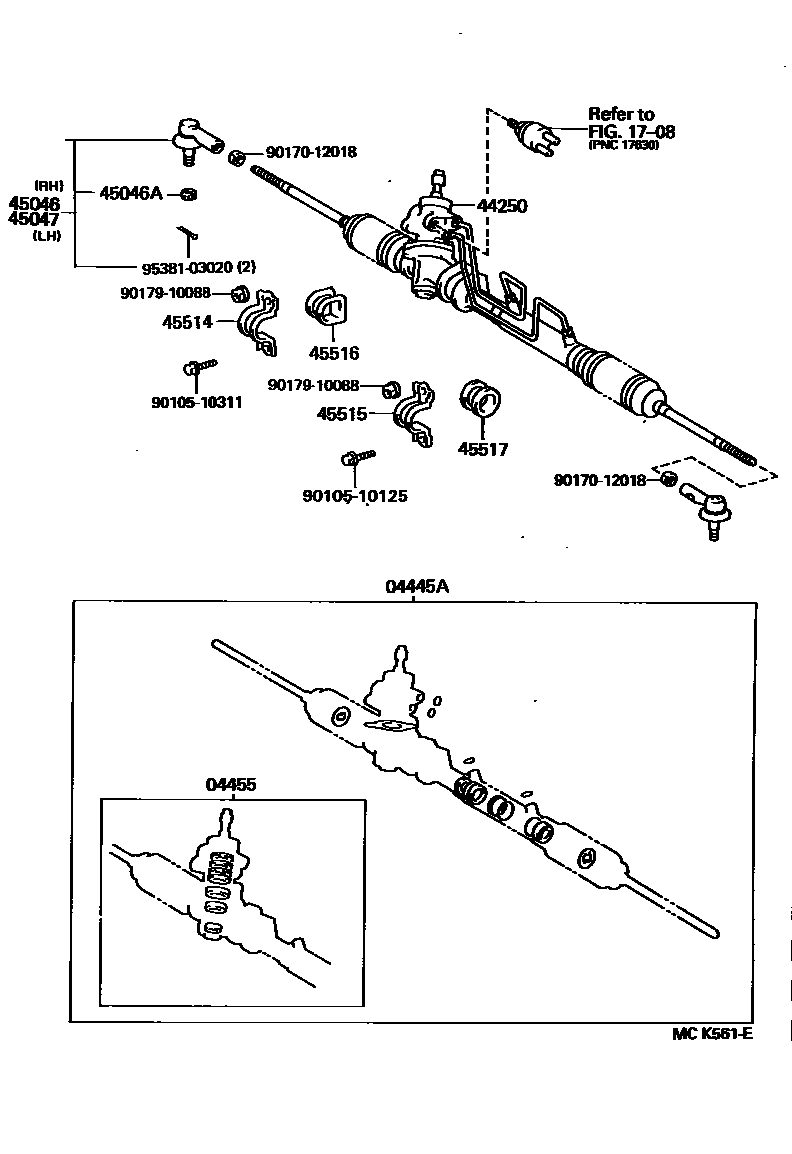

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-10020iEXY10199003-199405

sub04445-10030

main04445-10030iEXY10199405-199512

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-10020iEXY10199003-199405

sub04455-10030

main04455-10030iEXY10199405-199512

1708

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-10110iEXY10199206-199405

sub44250-16151

main44250-16150iEXY10199405-199501

sub44250-10140

main44250-16151iEXY10199501-199512

sub44250-10200

main44250-18010iEXY10199003-199206

sub44250-18011

45046END SUB-ASSY, TIE ROD, RH

main45046-19205iEXY10199003-199101

sub45046-19206

main45046-19206iEXY10199101-199512

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iEXY10199003-199512

45047END SUB-ASSY, TIE ROD, LH

main45046-19205iEXY10199003-199101

sub45046-19206

main45046-19206iEXY10199101-199512

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-10040iEXY10199003-199206

main45514-16060iEXY10199206-199512

sub45514-16061

45515BRACKET, STEERING RACK HOUSING, NO.2

main45514-10040iEXY10199003-199206

main45514-16060iEXY10199206-199512

sub45514-16061

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-16040iEXY10199003-199010

sub45516-20010

main45516-16060iEXY10199010-199512

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-10070iEXY10199003-199512

9010510125

main90105-10125

9010510311

main90105-10311

9017012018

main90170-12018

9017910088

main90179-10088

9538103020

main95381-03020

16 parts on this diagram · 3 diagrams in section
