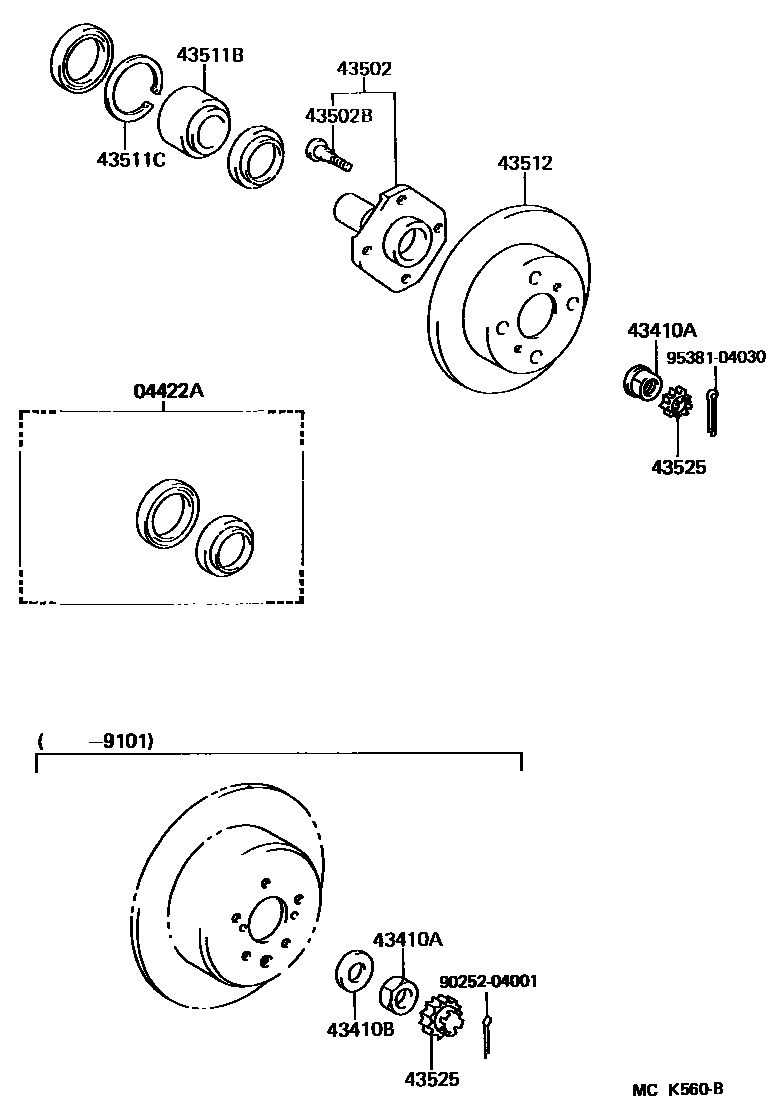

FRONT AXLE HUB

04422ASEAL KIT, FRONT AXLE OIL

main04422-10030iEXY10199003-199512

main04422-10040iEXY10199003-199512

43410ANUT (FOR AXLE HUB & DRIVE SHAFT SETTING)

main90170-19001iEXY10199003-199101

main90179-22020iEXY10199101-199512

43410BWASHER (FOR AXLE HUB & DRIVE SHAFT SETTING)

main90201-20012iEXY10199003-199101

43502HUB SUB-ASSY, FRONT AXLE

main43502-10030iEXY10199003-199201

main43502-10040iEXY10199201-199512

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iEXY10199003-199201

main90942-02049iEXY10199201-199512

43511BBEARING (FOR FRONT AXLE HUB)

main90369-35029iEXY10199003-199512

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-75003iEXY10199003-199512

43512DISC, FRONT

main43512-10110iEXY10199003-199201

main43512-10170iEXY10199201-199512

sub43512-16130

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-16010iEXY10199003-199101

main43525-20030iEXY10199101-199512

9025204001

main90252-04001

9538104030

main95381-04030

11 parts on this diagram · 1 diagram in section
